D-Link DCS-930L Setup Guide

D-Link Technical Support – How to record using mydlink camera's. Page 9 of 17

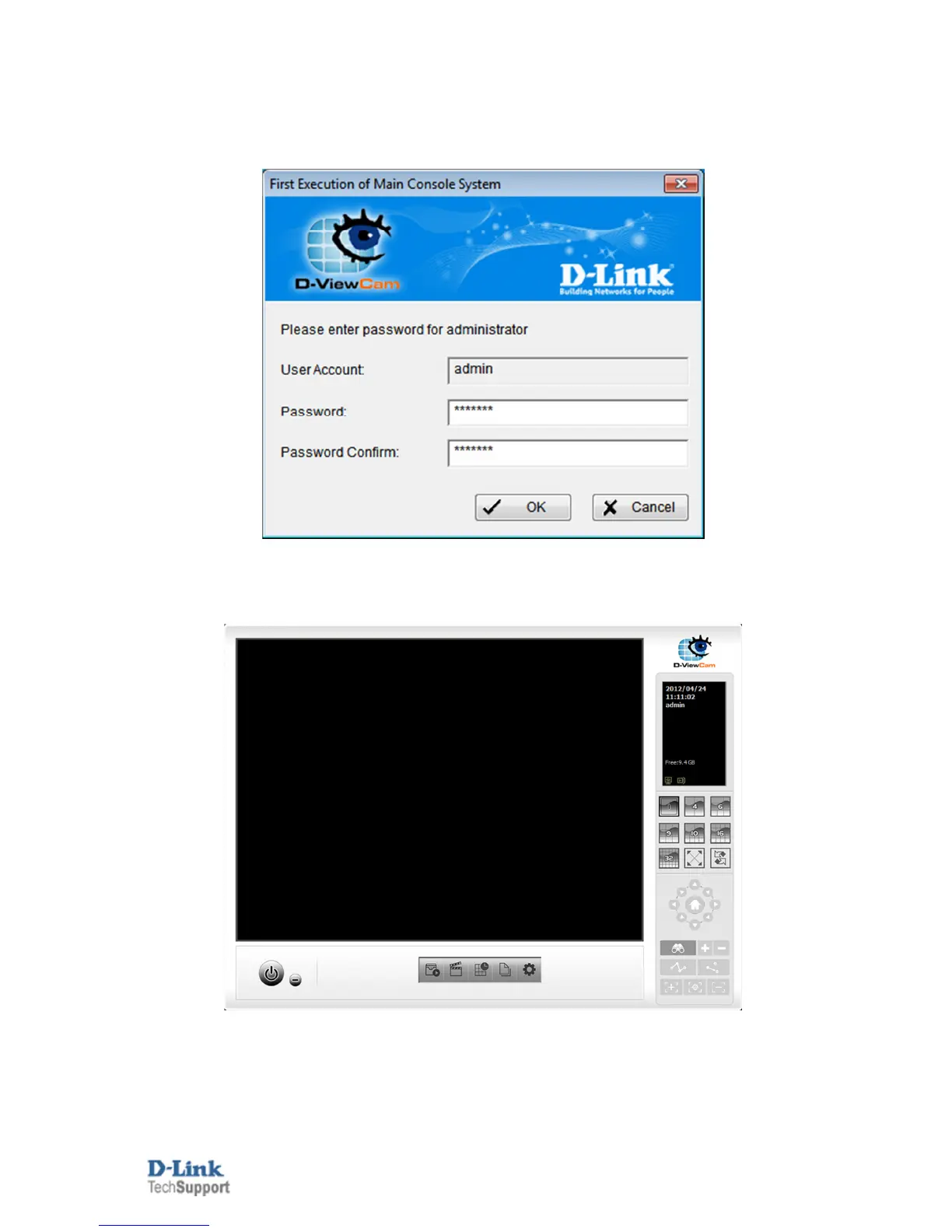

18. On first execution of the Main Console, you will need to assign a password for the
administrator of the Main Console System. Please type in a Password and confirm the
Password again that you would like to secure your Main Console with. Click on the OK
button:
19. The D-Link D-ViewCam Main Console will look similar the below illustration:
NOTE: If you would like to understand or have a better idea on the General User Interface
I would advise consulting the D-Link D-ViewCam User Manual. This is provided on the
camera's Installation CD-ROM, please browse the contents of your optical drive. It's
located in the 'Manual' folder. D-Link D-ViewCam is also known as 'DCS-100'.

D-Link DCS-930L Specifications

General

Maximum resolution	640 x 480 pixels
White balance	Auto
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Security algorithms	WEP, WPA, WPA2
Video motion detection	Yes
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DONS, SMTP, FTP, HTTP, PPPoE, UPnP, LLTD
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	-
Power consumption (typical)	2 W
Ethernet LAN (RJ-45) ports	1
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Dimensions (WxDxH)	27.2 x 60 x 96 mm
Compatible operating systems	Windows XP / Vista / 7
Flash memory	4 MB
Internal memory	32 MB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Form factor	Cube

Weight and Dimensions

Weight	76.9 g
