D-Link DCS-932L Installation Guide

D-Link Technical Support – How to install the DCS-932L. Page 13 of 16

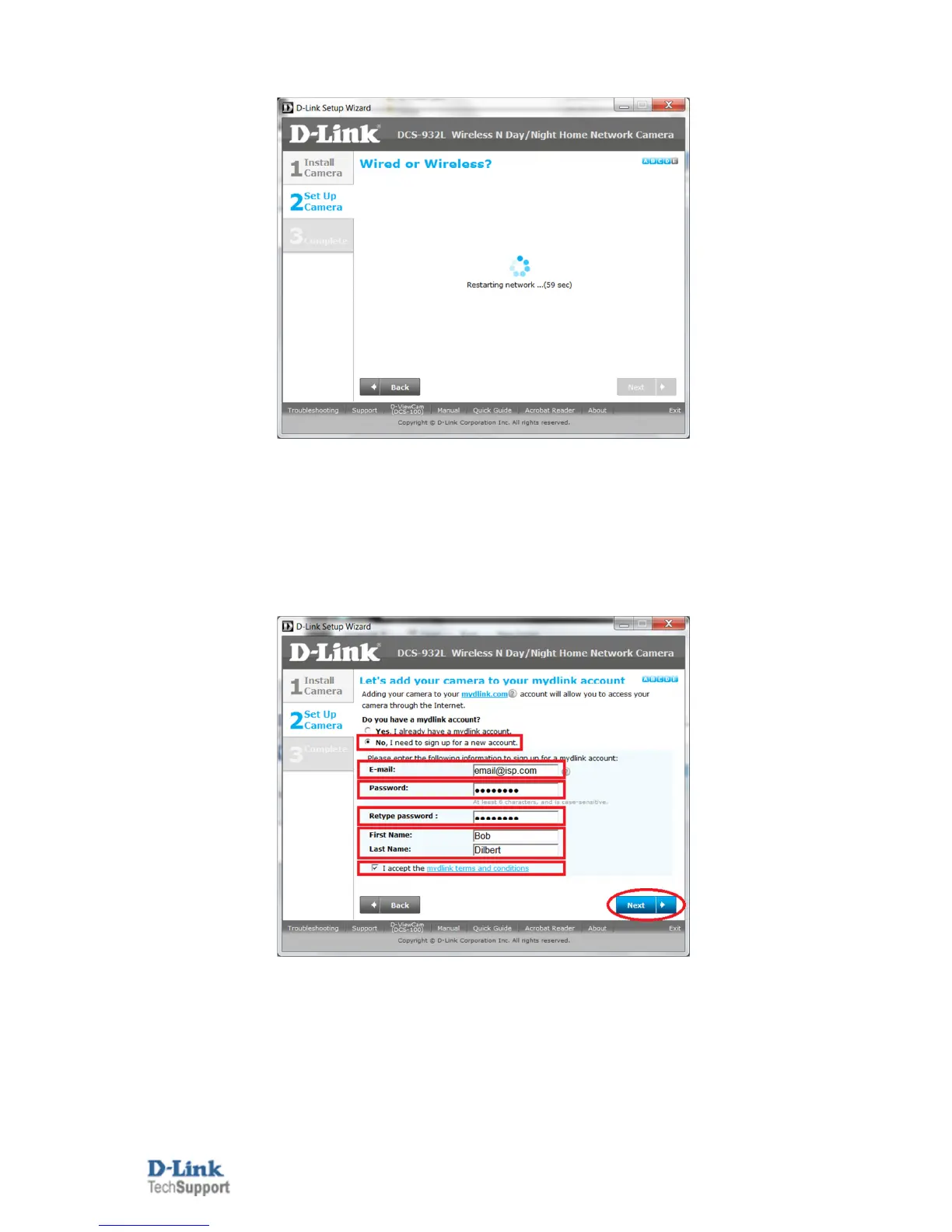

18. Patiently wait for the DCS-932L to restart and update its device information:
19. It is likely that you don't already have a mydlink account, so let's create one (if you already have a
mydlink account, refer to Step 19a):
You will need to fill in the below requirements, such as your Email / the Password you want to assign to your
mydlink account / First name and last name. You will also need to agree to the mydlink terms and
conditions, then click on Next.
An example is below:

D-Link DCS-932L Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	M-JPEG
Supported graphics resolutions	640 x 480 (VGA)
White balance	Auto
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Digital zoom	4 x
Optical zoom	- x
Security algorithms	WEP, WPA, WPA2
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP, LLTD
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	2 W
Certification	- FCC - B - IC - C-Tick - CE
Placement supported	Indoor
Connectivity technology	Wired & Wireless
LED type	IR
Dimensions (WxDxH)	65.8 x 65 x 126 mm
Minimum RAM	128 MB
Minimum processor	1.3 GHz
Mac operating systems supported	Mac OS X 10.5 Leopard
Cables included	LAN (RJ-45)
Built-in HDD	No
Flash memory	4 MB
Internal memory	32 MB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Product color	White
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	60 mm
Width	27.2 mm
Height	96 mm
Weight	76.9 g
