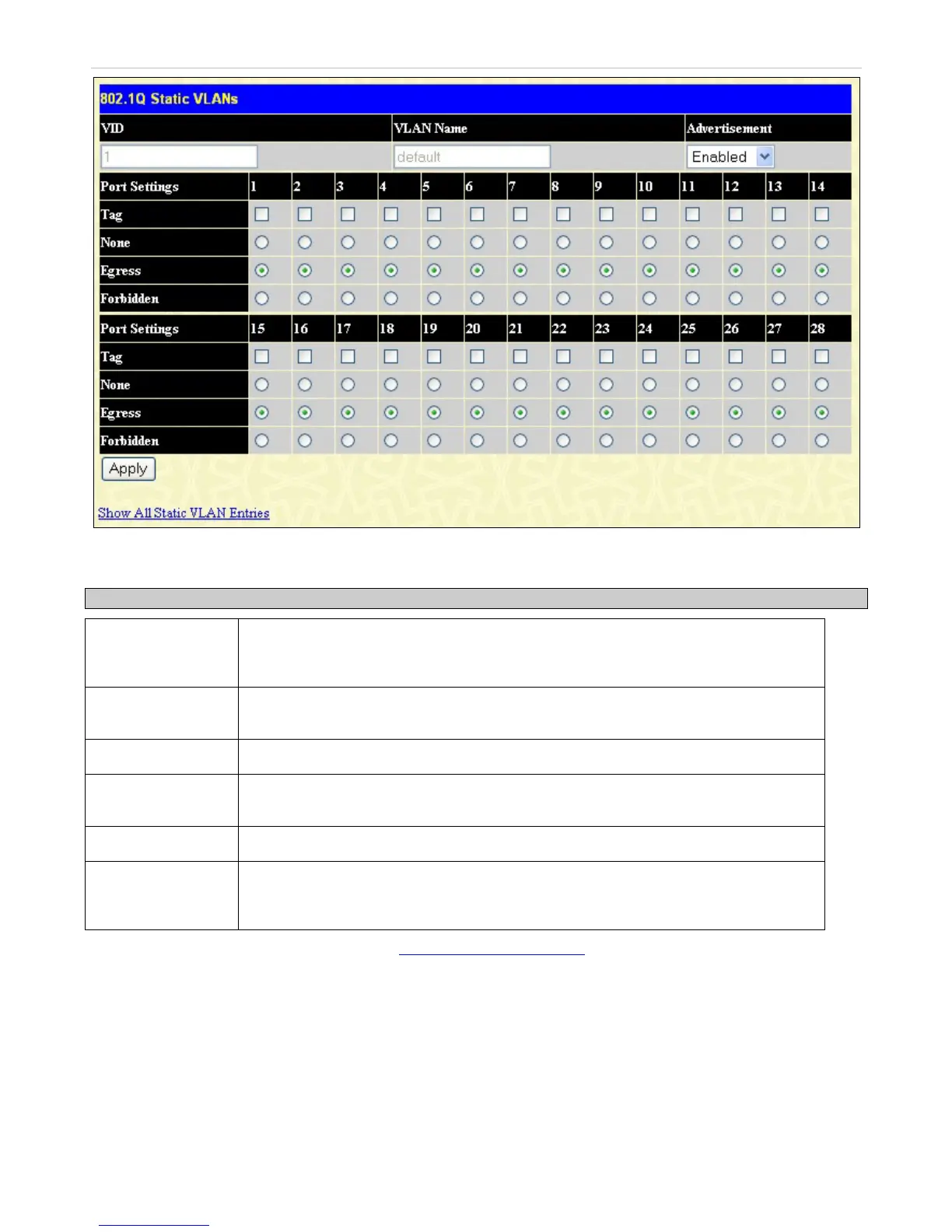

Figure 7- 6. 802.1Q Static VLANs window - Modify
The following fields can then be set in either the Add or Modify 802.1Q Static VLANs windows:
Parameter Description
VID
Allows the entry of a VLAN ID in the Add dialog box, or displays the VLAN ID of an
existing VLAN in the Modify dialog box. VLANs can be identified by either the VID or the
VLAN name.
VLAN Name
Allows the entry of a name for the new VLAN in the Add dialog box, or for editing the
VLAN name in the Modify dialog box.
Port Settings
Allows an individual port to be specified as member of a VLAN.
Tag
Specifies the port as either 802.1Q tagging or 802.1Q untagged. Checking the box will
designate the port as Tagged.
None
Allows an individual port to be specified as a non-VLAN member.
Egress
Select this to specify the port as a static member of the VLAN. Egress member ports are
ports that will be transmitting traffic for the VLAN. These ports can be either tagged or
untagged.
Click Apply to implement changes made. Click the Show All Static VLAN Entries link to return to the 802.1Q Static VLANs
window.
