LED Indicators

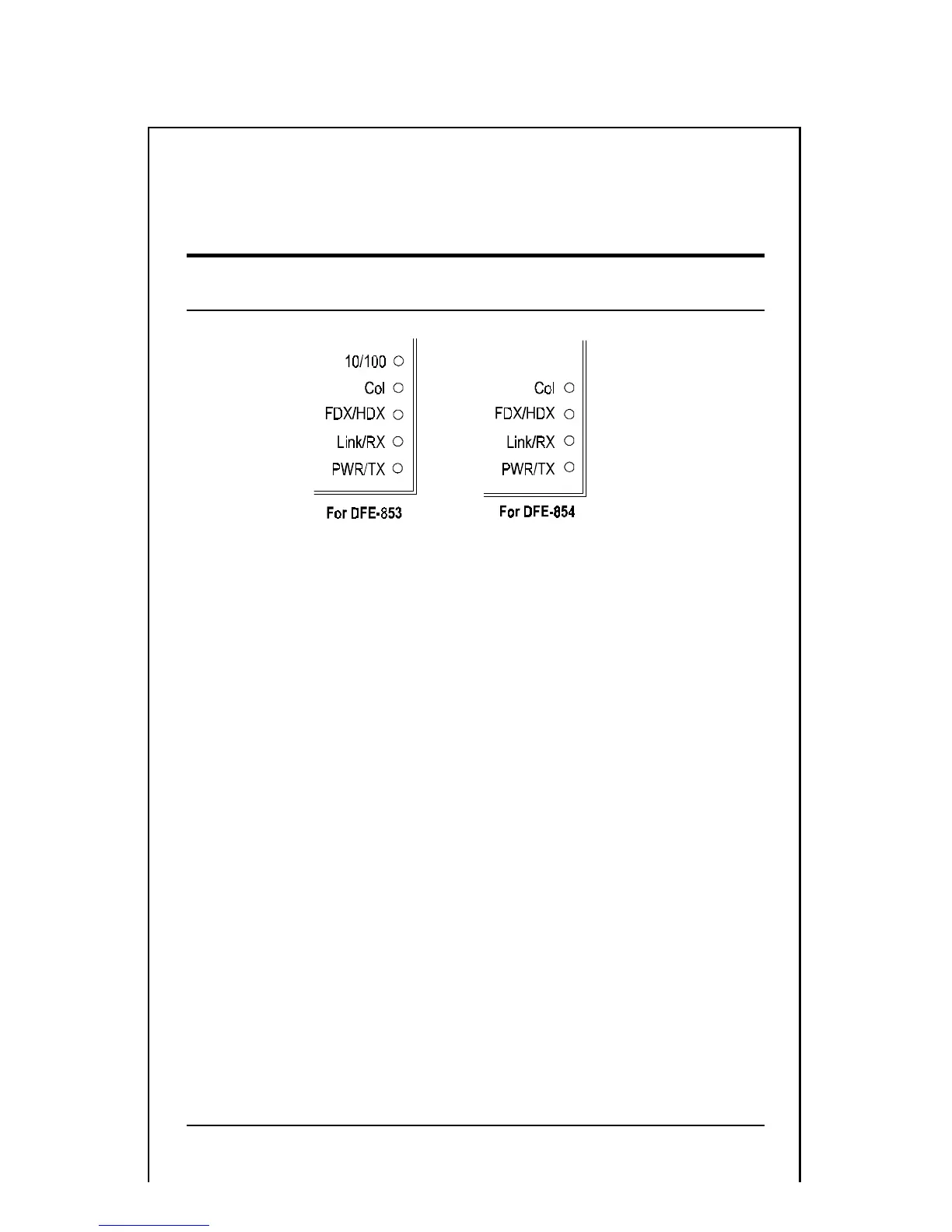

The DFE-853 and DFE-854 transceivers feature the following LED
indicators:
1.
SPD Indicator (green) - for DFE-853 only
Steady green when transmission is at 100Mbps. It is off when
transmission is at 10Mbps.
Below are indicators for both DFE-853 and DFE-854.
2.
Col Indicator (yellow)
A light up to indicate a collision has occurred.
3.
FDX/HDX Indicator (green)
Steady green indicates full-duplex selected.
Dark indicates half-duplex selected.
4.
Link/Rx Indicator (green)
Steady green indicates that a valid link exists.
Flashing green indicates that the transceiver is receiving.
5.
PWR/Tx Indicator(green)
Lights when power is on.
Blinks when device is transmitting.
