User Interface(continued)

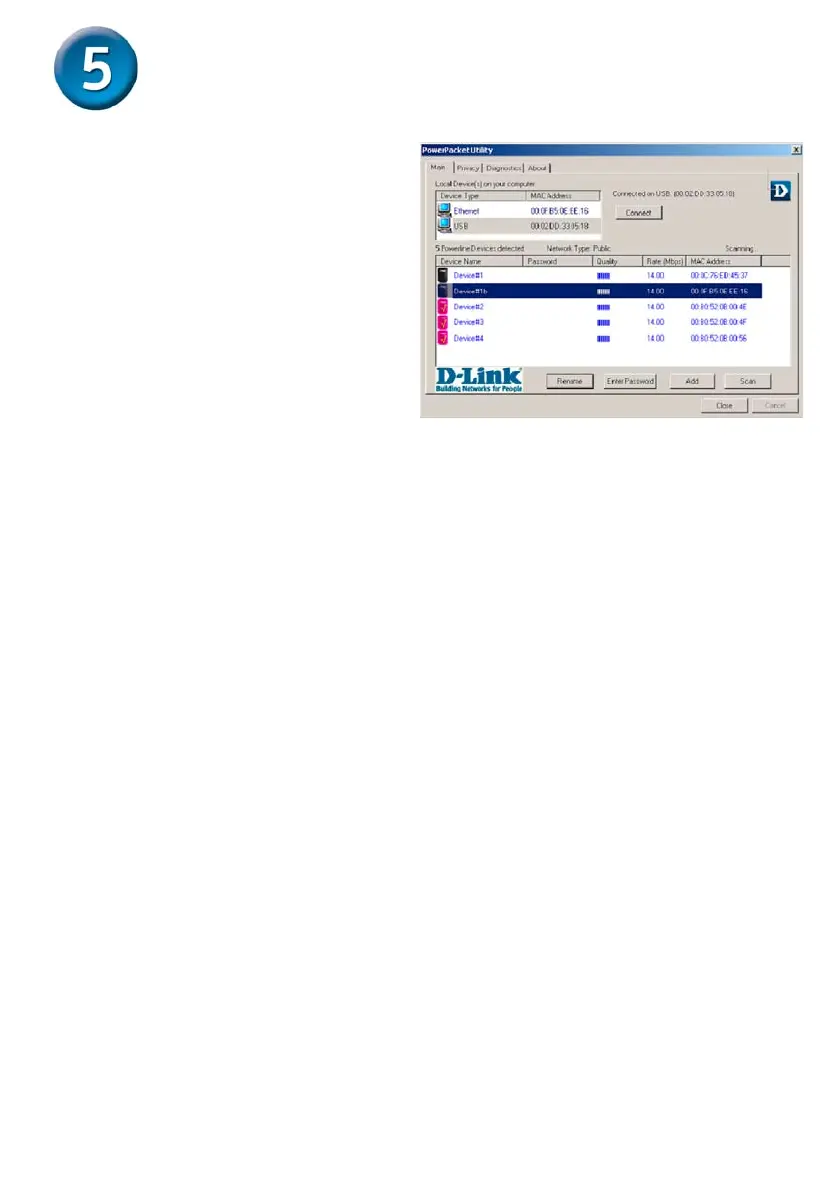

Figure 2 , illustrates the presence
of two local HomePlug devices
connected locally to the computer.
The lower panel displays all
the HomePlug remote devices,
discovered on the current logical
network. The total number of remote
devices connected on the same
network can be found on top of the
remote device panel. The Network
type (Public or Private) is also
displayed based on the network
status of the local device. The scan
status option is displayed on the
top right corner above the Remote
devices panel showing whether the
auto scan functionality is turned ON
or OFF. The following information is
displayed for all devices that appear
in the lower panel.
Figure 2: Multiple Local Device Connection
Device Name column shows the default device name, which may be
user re-dened. A user can change the name by either
using the rename button or by clicking on the name and
editing in-place.
MAC Address column shows the Remote device’s MAC address.
Password column by default is blank and ‘Enter Password’
button can be used to enter it.
