Section 1 - Product Overview
Hardware Overview

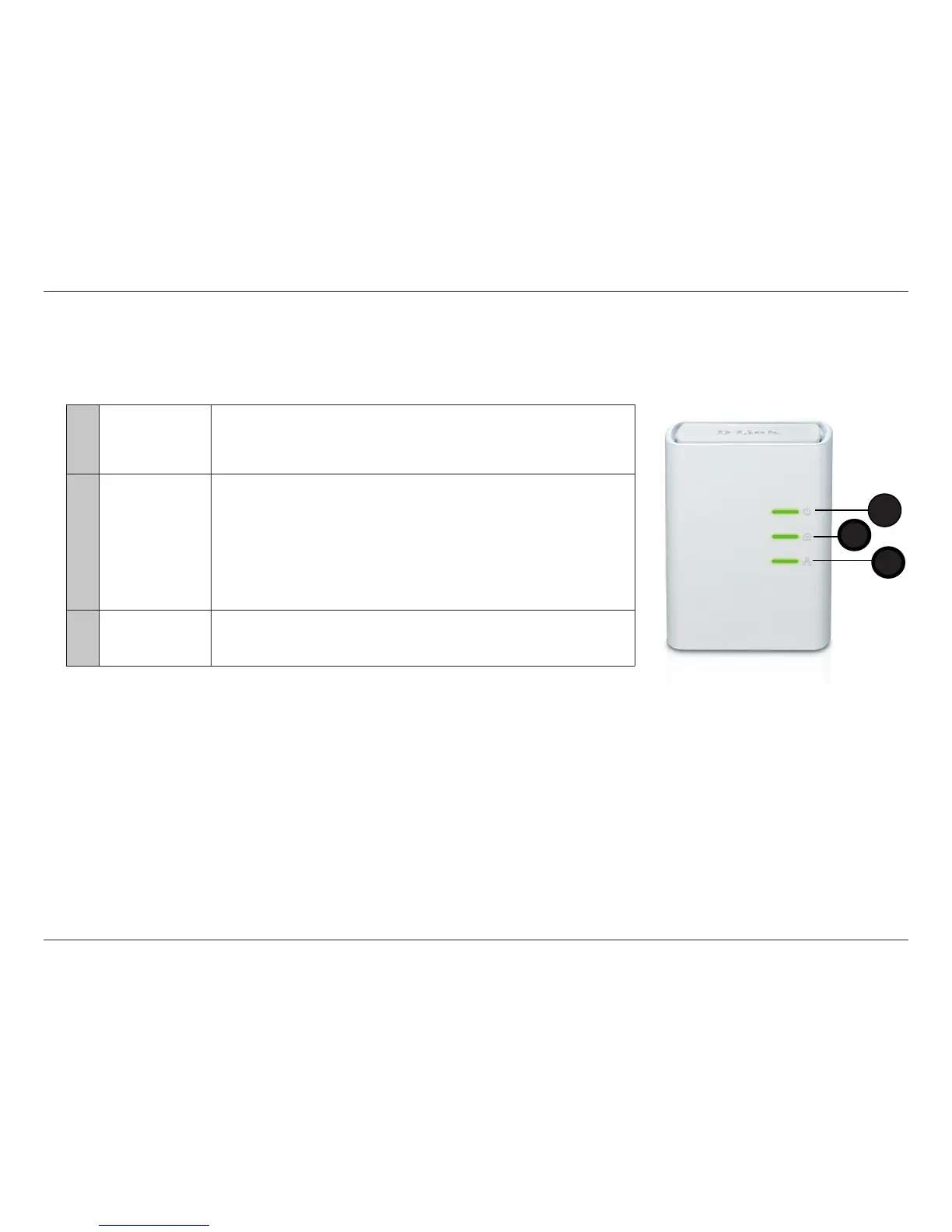

LEDs
1
Power LED
• A solid light indicates that the device is receiving electrical power.
• A blinking light indicates that the device is setting itself up after reset or security
button was pressed or power saving mode enabled.
• When the light is O, The device is not receiving electrical power.
2
PowerLine LED
• Solid. The device is connected to a PowerLine network.
• Blinking. The device is transmitting data.
• O. The device has not found any other compatible PowerLine
devices using the same encryption key.
The color indicates the PowerLine link rate:
• Green. The PowerLine link rate or quality is the best.
• Amber. The PowerLine link rate or quality is better.
• Red. The PowerLine link rate or quality is good.
3
Ethernet LED
• Solid. The Ethernet port is linked but there is no data trac.
• Blinking. The device is transmitting data.
• O. There is no Ethernet connection.
