Section 1 - Product Overview

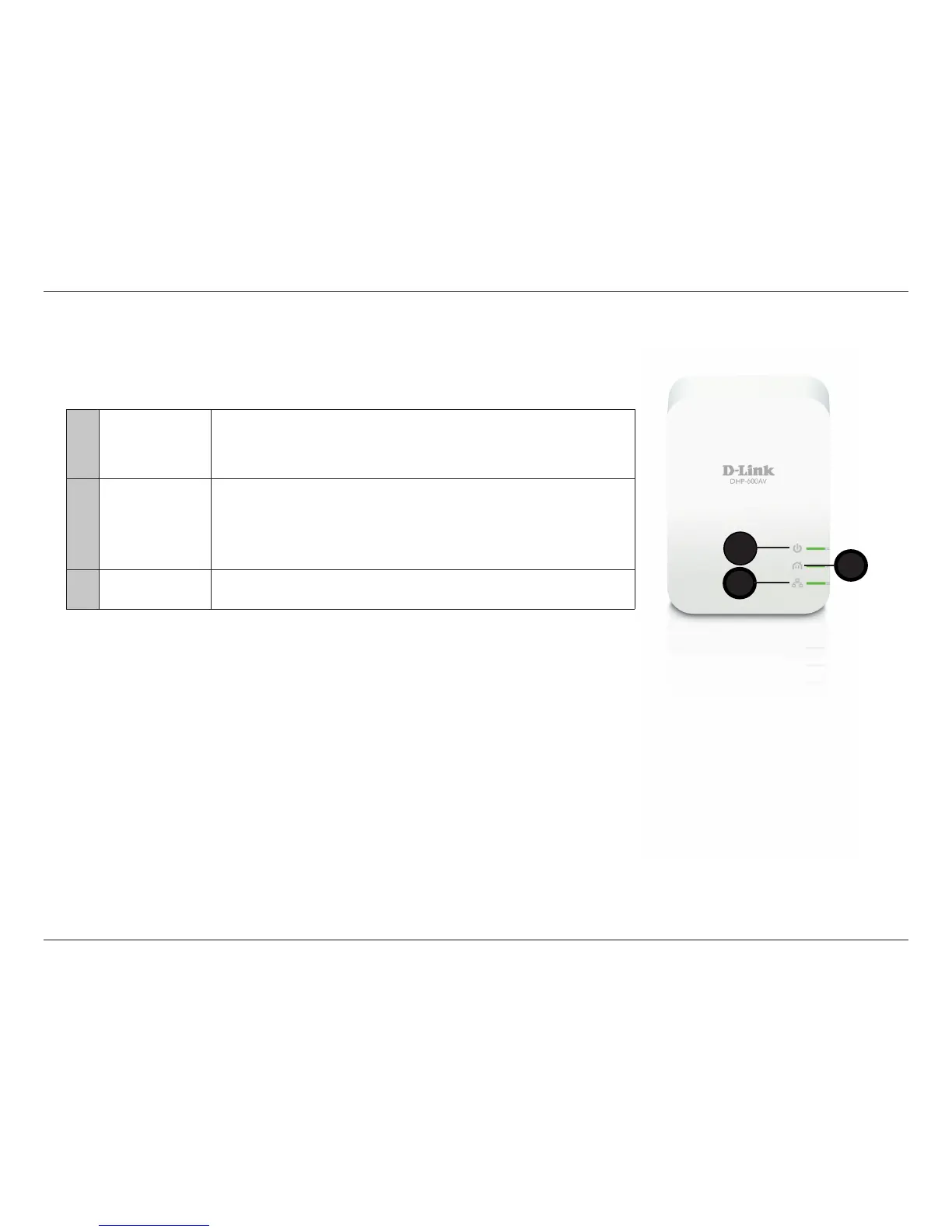

Hardware Overview
LEDs
1
Power LED
• Solid Green: The device is receiving electrical power.
• Blinking Green (1time/1 second): The Simple Connect button was pressed.
• Blinking Green (1 time/2 seconds): The device is in Power Saving Mode
• O: The device is not receiving electrical power.
2
PowerLine LED
• Solid: The device is connected to a PowerLine network.
• O: The link is not established with another PowerLine device.
The color indicates the PowerLine link rate:
• Green: The PowerLine link rate is best.
• Amber: The PowerLine link rate is better.
• Red: The PowerLine link rate is good.
3
Ethernet LED
• Solid Green: The Ethernet port is linked.
• O: There is no Ethernet connection.
