2
Connecting The DI-604 Broadband
Router To Your Network

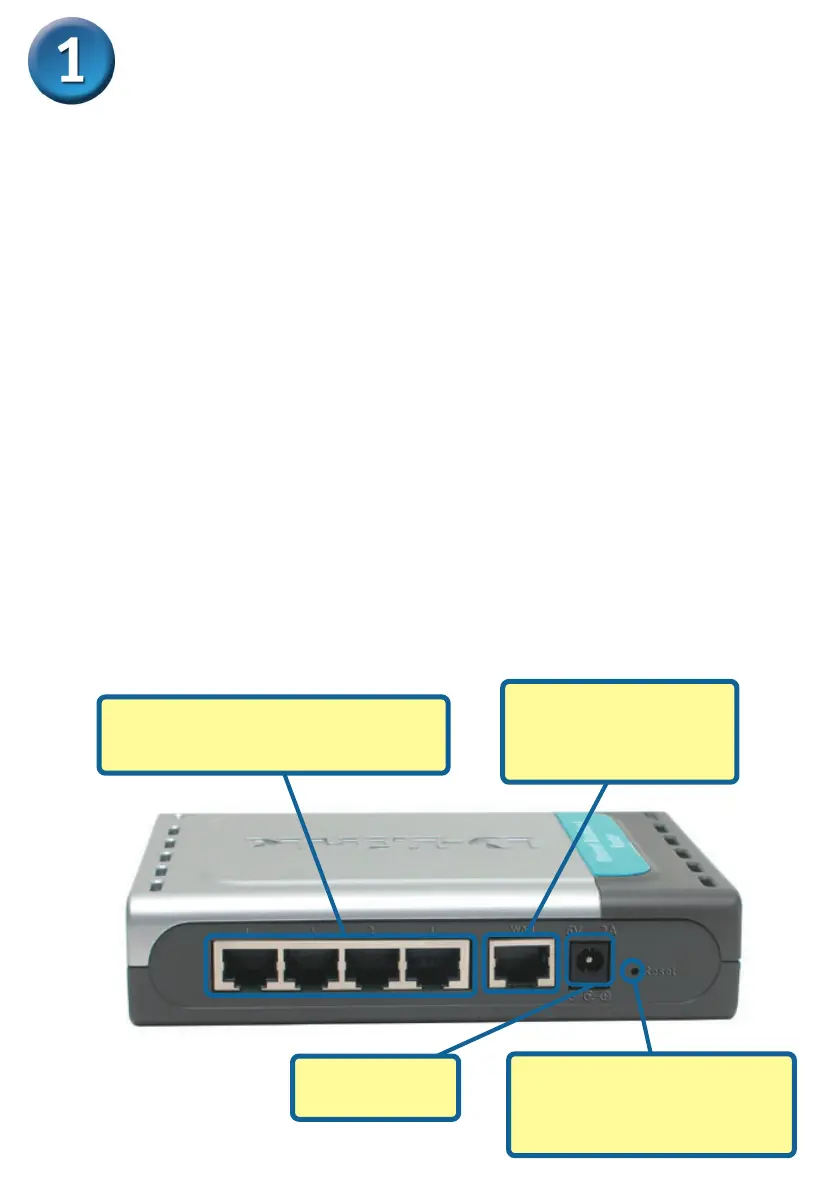

C. LAN PORTS
These are the connections for Ethernet
cables to Ethernet enabled computers.
Reset Button
Pressing this button restores
the Router to its original factory
default settings.
A. First, connect the power adapter to the receptor at the back panel of the DI-604
and then plug the other end of the power adapter to a wall outlet or power strip.
The Power LED will turn ON to indicate proper operation.
B. 1. Power off your Cable or DSL modem; some devices may not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-604 should
be powered on and the Cable / DSL modem should be turned off.
2. Cable / DSL modem (Power Off) – DI-604 (Power On)
Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL
modem. After the Ethernet cable is securely connected, power on the Cable /
DSL modem by turning on the unit or plugging in the power adapter.
3. Cable / DSL modem (Power On) – DI-604 (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on the back panel
of the DI-604. The WAN LED light will illuminate to indicate proper connection. If
the WAN LED is not illuminated, please go back and step B and repeat its
instructions.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-604 and an
available Ethernet port on the network adapter in the computer you will use to
configure the DI-604. The LED light for LAN Port 1 will illuminate to indicate
proper connection. (Note: The LAN Ports on the DI-604 are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover-Ethernet cable to the LAN
Ports.)
B. WAN PORT
This is for the connection
of an Ethernet cable to
the Cable or DSL modem
A. Receptor for
Power Adapter.
