D-Link DI-624 Owner's Manual

25
Using the Configuration Menu

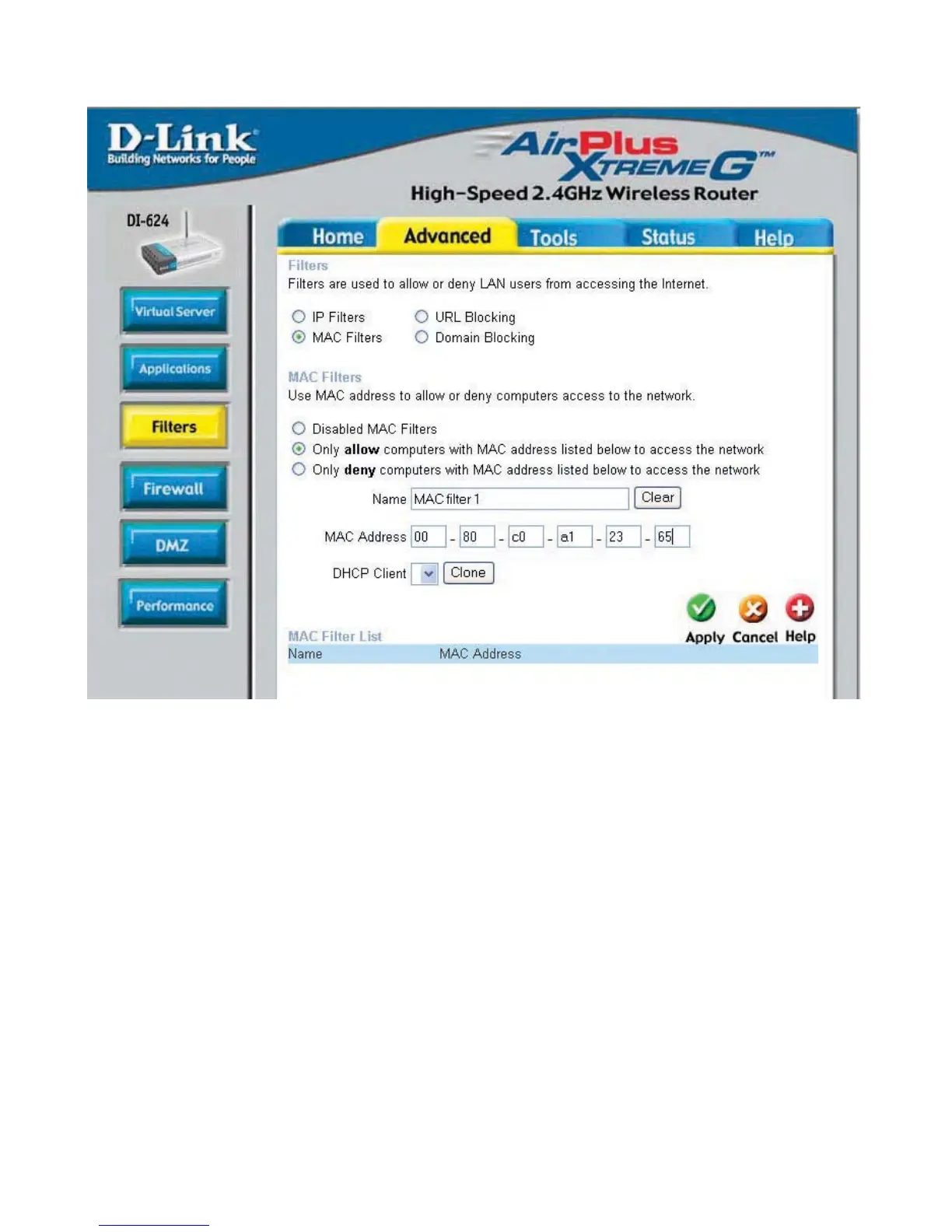

Advanced > Filters > MAC Filters
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network)
computers by their MAC addresses from accessing the Network. You can either manually
add a MAC address or select the MAC address from the list of clients that are currently
connected to the Broadband Router.
MAC Filters-
Choose Disable MAC filters; allow MAC addresses listed be-
low; or deny MAC addresses listed below.
Filters-
Name-
Enter the name here.
MAC Address-
Enter the MAC Address.
DHCP Client-
Select a DHCP client from the pull-down list; click Clone to
copy that MAC Address.
Select the filter you wish to use; in this case, MAC filters was
chosen.
(continued)

D-Link DI-624 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
Wireless Data Rates	Up to 54 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Firewall	SPI
VPN Pass-through	IPSec/PPTP
