D-Link DI-624 Owner's Manual

48
Networking Basics

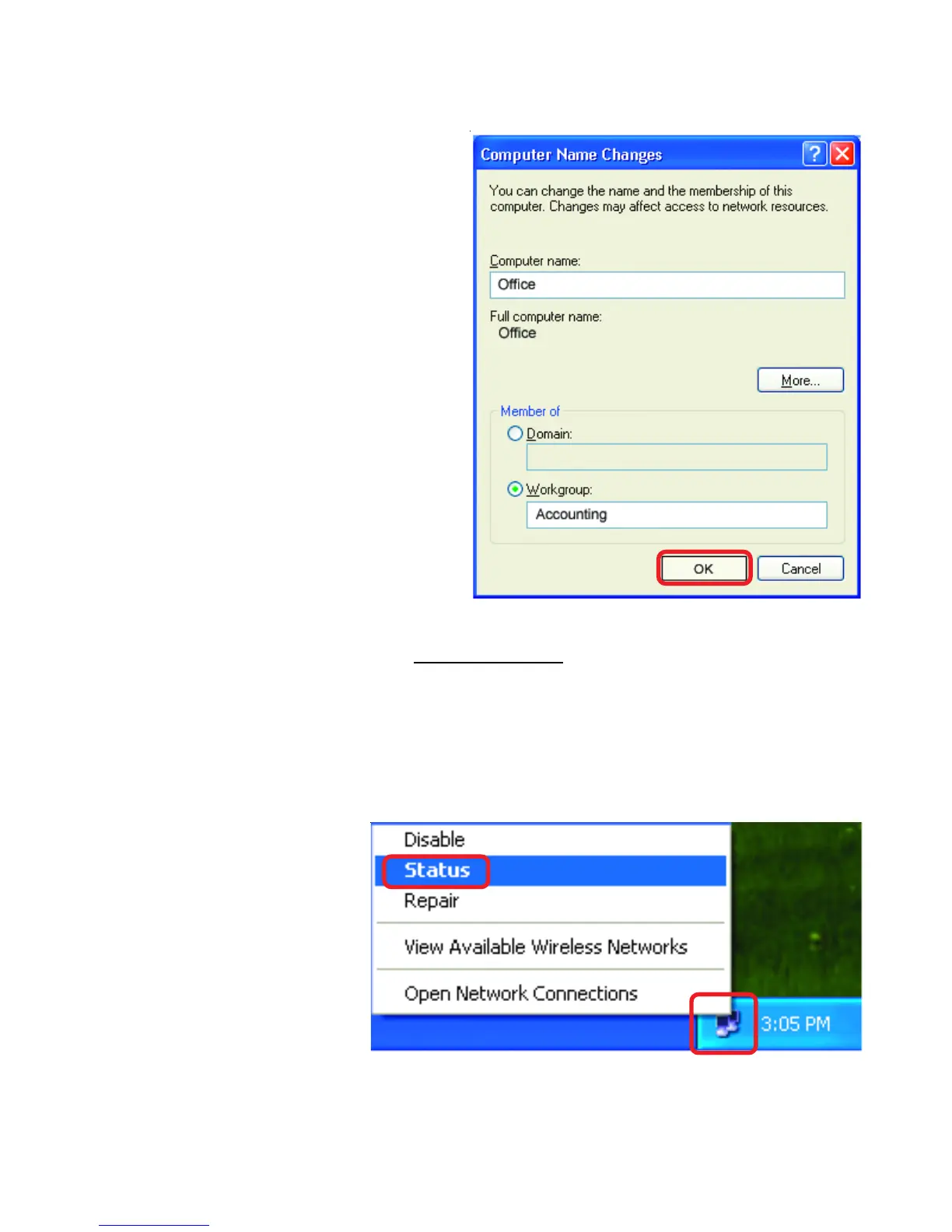

Naming your Computer

In this window, enter the
Computer name.
Select Workgroup and enter
the name of the Workgroup.
All computers on your network
must have the same
Workgroup name.
Click OK.



Checking the IP Address in Windows XP
The wireless adapter-equipped computers in your network must be in the same IP Ad-
dress range (see Getting Started in this manual for a definition of IP Address Range.) To
check on the IP Address of the adapter, please do the following:
Right-click on the
Local Area
Connection icon
in the task bar.
Click on Status.



D-Link DI-624 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
Wireless Data Rates	Up to 54 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Firewall	SPI
VPN Pass-through	IPSec/PPTP
