Connecting The DI-634M Wireless
Router To Your Network
A.
First, connect the power adapter to the receptor at the back panel of the
DI-634M and then plug the other end of the power adapter to a wall outlet or power
strip. The Power LED will turn ON to indicate proper operation.
B. 1. Power off your Cable or DSL modem; some devices may not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-634M should
be powered on and the Cable / DSL modem should be turned off.
2. Cable / DSL modem (Power Off) – DI-634M (Power On)
Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.
After the Ethernet cable is securely connected, power on the Cable / DSL modem
by turning on the unit or plugging in the power adapter.
3. Cable / DSL modem (Power On) – DI-634M (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on the back panel of
the DI-634M. The WAN LED light will illuminate to indicate proper connection. If the
WAN LED is not illuminated, please go back to step B1 and repeat the instructions.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-634M and
an available Ethernet port on the network adapter in the computer you will use
to configure the DI-634M. The LED light for LAN Port 1 will illuminate to indicate
proper connection. (Note: The LAN Ports on the DI-634M are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover Ethernet cable to the LAN
Ports.)
D. Computers equipped with 802.11g wireless adapters will be able to connect to the
DI-634M. The DWL-G650M 108G MIMO Wireless Cardbus Adapter and the DWL-
G520 AirPlus Xtreme G Wireless PCI Adapter will be able to connect out of the box
with the router using their default wireless settings.

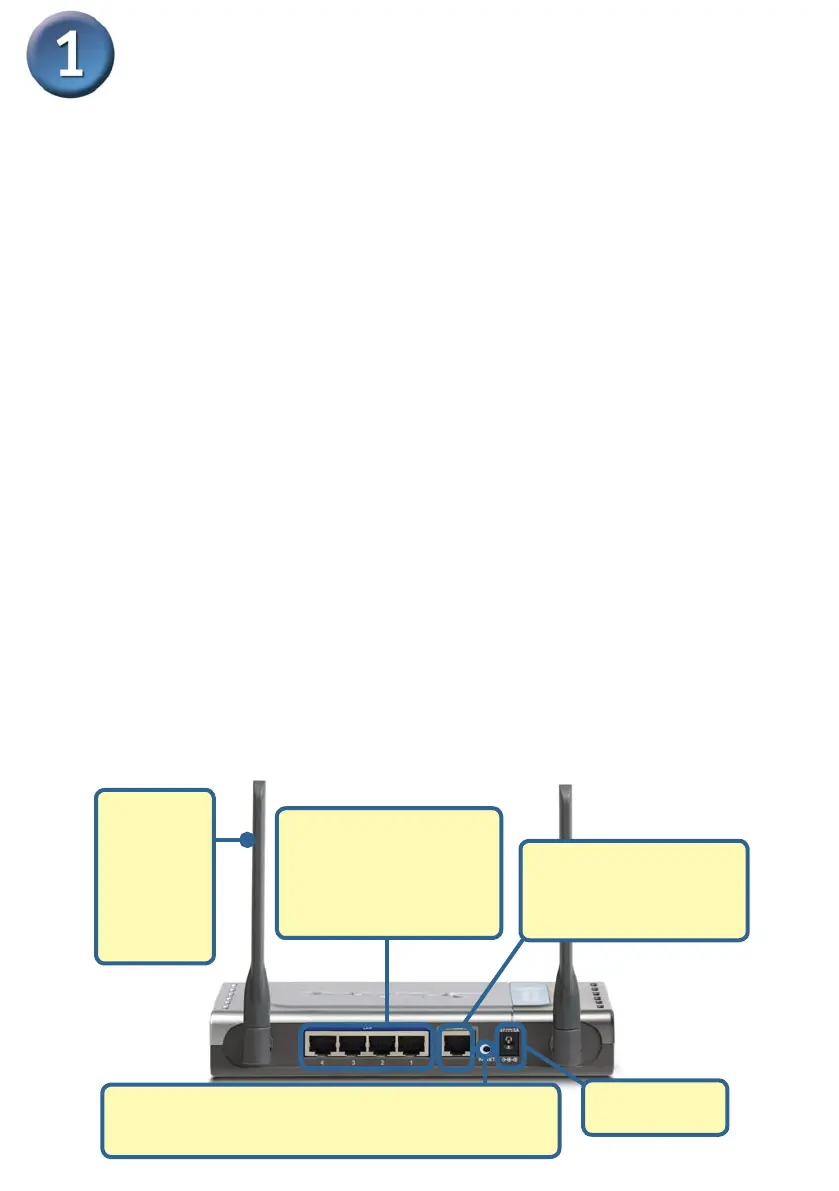

B. WAN PORT
This is for the connection
of an Ethernet cable to the
Cable or DSL modem
D. Antennas
Used to
wirelessly
connect to
802.11g or
802.11b
adapters.
C. LAN PORTS
These are the
connections for Ethernet
cables to Ethernet
enabled computers.
A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores the Router to its original
factory default settings.
