D-Link DI-804HV Configuration Guide

DI-804HV with Windows 2000/XP IPsec VPN Client Configuration Guide Page 2
DI-804HV Configuration

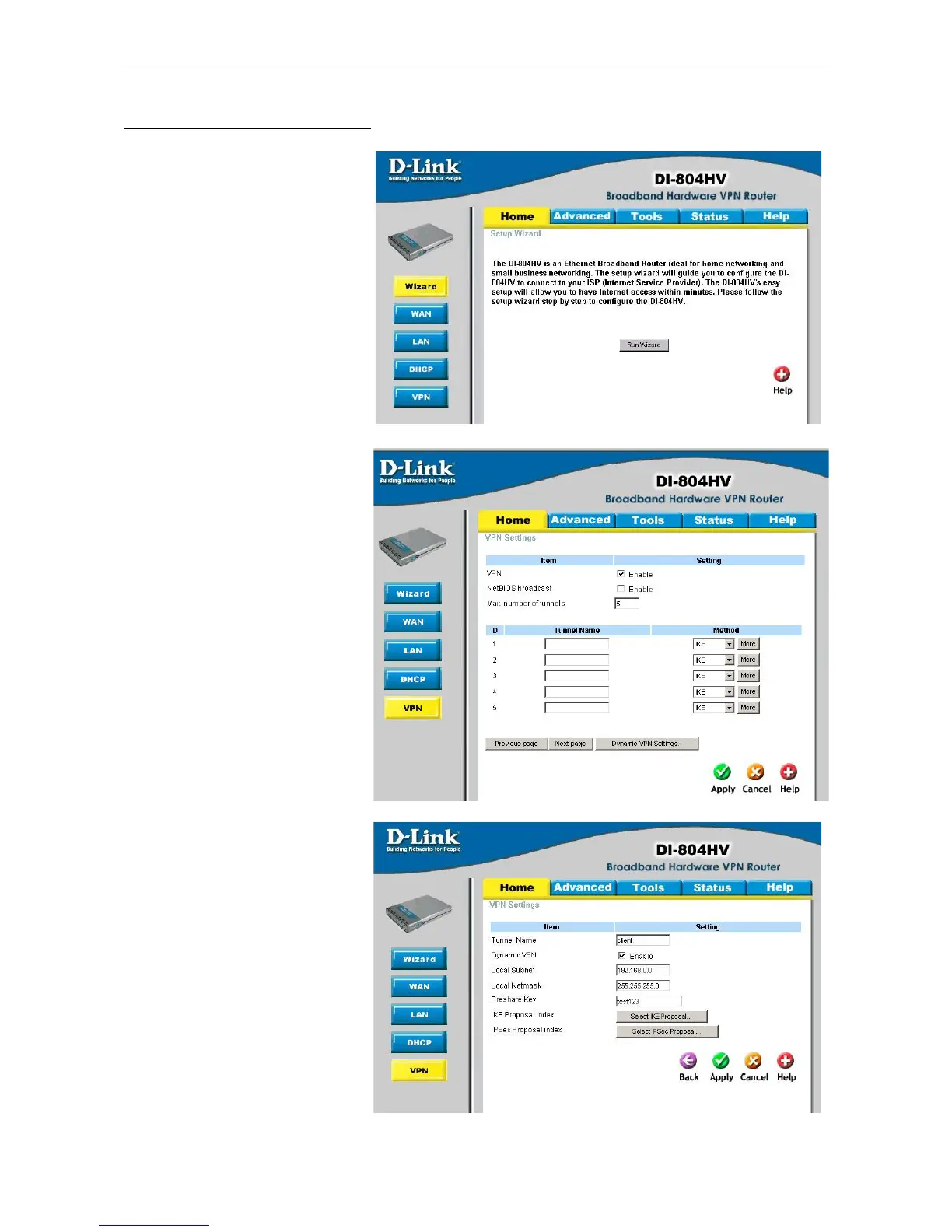

1. Type in the IP address of
the DI-804HV in the
address bar of the browser.
Log-in using the default
username and password.
2. Click on VPN on the left-
hand side menu. Make
sure that VPN is checked
and enter 5 for maximum
number of tunnels. Click
on ‘Apply’ and then
‘Restart’ to save the
settings. Log-in again and
then Click on HomeÆ VPNÆ
‘Dynamic VPN Settings’.
3. Enter the following details
for the Dynamic VPN
connection. Enter the
Tunnel name (client).
Enter the Local
Subnet/Netmask
(192.168.0.0/255.255.255.
0). Enter the pre-share
key. Click on ‘Apply’ and
then ‘Restart’ to save the
settings. Log-in again and
come back to this screen.
Now click on ‘Select IKE
Proposal’.
