D-Link DI-804HV Configuration Guide

DI-804HV with Windows 2000/XP IPsec VPN Client Configuration Guide Page 8

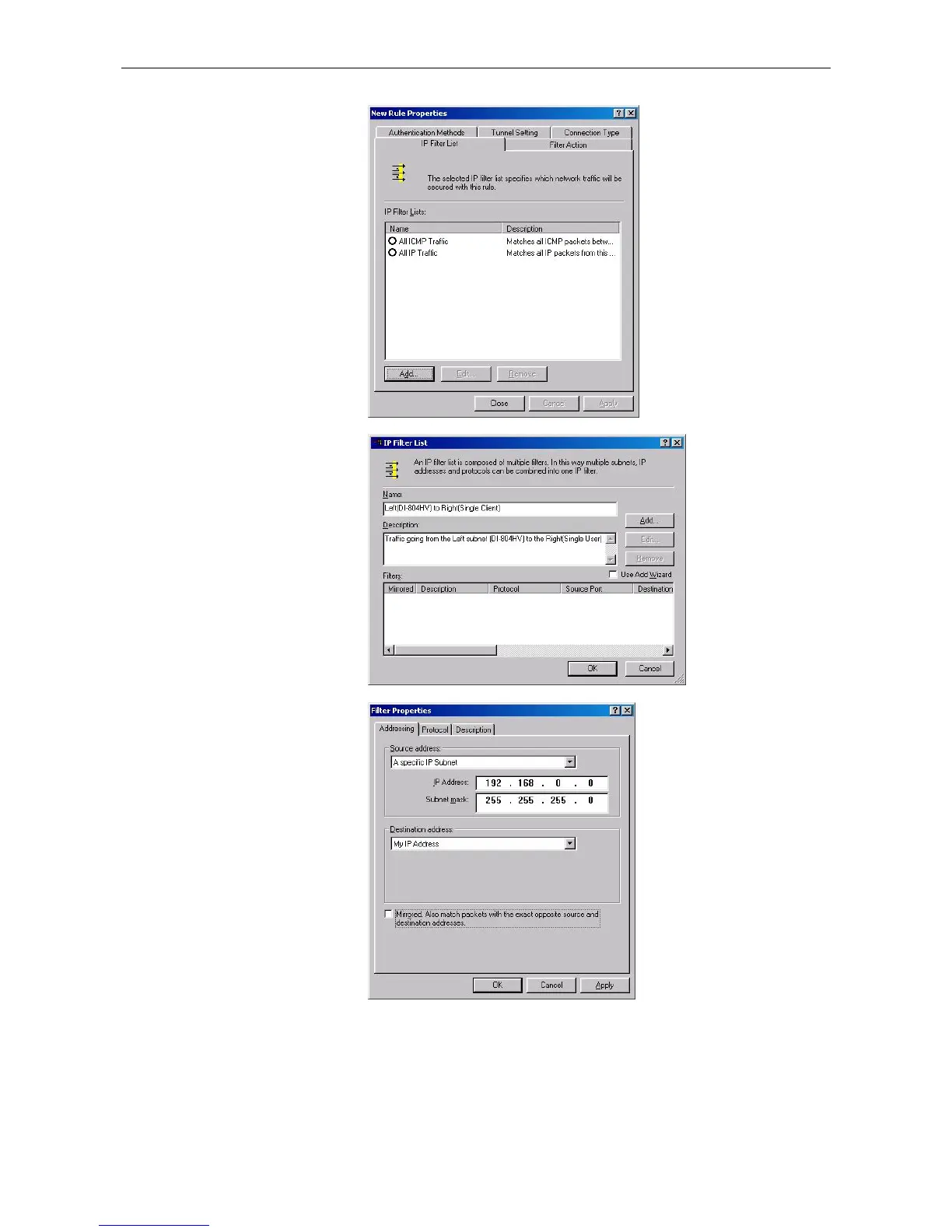

14. Click on ‘Add’ under IP
Filter List.
15. Enter the name and the
description for the New IP
Filter List. Uncheck the
‘Use Add Wizard’. Click on
‘Add’.
16. Select ‘A specific IP subnet’
for the ‘Source address’
and enter the Internal LAN
range on the DI-804HV
side. Select ‘My IP
Address’ for the
‘Destination address’.
Uncheck the ‘Mirrored….’
Option at the bottom of
the screen. Click ‘OK’.
