DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Connection of Multimedia Devices
The Multimedia Devices Connection Wizard helps to configure LAN ports or available wireless
interfaces of the router for connecting additional devices, for example, an IPTV set-top box or IP
phone. Contact your ISP to clarify if you need to configure DIR-815/AC in order to use these
devices.
To start the Wizard, on the Home page, select the Connection of Multimedia Devices section.
If you need to select a port or wireless interface in order to use an additional device, left-click the
relevant element in the LAN section (the selected element will be marked with a frame). Then click
the APPLY button.

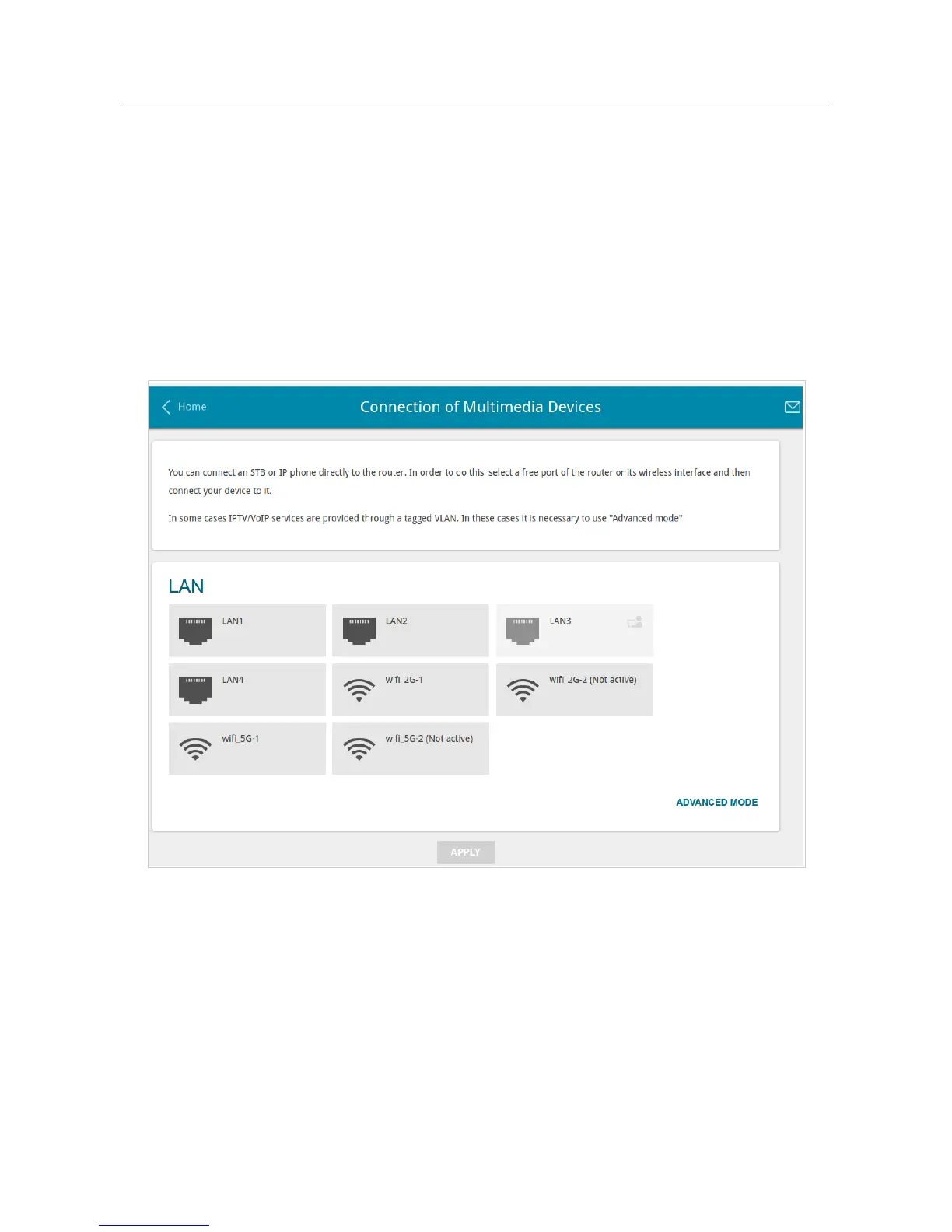

Figure 48. The Multimedia Devices Connection Wizard. The simple mode.
Page 65 of 221
