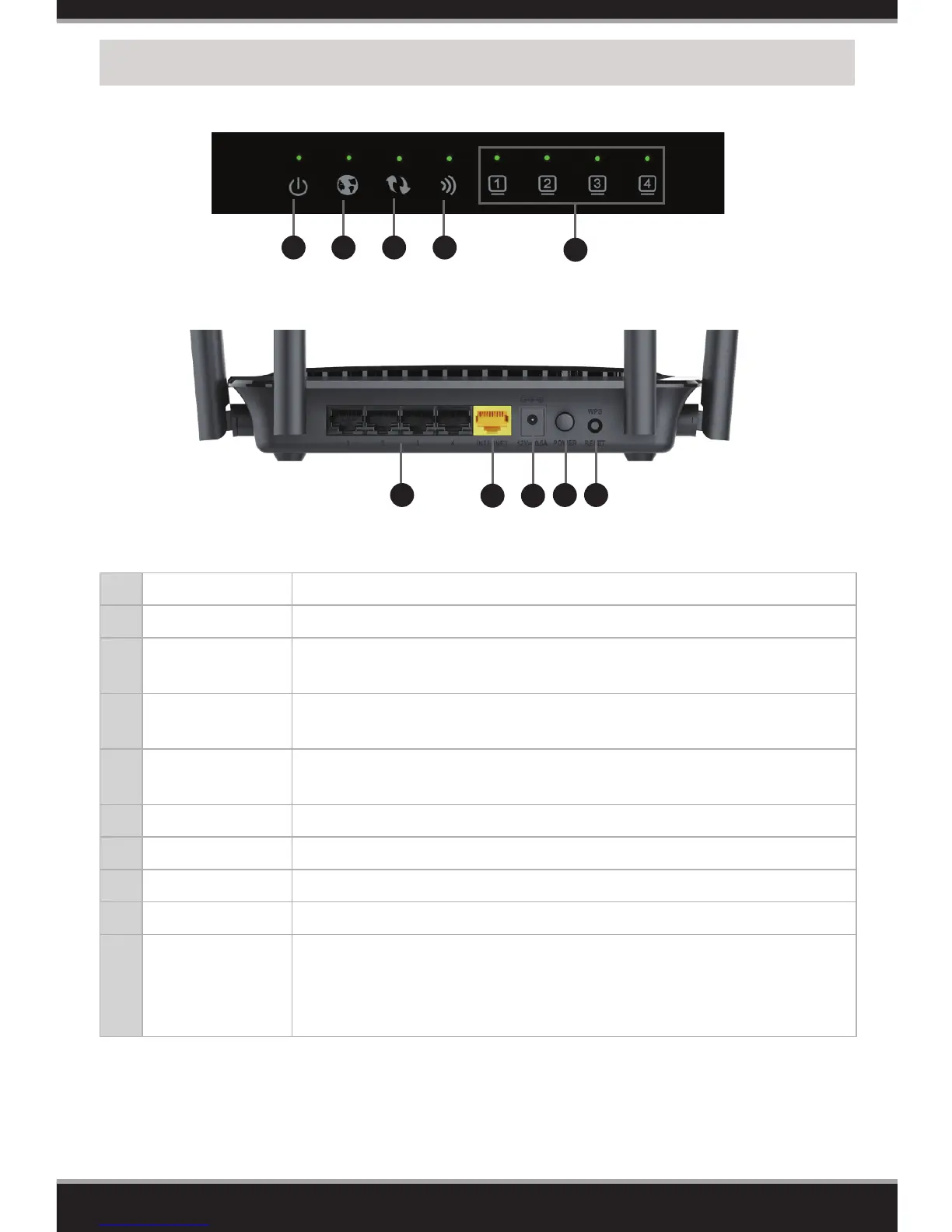

Hardware Overview
1 Power LED A solid green light indicates a proper connection to the power supply.
2 Internet LED A solid green light indicates a connection to the Internet port.
3 WPS LED
A solid green light indicates a successful connection using WPS. The light
will blink during the WPS process.
4 Wireless LED
A solid green light indicates the wireless function is working properly. This
light will blink during data transmission.
5 LAN LEDs (1-4)
A solid green light indicates a connection to a device is working properly.
The LED will blink during data transmission.
6 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and game consoles.
7 Internet Port Connect a broadband modem to this port using an Ethernet cable.
8 Power Port Connect the supplied power adapter.
9 Power Button Press to power the router on and o.
10
WPS/Reset
button
Press for 2 seconds to start the WPS process. The WPS LED will blink during
the process. The light will turn solid green when successfully connecting
to a device. Press for 10 seconds to reset the router to the factory default
settings.
1 432
6
5
7
9
8
10
