D-Link DIR-868L How To Set Up

Technical Support Setup Procedure

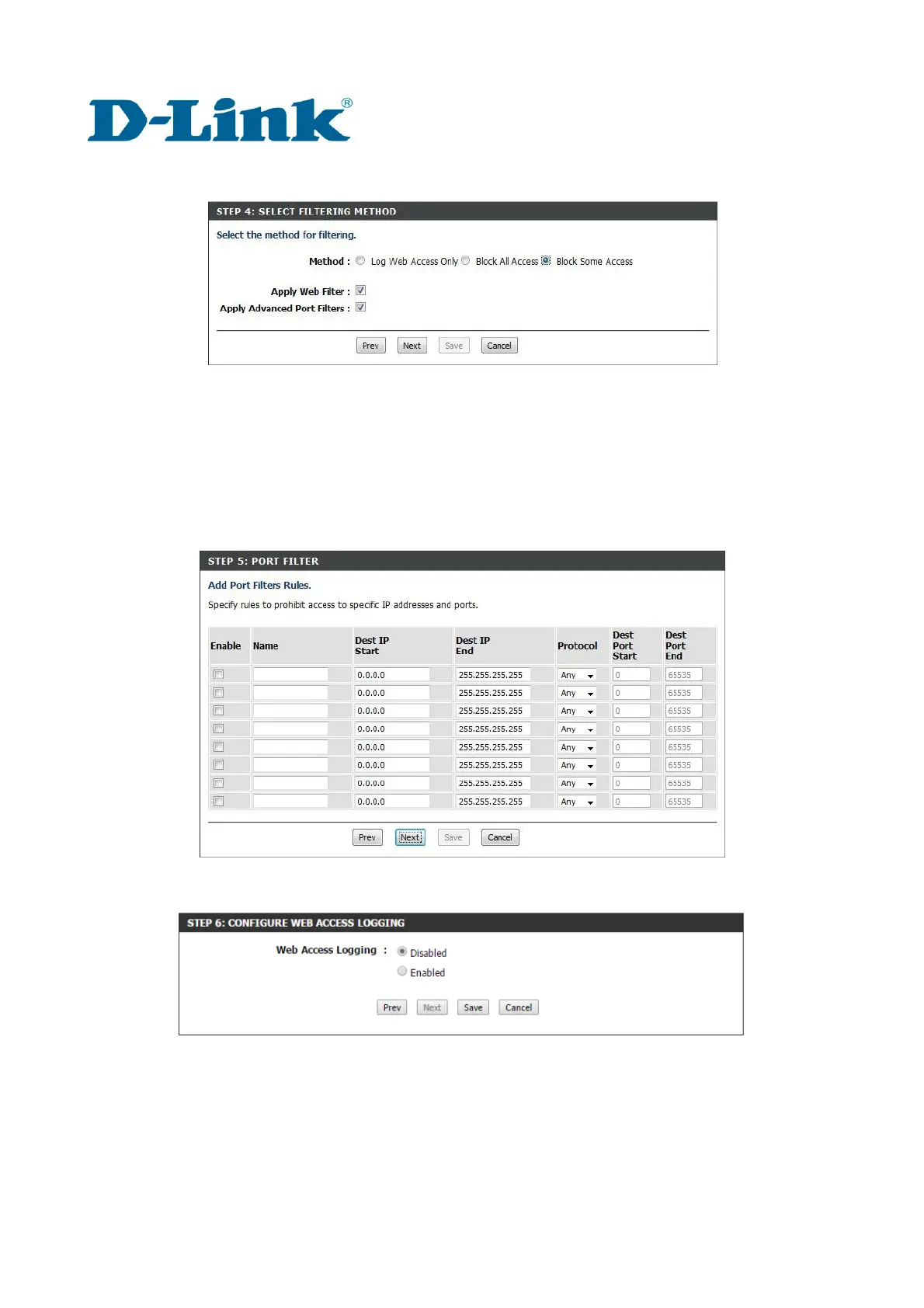

Step 9: Select the filtering method and then click Next to continue
Step 10: Enter the rule:
• Enable – check to enable the rule
• Name – Enter a name for your rule
• Dest IP Start – Enter the starting IP address
• Dest IP End – Enter the ending IP address
• Protocol – Select the protocol
• Dest Port Start – Enter the starting port number
• Dest Port End – Enter the ending port number
Step 11: Enable or Disable Web Access Logging and click Save.

D-Link DIR-868L Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	4
Rack mounting	-
USB ports quantity	1
Supported network protocols	IPv6
Security algorithms	WPA, WPA2, WPS, WPS-PBC, WPS-PIN
Certification	FCC\\r IC\\r Wi-Fi\\r CE
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Product color	Black
Mac operating systems supported	Mac OS X 10.4 Tiger
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	103 mm
Width	125 mm
Height	218 mm
Weight	530 g
