DIR-878 Quick Installation Guide
Conguring LAN Ports for IPTV/VoIP
This configuration step is available for the Router mode.

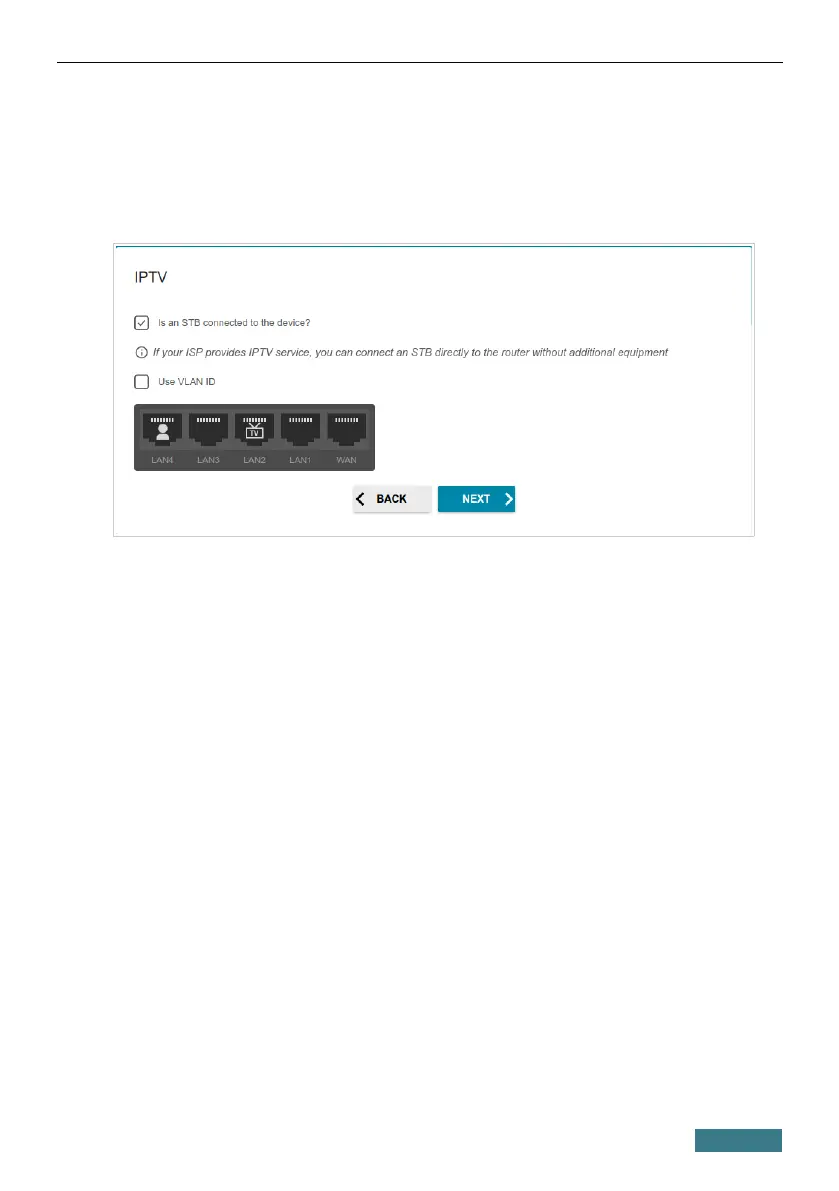

1. On the IPTV page, select the Is an STB connected to the device
checkbox.
2. Select a free LAN port for connecting your set-top box.
3. If the IPTV service is provided via a VLAN channel, select the Use
VLAN ID checkbox and fill in the VLAN ID field.
4. Click the NEXT button.
