11D-Link DIR-X1550 User Manual
Section 2 - Installation
Hardware Setup

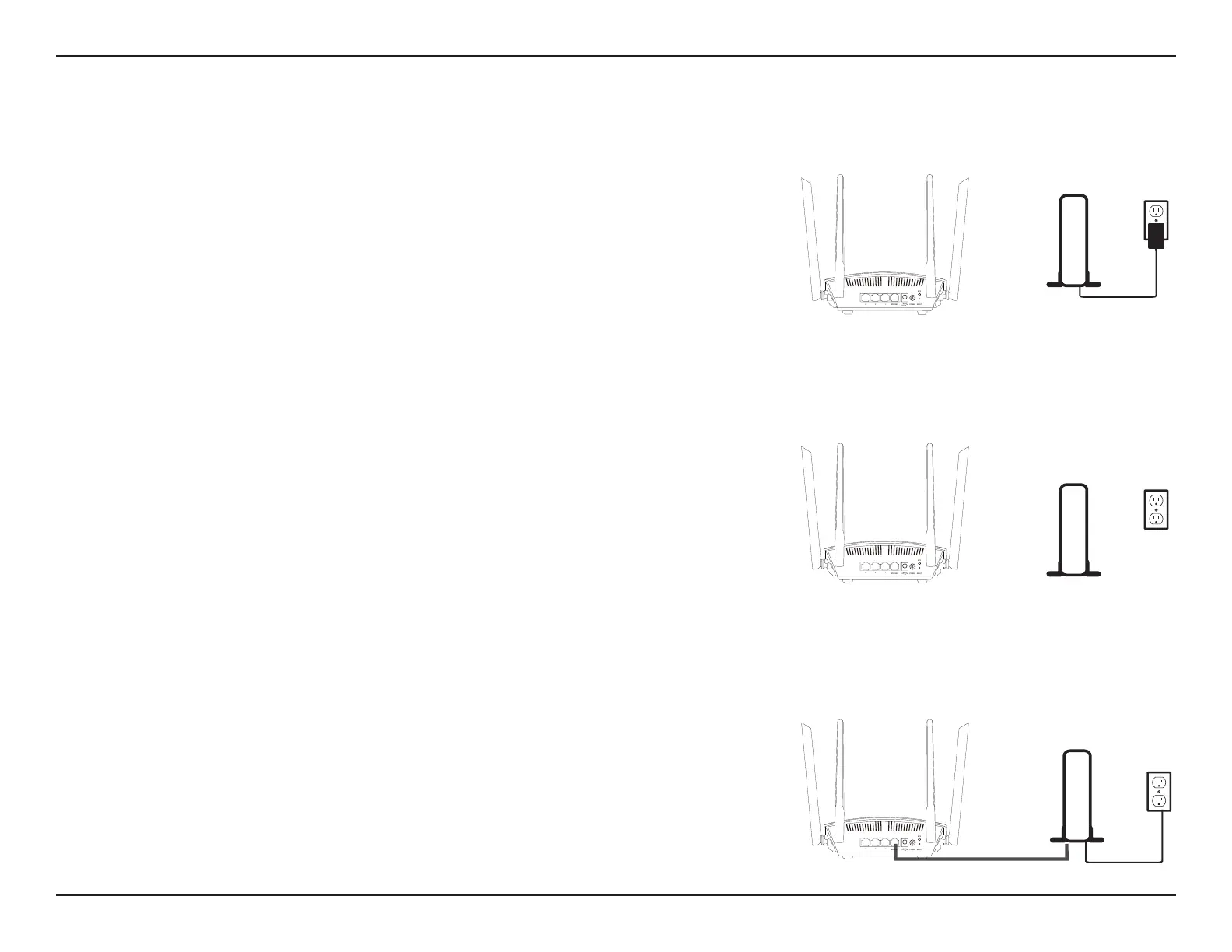

Step 1
Position your DIR-X1550 near your Internet-connected modem. Place it in an
open area for better wireless coverage.
Step 2
Turn o and unplug the power to your cable or DSL broadband modem. This
is required. In some cases, you may need to turn it o for up to ve minutes.
ModemModem
Step 3
Use the Ethernet cable to connect your modem to the port labelled
INTERNET on the router.
Modem
3 2 1
INTERNET POWER RESET
WPS
DCIN
12V
1A
3 2 1
INTERNET POWER RESET
WPS
DCIN
12V
1A
3 2 1
INTERNET POWER RESET
WPS
DCIN
12V
1A
To Next Page
