WIRELESS N 150 ADSL2+ MODEM ROUTER
DSL-2680
HIGH-SPEED ADSL BROADBAND
WHAT THIS PRODUCT DOES
This Wireless N 150 ADSL2+ Modem Router
connects a group of users to the Internet,
allowing multiple computers at home or the
office to share an integrated high speed
ADSL2/2+ connection. It features 2 built-in
Ethernet ports, firewall protection, and QoS
for smooth and secure transfer of photos,
files, music, video, and e-mail over the
Internet.
HIGH-SPEED ADSL AND
WIRELESS PERFORMANCE
Connect to your ADSL connection at up to
24 Mbps downstream and 1 Mbps upstream.
High speed performance gives you smooth
media streaming, so you can watch TV,
listen to live music, broadcast over the
Internet, and experience clear Internet
phone calls. Wireless N 150 technology
allows you to connect to 802.11n wireless
devices at up to 150 Mbps, so you can make
full use of your broadband connection.
TECHNICAL SPECIFICATIONS
DEVICE INTERFACES
RJ-11 ADSL port
RJ-45 10/100BASE-TX Ethernet ports
with auto MDI/MDIX
Built-in Wireless N 150
Factory reset button
WPS button
Power on/off switch
WIRELESS LAN
802.11b/g standards, Wireless N 150
Optional 802.11n capabilities
Up to 150 Mbps throughput
Frequency range: 2.4 GHz to 2.484 GHz
Antenna: Built-in Diversity, Non-
Detachable Antenna
64/128 bits WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access)
security
Multiple SSID
802.11e Wireless QoS (WMM/WME)
MAC address-based access control
WIRELESS TRANSMISSION POWER2
802.11n: 13.5 ~ 16.5 dBm
802.11g: 13.5 ~ 16.5 dBm
802.11b: 16.5 ~ 18.5 dBm
ADSL STANDARDS
ADSL standards: Multi-mode, ANSI
T1.413 Issue 2, ITU G.992.1 (G.dmt)
Annex A, ITU G.992.2 (G.lite) Annex A,
ITU G.994.1 (G.hs)
ADSL2 standards: ITU G.992.3 (G.dmt.
bis) Annex A/L/M, ITU G.992.4 (G.lite.
bis) Annex A
ADSL2+ standards: ITU G.992.5 Annex
A/L/M
ADSL DATA RATES
G.dmt: 8 Mbps downstream, 832 Kbps
upstream
G.lite: 1.5 Mbps downstream, 512 Kbps
upstream
ADSL2: 12 Mbps downstream, 1 Mbps
upstream
ADSL2+: 24 Mbps downstream, 1 Mbps
upstream
ATM & PPP PROTOCOLS
ATM Forum UNI3.1/4.0 PVC (up to
8PVCs)
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS (Traffic Shaping)
Bridged or routed Ethernet
encapsulation
VC and LLC based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
ITU-T I.610 OAM F4/F5
ROUTER FEATURES
NAT
DHCP server/client/relay
Static Routing, RIP v.1, v.2
Universal Plug and Play (UPnP)
Compliant
Dynamic Domain Name System (DDNS)
Virtual Server
DNS proxy and IGMP proxy
FIREWALL
Built-in NAT firewall
Stateful Packet Inspection (SPI)
DoS attacks prevention
Packet filtering (IP/ICMP/TCP/UDP)
Intrusion Detection System (IDS)
DMZ
VIRTUAL PRIVATE NETWORK (VPN)
Multiple PPTP/IPSec/L2TP pass-through
DEVICE CONFIGURATION/MANAGEMENT
Web-based GUI for configuration,
firmware upgrade
Code lock to prevent improper firmware
upgrade
Telnet
Syslog monitoring
Pass DSL Forum TR-067 Performance
Criteria
WPS
QUALITY OF SERVICE
LAN to WAN traffic prioritization/
Classification
802.1p (0 to 7) traffic prioritization
Traffic Shaping
POWER INPUT
Through 12 V DC 0.5 A external power
adapter
DIAGNOSTIC LEDS
Power
LAN (1 to 2)
WLAN
DSL
Internet
WPS
DIMENSIONS (L
X
W
X
H)
147.5 x 113 x 32 mm
OPERATING TEMPERATURE
0˚ to 40˚ C (32˚ to 104˚ F)
STORAGE TEMPERATURE
-20˚ to 65˚ C (-4˚ to 149˚ F)
OPERATING HUMIDITY
5% to 95% non-condensing
CERTIFICATIONS
CE
D-Link Corporation
No. 289 Xinhu 3rd Road, Neihu, Taipei 114, Taiwan
Specifications are subject to change without notice.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners.
©2010 D-Link Corporation. All rights reserved.
Release 01 (April 2010)

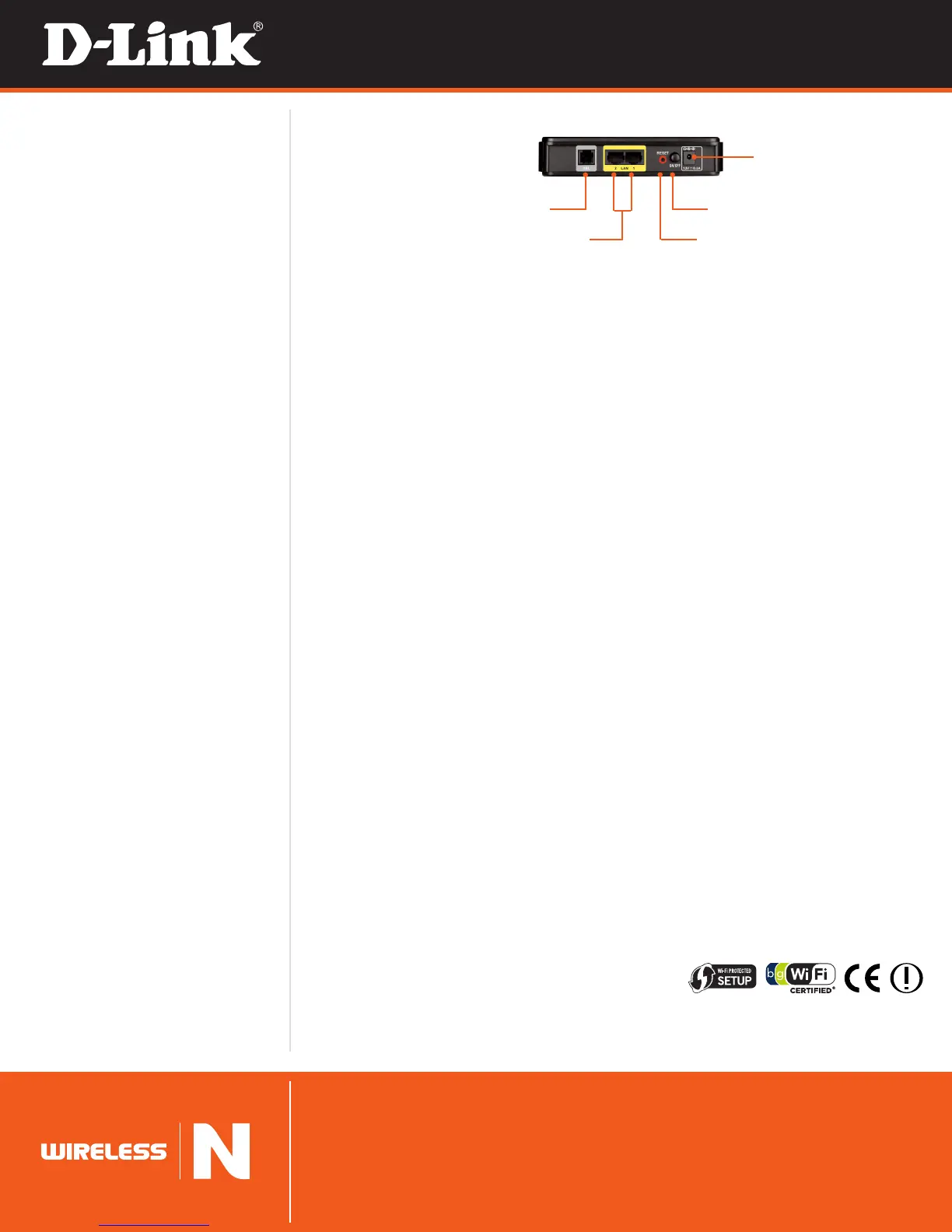

RJ-11 ADSL PORT
Connects to Phone Line
RJ-45 10/100BASE-TX ETHERNET PORTS
Connect to Computers via Ethernet Cable
RESET BUTTON
Resets to Factory Default Settings
POWER ON/OFF
Switch Button
POWER SOCKET
Connects to External Power Adapter
