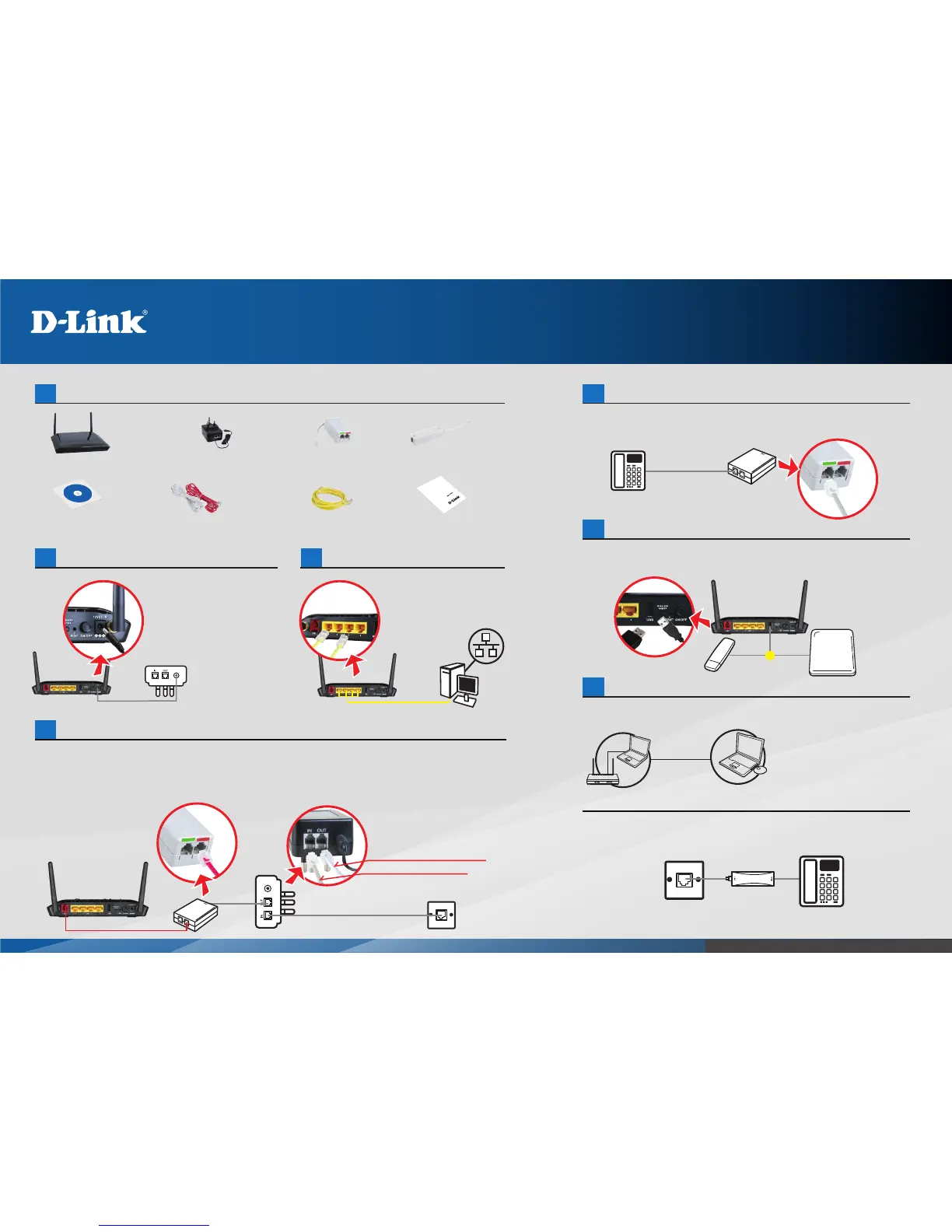

D-Link DSL-2750U Quick Start Guide

DSL-2750U
Line cable jack of the splitter
Micro-Filter
Telephone B
7 CD Installation
Note:
If a second phone is connected, an additional filter (supplied) should be fitted as
shown, to minimise any interference between voice and data. All wall sockets
require a filter. Additional filters can be purchased from a Telkom Direct Shop.
Splitter
3-Pin Power Supply/Lightning
Protection Unit
3-Pin Power
Supply/Lightning
Protection Unit
Router/Modem
4 DSL Port Connection
6 USB Connection
Connect the (DSL) port of the Router, using the (Red) telephone cable, to the port marked (Red, DSL) on the splitter.
Connect the short (Line) cable attached to the splitter, to the port marked out (OUT) on the Power Supply/Lightning
Protection Unit.
Connect the telephone wall socket, using the (Grey) telephone cable, to the port marked (IN) on the Power
Supply/Lightning Protection Unit.
2 Power Adapter Connection 3 LAN Connection
Plug the 3-Pin Power
Supply/Lightning Protection
Unit into the wall outlet and
then connect the other end of it
to the Power port of the router
(12VDC IN). Switch on the plug
point on completion of step 5.
Connect the Ethernet LAN
cable to any (Yellow) port
on the router and connect
the other end to the LAN
port of the PC.
Insert the CD into the CD drive of your computer, the installation CD will autostart,
follow the on screen instructions to configure the Router.
PHONE
DSL
Optionally, a wireless Internet connection is available using a 3G USB dongle (not
supplied). Storage devices may also be attached via the USB port.
PHONE
DSL
Splitter
Telephone
5 Telephone Set Connection
Connect the telephone set to the splitter port marked (Green, PHONE), using the
cable supplied with the telephone.
Telephone
wall socket
Telephone wall socket
Telephone
wall socket
3.5G Adapter
Storage
Router
Router
Router
Router
PC
OR
1 This pack contains
610000001293L Ver: 1.00(TK)
NOTE: Should the installation
CD not start automatically
please run the setup program
from your CD ROM.
DSL-2750U Router
Installation CD
3-Pin Power Supply/Lightning
Protection Unit
Two RJ-11 Phone Cables
(one is Red, one is Grey)
RJ-45 Ethernet Cable
(Yellow)
Documents
Splitter Micro-Filter

D-Link DSL-2750U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector type	RJ-11
ADSL interface cable type	24/26 AWG twisted pair telephone line
LAN interface port type	RJ-45
LAN interface standard	10/100BASE-T Ethernet
