D-Link DSR-250V2 User Manual

4  D-Link Unied Services Router
ENGLISH
The Services Router provides an serial port that
enables a connection to a computer or terminal
for monitoring and conguring the device. This
port is a RJ-45 connector, implemented as a
data communication terminal equipment (DCE)
connection.
To use the console port connection, you need the
following equipment:
1. A terminal or a computer with both a serial port
and the ability to emulate a terminal.
2. A RJ45-to-DB9 RS-232 with female connector.
(Already included in packing list)
3. If your Laptop or PC doesn’t have RS-232
connector, a converter is required.
Note: DSR-250V2 does not come with RS-232
converter and these must be purchased separately.
To establish a console connection:
1. Plug the RJ-45 connector of the supplied
RJ45-to-DB9 cable directly to the console port
on the Services Router.
2. Connect the other end of the cable to a terminal
or to the serial connector of a computer
running terminal emulation software. Set the
terminal emulation software as following:
Baud rate: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
3. When you have correctly set up the terminal,
having previously followed the instructions
in section “Connecting Power and Turn the
Device On/O󰀨” then switch on your device.
The boot sequence appears in the terminal.
4. Once the boot sequence completes, the
command prompt is displayed, the device is
ready to be congured.
Using a Console Connection
(RJ45-to-DB9 DCE)
To access the device with the WebUI:
1. Connect your workstation on the port labeled
LAN (1-4), which is pre-allocated to the LAN.
2. Ensure your workstation is DHCP Client
enabled or congured with a static IP address
in the 192.168.10.0/24 subnet.
3. Log on the Services Router Web Interface The
default log on information is:
Username: admin
Password: Admin$123
Initially Congure the Device
The services router software is preinstalled on the
DSR-250V2 device. When the device is powered
on, it is ready to be congured. While the device
has a default factory conguration that allow you
to initially connect to the device, you must perform
further conguration for your specic network
requirements.
Using the WebUI
To use the WebUI, the workstation from which you
are managing the device must initially be on the
same subnetwork as the device.

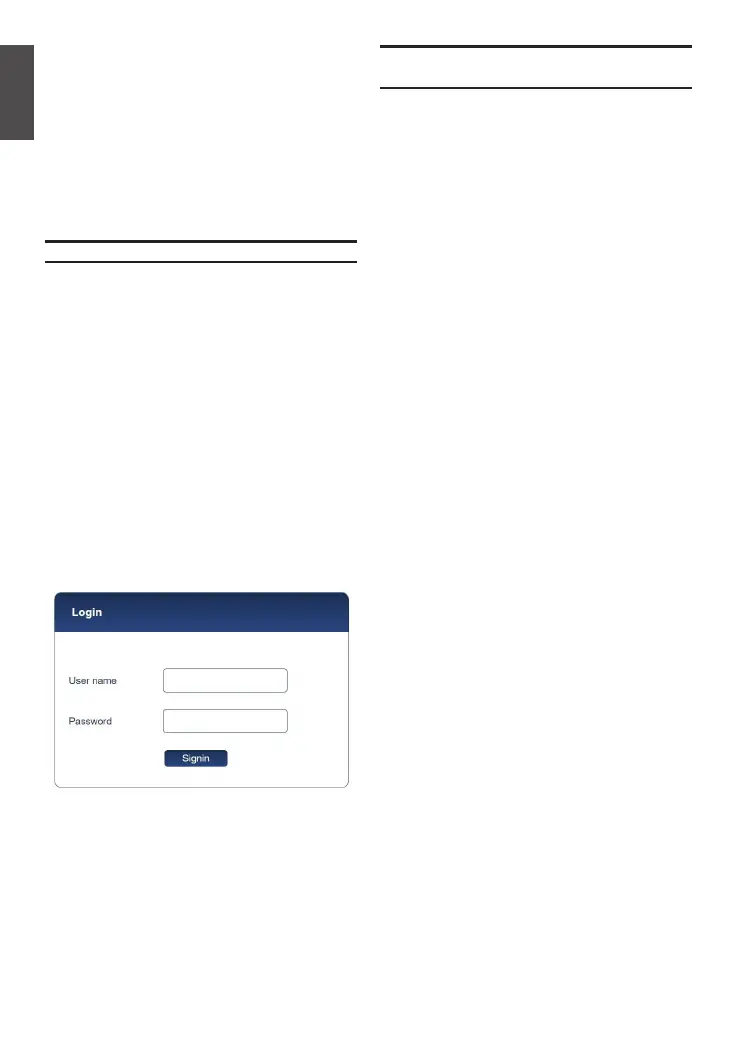

Figure 4. WebUI login

D-Link DSR-250V2 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
VPN tunnels quantity	75
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	3DES, 128-bit RC4, AES, SNMP, SNMPv2, SNMPv3
Product type	Desktop/pole router
Product color	Black
Routing protocols	OSPF, OSPFv3, RIP-1, RIP-2
Wi-Fi standards	802.11g
WLAN data transfer rate (max)	- Mbit/s
Power source type	DC
Power consumption (typical)	14.4 W
Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Mean time between failures (MTBF)	123015785 h

Weight and Dimensions

Depth	190 mm
Width	120 mm
Height	38 mm
