12
DWL-3200AP User’s Manual
D-Link Systems, Inc.
Getting Started

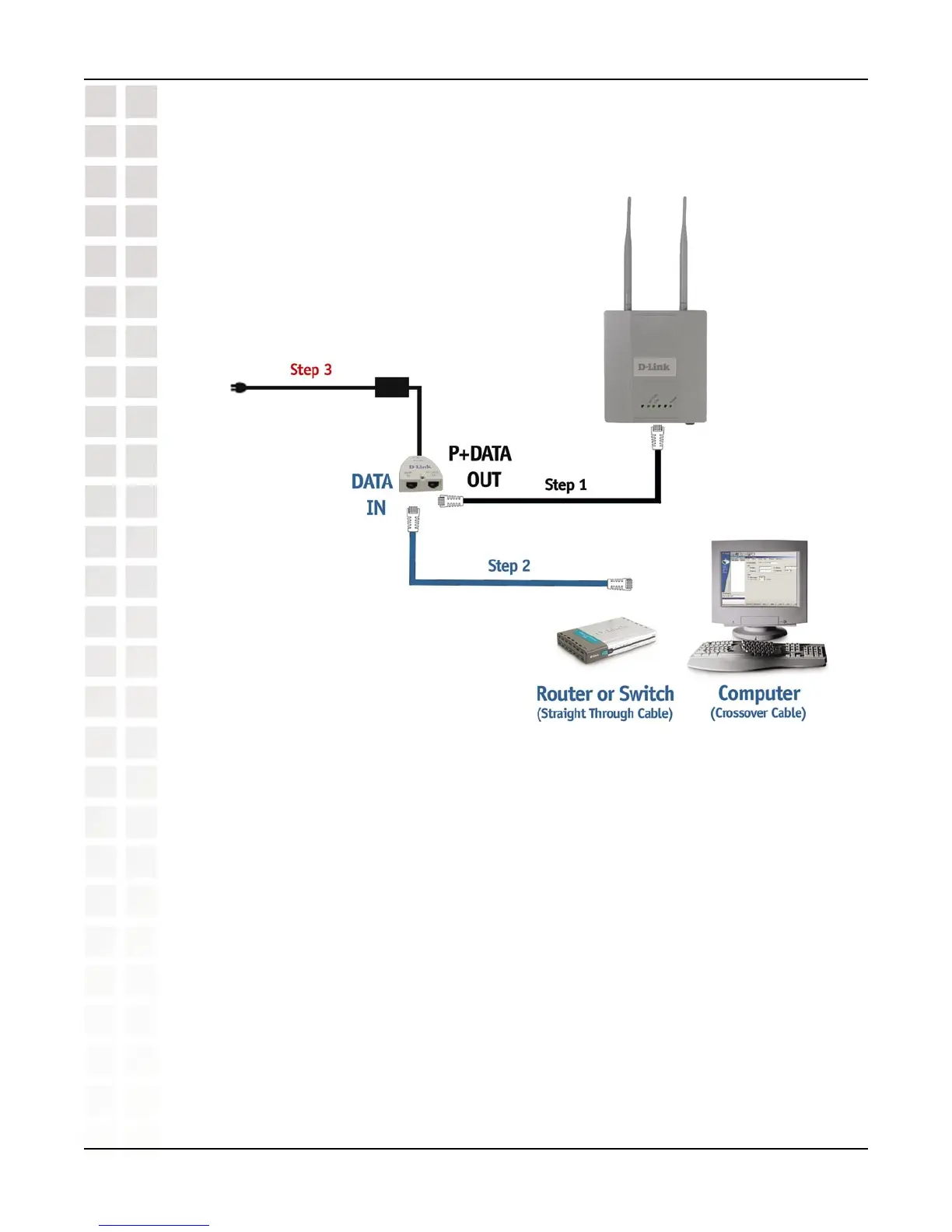

Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package) to
the LAN port on the DWL-3200AP and the other end of the Ethernet
cable to the port labeled P+DATA OUT on the PoE base unit.
Connect another Ethernet cable from the DATA IN port on the PoE
base unit to your router/switch, using a straight through cable, or to
a PC, using a crossover cable.
Attach the power adapter to the connector labeled POWER IN on
the PoE base unit. Attach the power cord to the power adapter and
into an electrical outlet.
Step 1
Step 2
Step 3
