D-Link DWL-6610AP

D-Link DWL-6610AP Quick Install Guide
7
ENGLISH

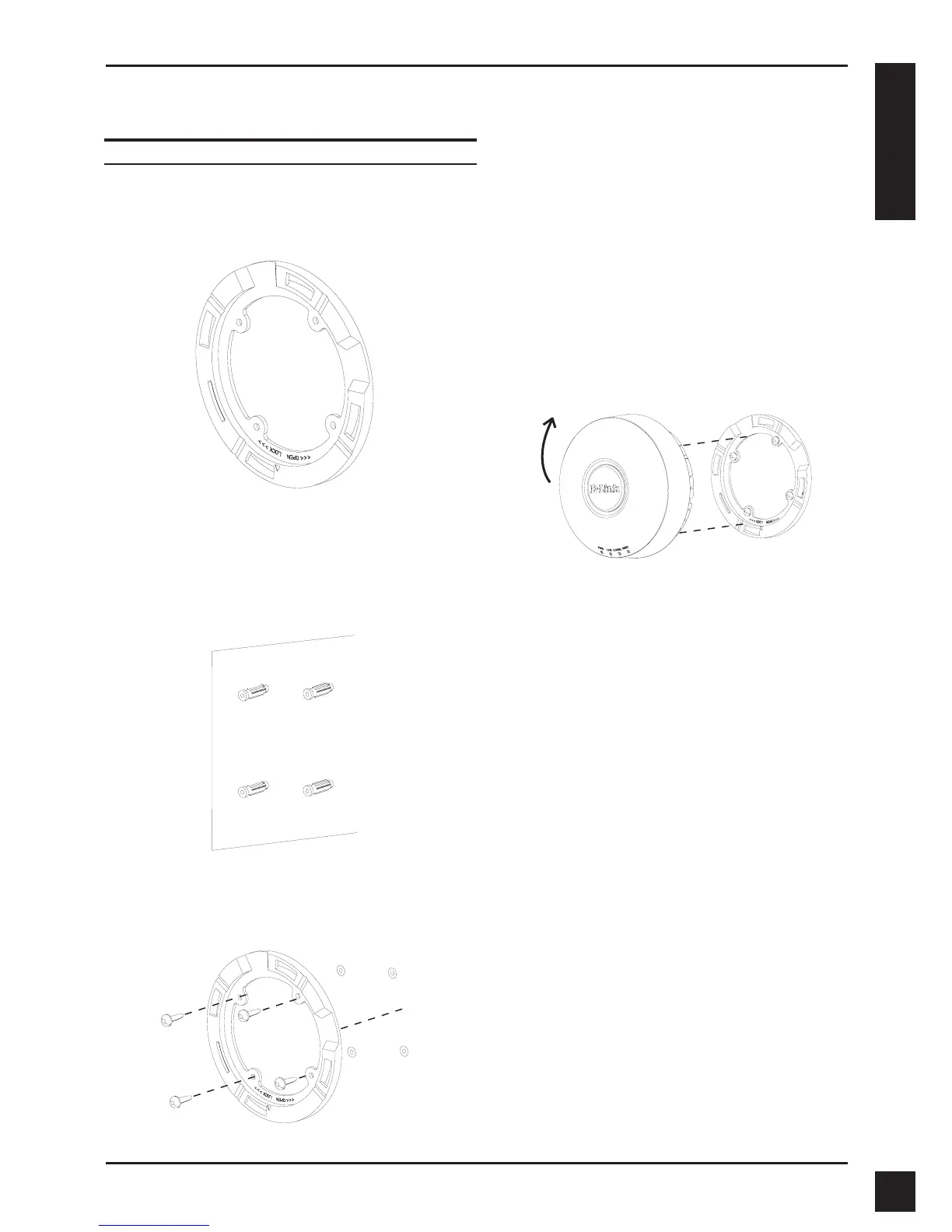

Solid Wall or Ceiling
Installation
1. Place the plastic wall-mounting ring on a
wall or ceiling.
7. Plug the CAT 5 cable into the LAN
port on the Access Point.
5. To attach the Access Point to the
mounting ring, rst locate the right
side of the Access Point that has a
small lock symbol on it, and make
sure to line up this side with the side
of the mounting ring that has Open -
Close written on it.
6. Twist counterclockwise to lock the
Access Point onto the ring. The lock
symbol on the Access Point must
point directly to the Close text on the
mounting ring.
2. Mark the points where you will insert the
screws. Take out the mounting ring.
3. Drill holes in the marked points and
insert the plastic wall anchors.
4. Use the supplied screws to attach the
mounting ring to the wall.
