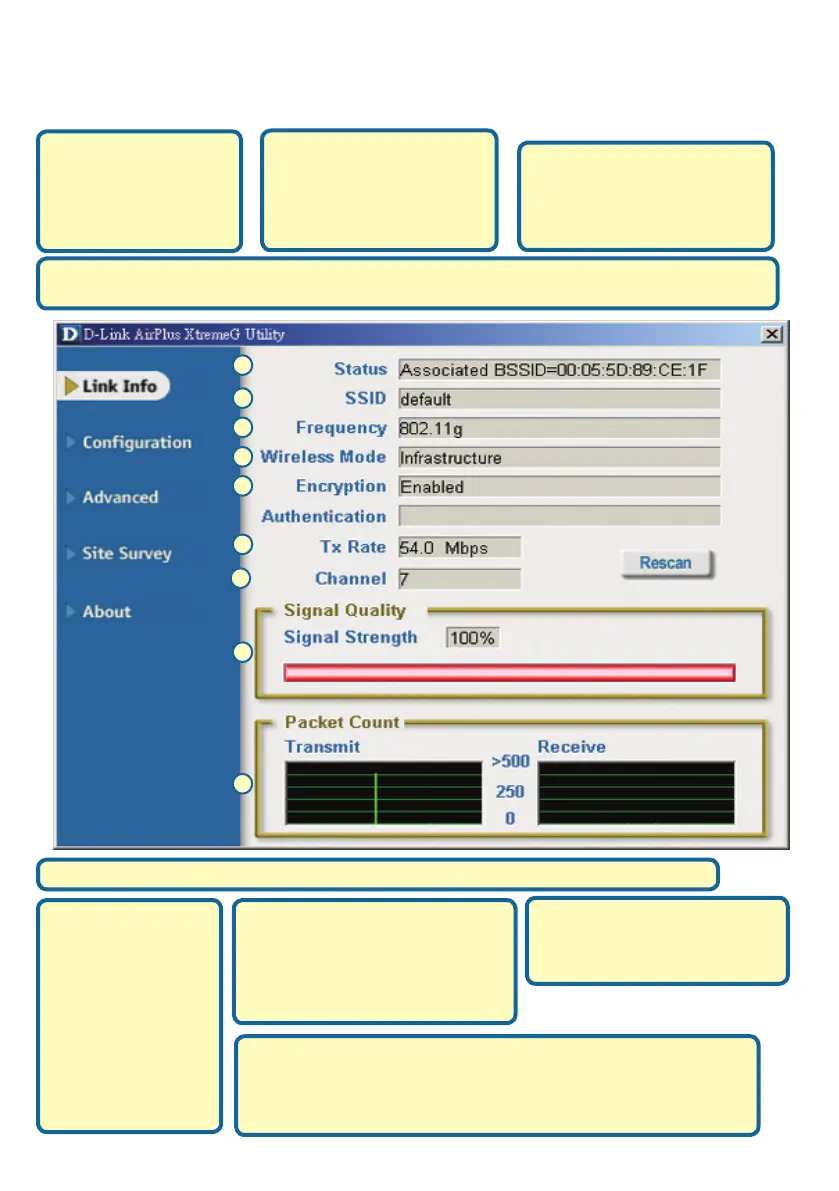

Using the Configuration Utility
A. Status: Displays
the MAC Address of
the Access Point that
is associated with the
DWL-G520.
B. SSID: The Service
Set Identifier is the name
assigned to the wireless
network. The factory SSID
setting is set to default.
C. Frequency: Displays the
current frequency used by
the current connection to the
access point.
E. Encryption: Displays the current encryption status of the wireless connection.
D. Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for
peer-to-peer networking.
F.
TxRate: The
default setting is
Auto; meaning,
TxRate settings
are automatically
determined by
the DWL-G520
depending on the
distance from the
access point.
E
C
D
B
A
G. Channel: Displays the
channel information. By default,
the channel is set to 6 and
selection is automatically
determined by the DWL-G520.
H. Signal Quality: Displays the Link Quality for the DWL-G520
wireless connection to the access point. The Signal Strength
represents the wireless signal between the access point and the
DWL-G520. The percentage coincides with the graphical bar.
I. Packet Count: Graphically
displays the statistics of data
transmitted and received.
F
H
G
I
