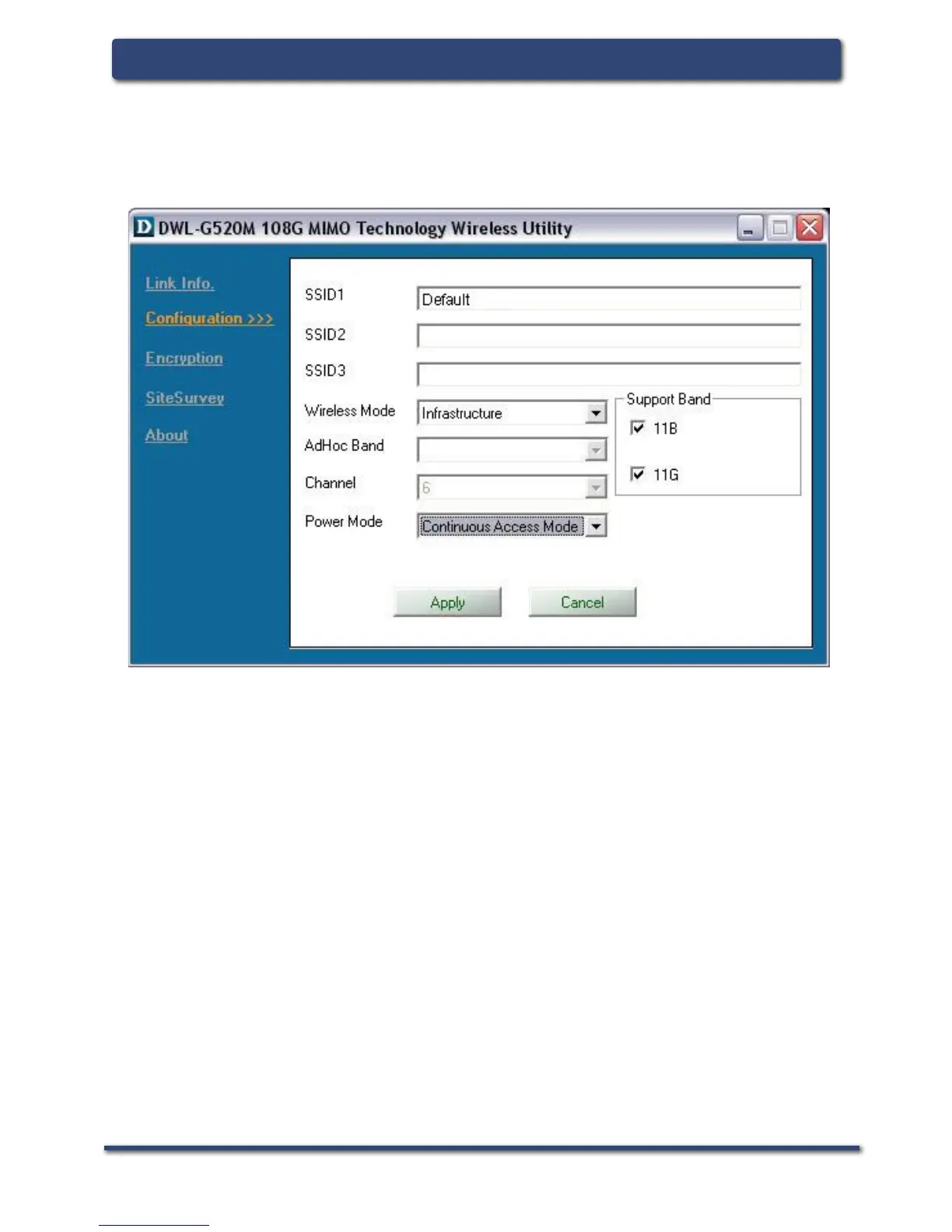

Using the Configuration Utility
11
Using the
Configuration
Utility
(continued)
SSID (1-3): The Service Set Identifier is the name assigned to the wireless
network. You may enter up to 3 different wireless networks to connect to.
Wireless Mode: Select Infrastructure if you want to connect to an access
point or wireless router. Ad-Hoc mode is used for peer-to-peer networking.
Ad-Hoc Band: Select 11B or 11G (see Support Band below).
Channel: Select the channel (1-11) to use. Available only in Ad-Hoc mode.
Power Mode: Continuous Access Mode is the default setting. For best results
leave this setting at the default.
Support Band: Select the wireless mode of your wireless network:
11B - Connect to an 802.11b-only network.
11G - Connect to an 802.11g-only network.
Check both if using in an 802.11b/g mixed network.
