31

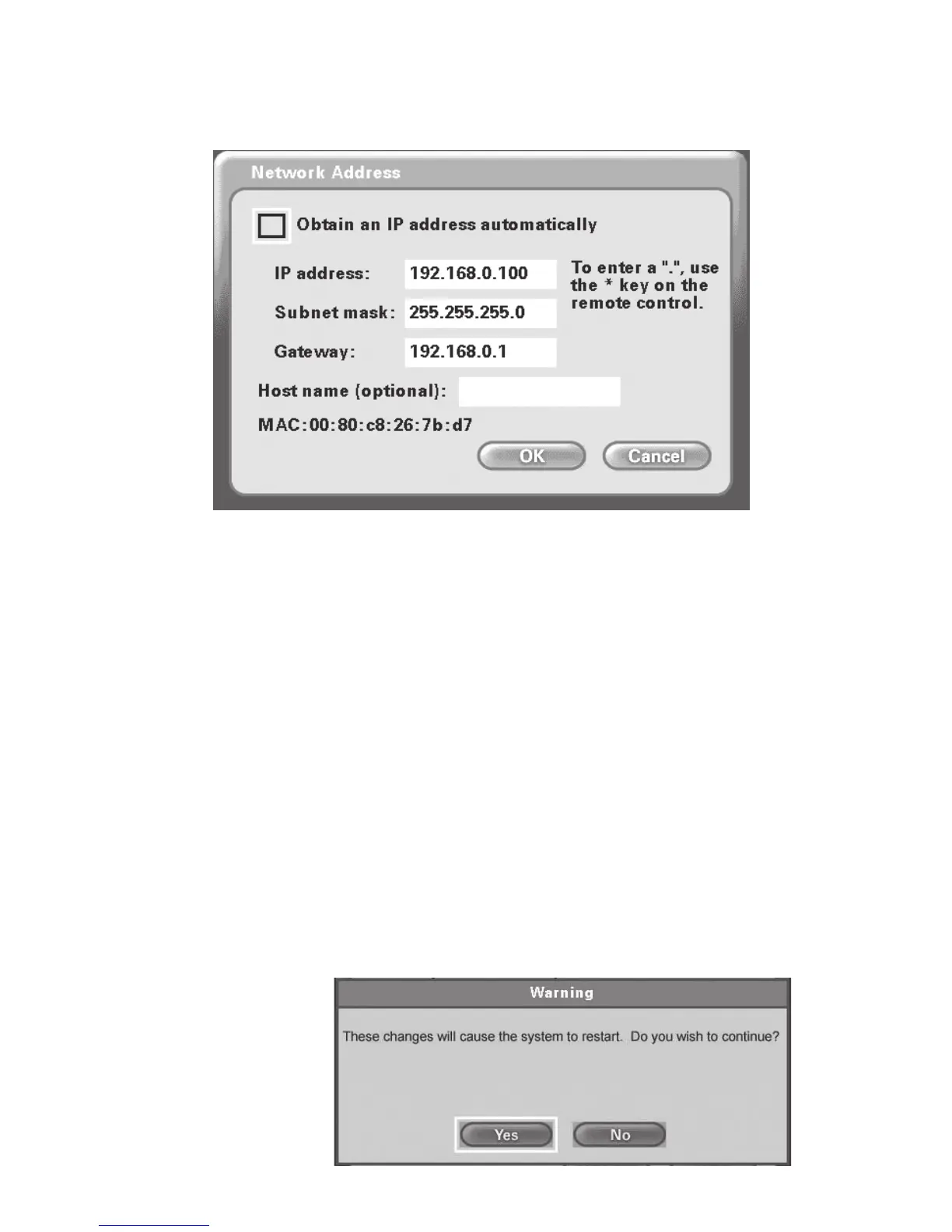

Main Screen > Settings > Network > Address
Using the Configuration Menu (continued)
The DVC-1000 VideoPhone will attempt to obtain the
IP address from the DHCP server. When this is
checked (the default), the other settings on this screen
are automatically grayed.
These are all Internet settings that need to be provided
by your router configuration settings, ISP or network
administrator. These will be grayed if the checkbox
(above) is checked.
Used for reporting the host name to the router/home
gateway in the DHCP table. This is rarely used and is
optional.
MAC (Media Access Control) is an unique identifier
for the Ethernet hardware of your DVC-1000. If you
need to know the MAC address of your DVC-1000, it
can be found on this screen.
Obtain an IP address
automatically
IP address,
Subnet mask &
Gateway
Host name (optional)
When this screen
appears, Click OK to
save the changes and
restart the system.
MAC:xx:xx:xx:xx:xx:xx
X
To Next Page
