DAB JETCOM 102 User Manual

ENGLISH
28

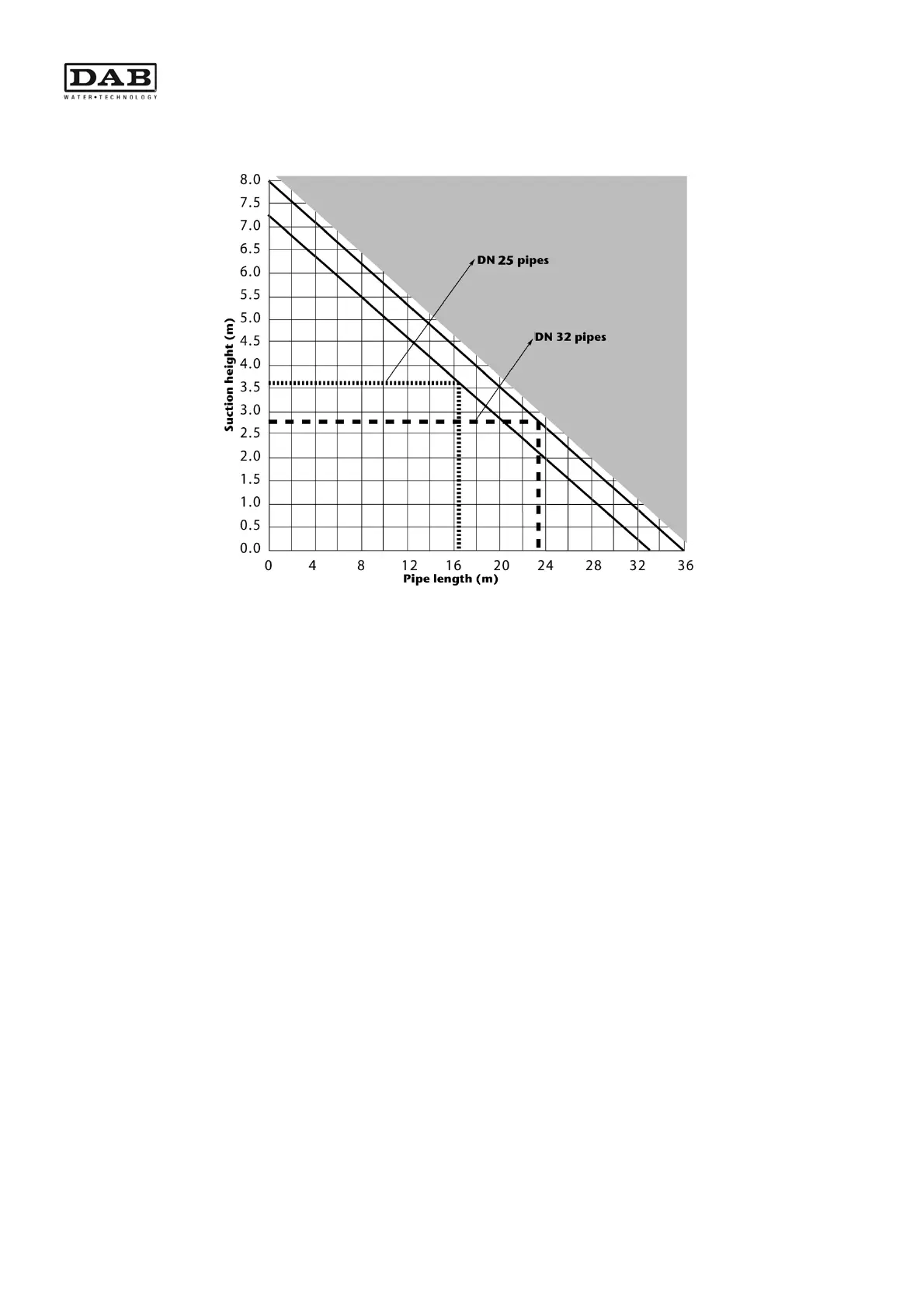

Table 1
Correspondence between the length and height of the suction pipe
Proceed as follows:
1. Connect the suction pipe to the connector as indicated in figure 01 point 3.
WARNING
By using the supplied hose the suction pipe can be bent through 180°.
Use table 1 to calculate the maximum length of the suction pipe.
4.5 Delivery pipe connection
Proceed as follows:
1. Connect the delivery pipe to the 1” connector with the supplied hose as indicated in figure 01
point 2.
2. Fix the pipe to the wall with a suitable pipe clamp.
WARNING
Ideally an on-off valve should be fitted before the float valve so that the mains water can be turned off
in the event of breakage or malfunction, and so that maintenance can be performed in total safety.
4.6 Hydrostat installation
The hydrostat must be installed inside the rain water collection tank.
Proceed as follows:
1. Position the float as indicated in figure 04.
2. The counterweight should ideally be fitted at least 20 cm above the float.
