9
When charging the product with a Dabbsson solar panel, follow the instructions of this user
manual to avoid damage to the product.

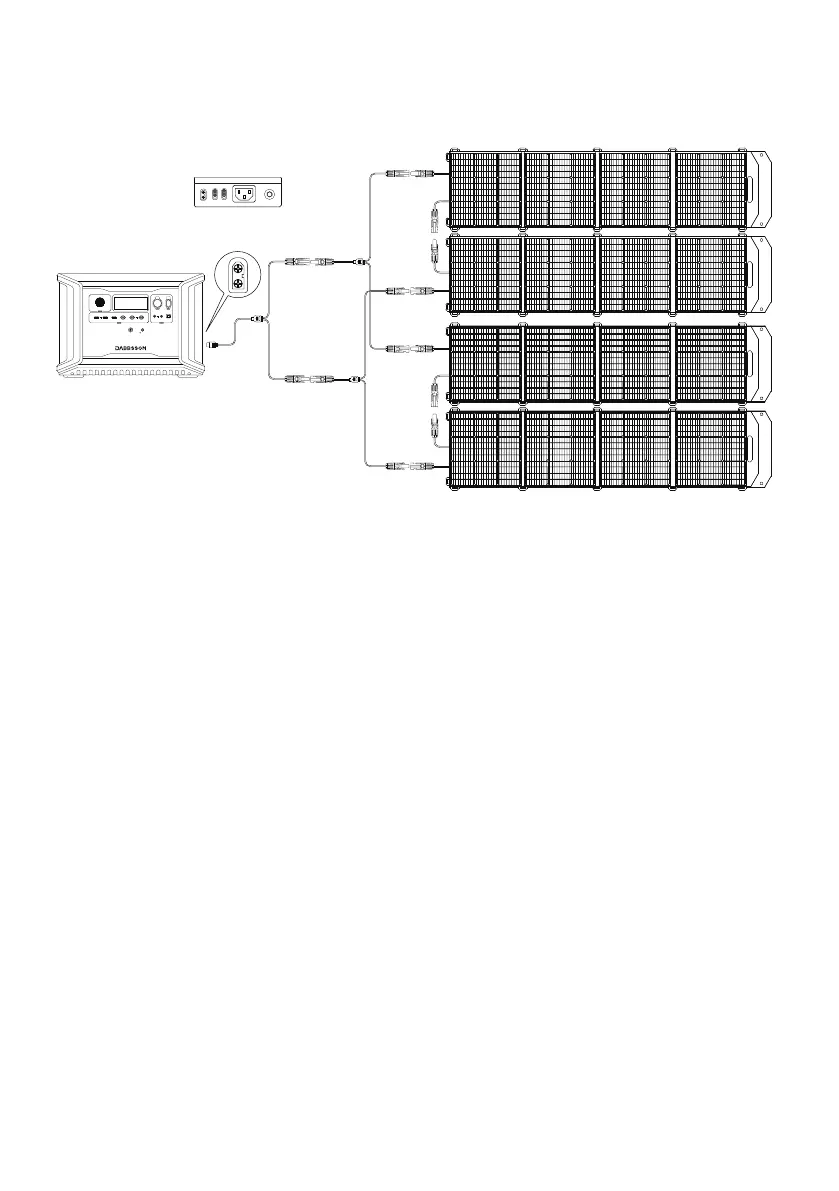

200W Solar Panel (x4)
Connection with Solar Panel
Connect XT60 Port
MC4 Connection
12V ON/OFF
FAST CHARGE PD 100W
10A 30A
4A DEVICE
IOT RESET
LIGHT ON/OFF
USB ON/OFF
5V 2.4A
PD 30W
