6

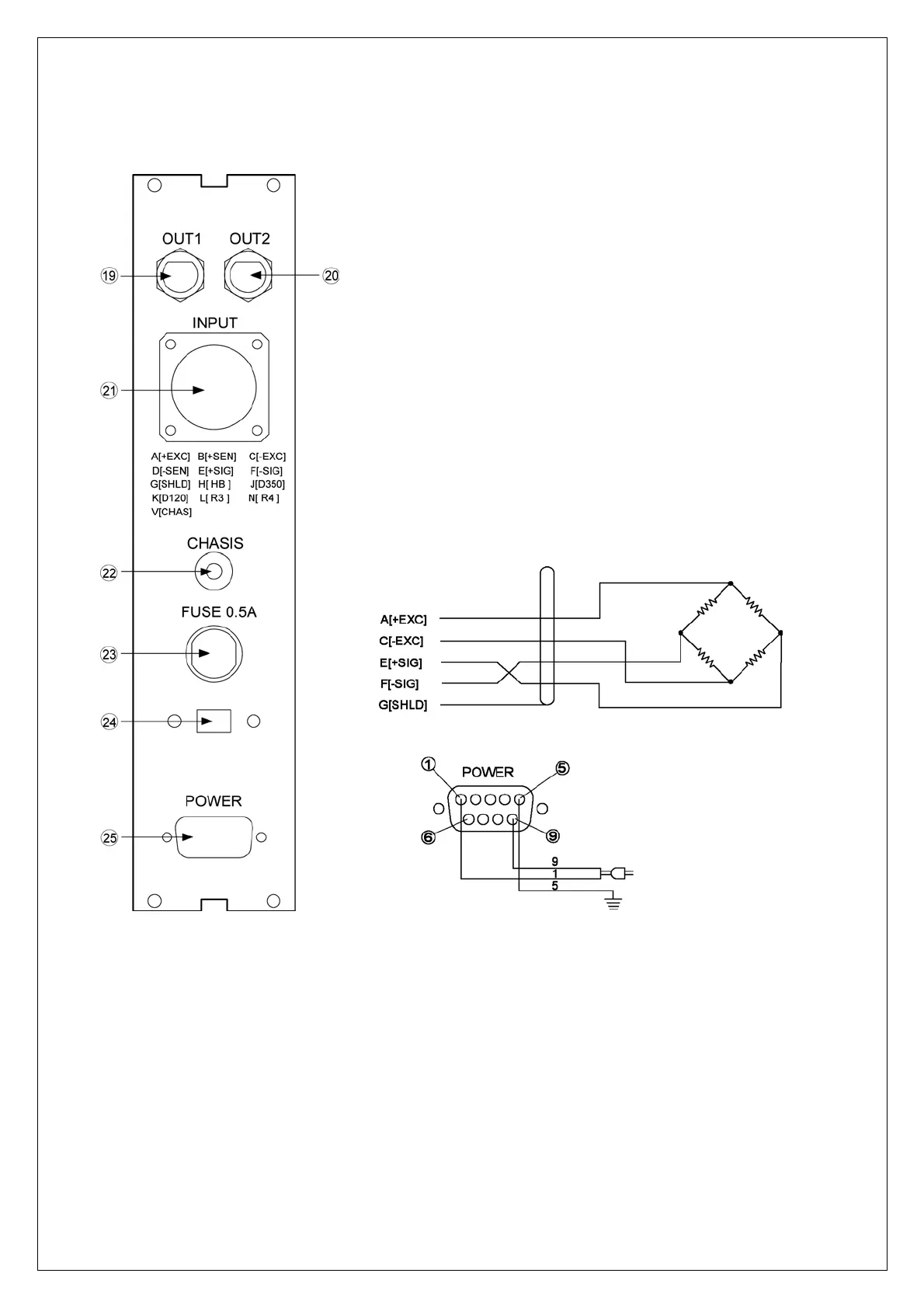

3-2.Back Panel
○
19
Low-current output (load more than 2kΩ)
○
20
High-current output (load more than 200Ω)
○
21
Sensor input connector
○
22
Case earth terminal
○
23
Fuse
○
24
Power selecting switch
○
25
Power input connector
