Chapter 6. Interface
1. Rs-232C (Standard Installed)
RS-232C Serial Interface is sensitive/weak for electric Noise.
So, please isolate with AC power cable and use shield cable to reduce the electric noise effect.

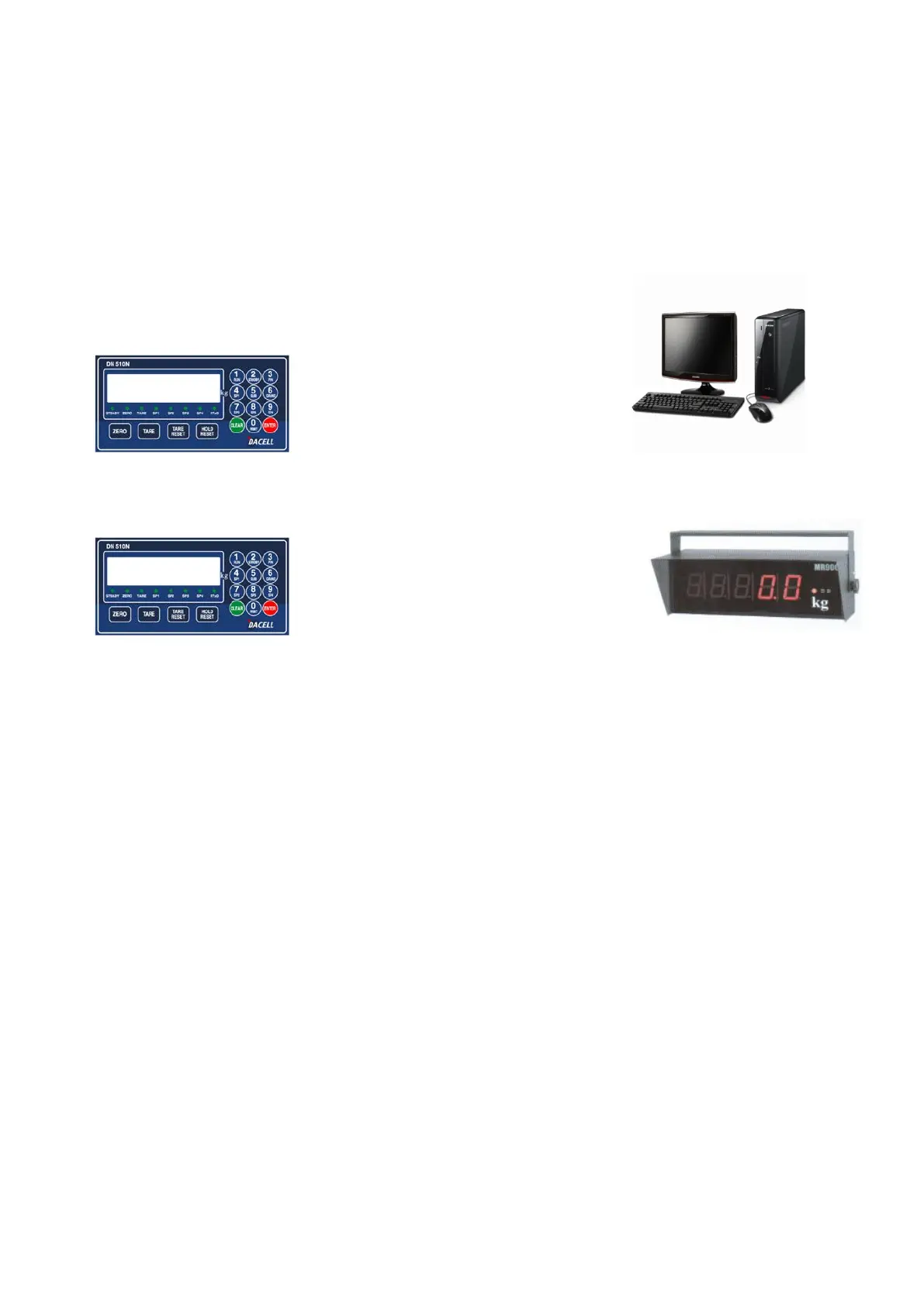

1-1. Connection
DN510N-Series Indicator
DN500N-Series Indicator PC(D-Sub 9Pin)
Remote Display
DN500N-Series Indicator
1-2. Signal Format
①. Type : EIA-RS-232C
②. Communication Method : Half-Duplex, Full Duplex, Asynchronous
③. Serial Baud Rate : Selectable
④. Data Bit : 8(No Parity mode, only)Bit.
⑤. Stop Bit : 1
⑥. Parity Bit : Non, Even, Odd (Selectable)
⑦ Code : ASCII
RXD 2 --------------------- Pin3 TXD
TXD 3 --------------------- Pin2 RXD
GND 5-------------------- Pin5 GND
TXD 3 ------------------------0 RXD
GND 5 ------------------------0 GND
