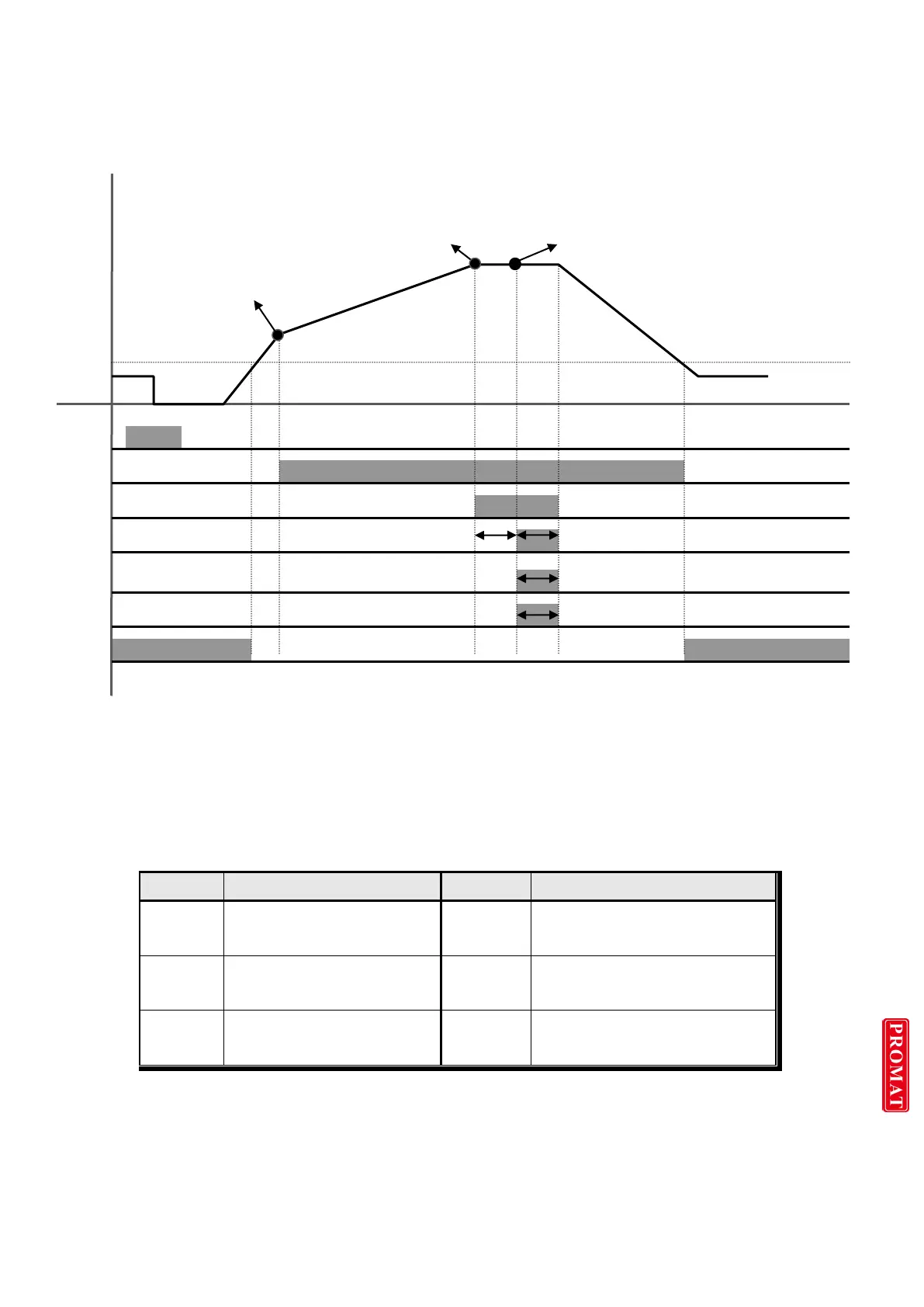

◆ Weighing Mode 1. Limit Mode 1. (F21-01 setting) - Relay “ON” when weight reaches to set
value
1. Set value setting : LOW(BULK), HIGH(FINAL)
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※ Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Output Relay
Relay
Contents
Relay
Contents
LOW
Current weight ≥ LOW(ON)
Current weight < LOW(OFF)
LOW NG
After “t1” time,
“On” during “t5” time
HIGH
Current weight ≥ HIGH(ON)
Current weight < HIGH(OFF)
HIGH NG
After “t1” time,
“On” during “t5” time
FINISH
After “t1” time,
“On” during “t2” time
Near Zero
Within “EMPTY” range (ON)
t1
TARE(IN)
LOW
HIGH
FINISH
LOW NG
HI NG
EMPTY
Output 1
Output 6
Output 2
Output 3
Output 4
Output 5
LOW
HIGH –FREE FALL
Weight
Near Zero
t2
t5
t5
FINISHED WEIGHT
