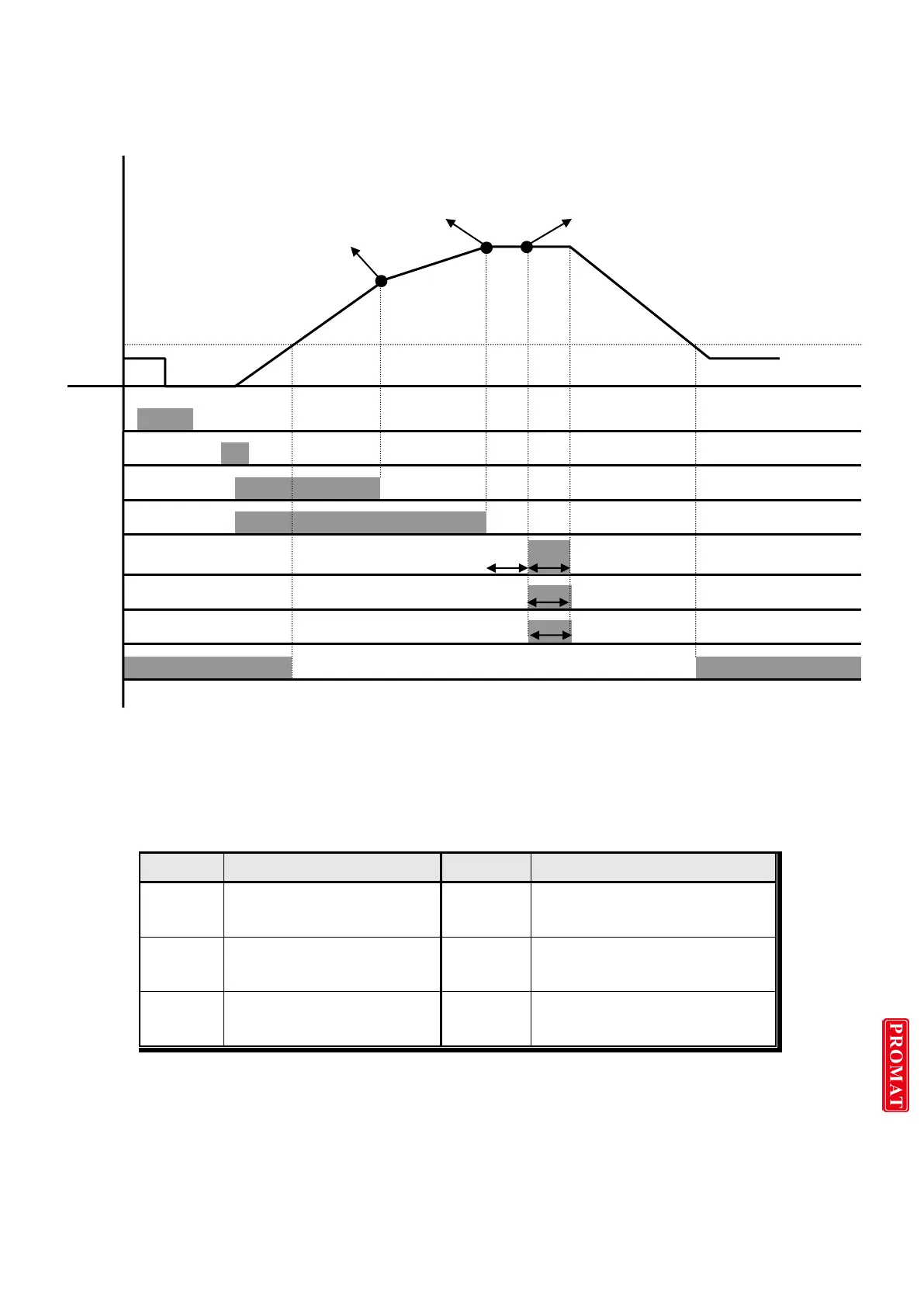

◆ Weighing Mode 2. Packer Mode (F21-02 setting)
1. Set value setting
Sp1(Bulk), Sp2(Bulk + Drib), Sp3(Bulk + Drib + Fall), Sp4(FINAL)
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
4. Relay Output
Relay
Contents
Relay
Contents
LOW
RUN input : ON
Current weight=SP1(OFF)
LOW NG
RUN input : ON
Current weight=SP4(OFF)
HIGH
RUN input : ON
Current weight=SP2(OFF)
HIGH NG
After “t1” time,
“On” during “t2” time
FINISH
RUN input : ON
Current weight=SP3(OFF)
Near Zero
Within “EMPTY” range (ON)
LOW
Weight
Near Zero
TARE(IN)
LOW
HIGH
FINISH
HIGH NG
EMPTY
HIGH – FREE FALL
t2
LOW NG
RUN(IN)
Output 6
Output 1
Output 2
Output 3
Output 4
Output 5
t5
t5
t1
FINISHED WEIGH
