6

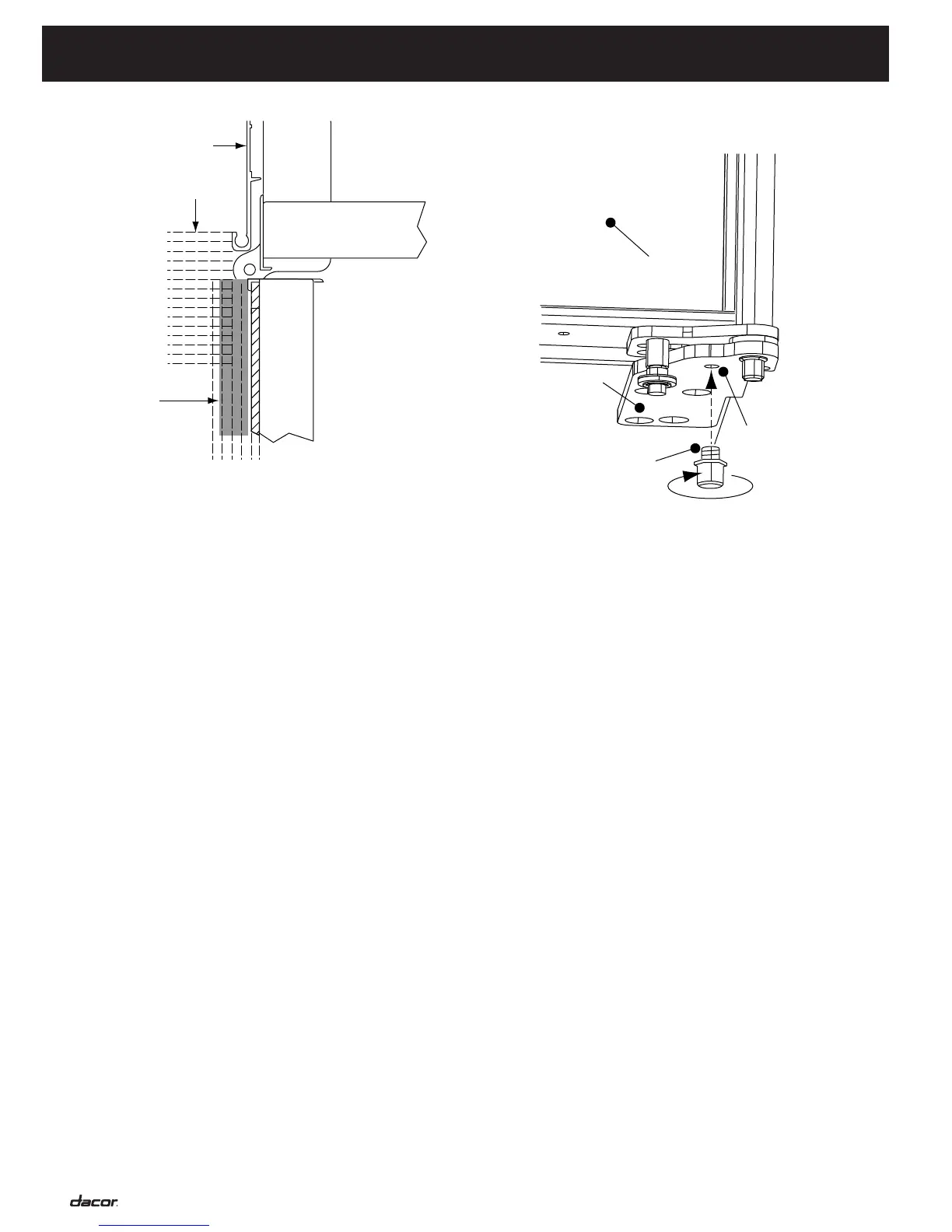

design sPeCifiCaTions
0"
3/4" Overlay
Panel
1/4"
90˚ Door Opening
(Top View)
23 7/8" to Rear
of Cabinet
Cabinet Trim
Door Open
@ 90˚
Door Closed
1/2"
3/4"
1"
1 1/4"
1 1/4"
1"
3/4" 1/2" 1/4"
0"
1 1/2"
1 3/4"
2"
2 1/4"
2 1/2"
2 3/4"
3"
3 1/4"
3 1/2"
90° Door Stop
Both doors are designed to open 135°. To restrict one or both
doors to a 90° opening, use the door stops supplied in this kit.
With the doors closed, screw a door stop into the underside of the
lower hinge plate as illustrated above.
Door
Panel
Lower Hinge
Plate
Door Stop
Mounting
Hole
90° Door
Stop
