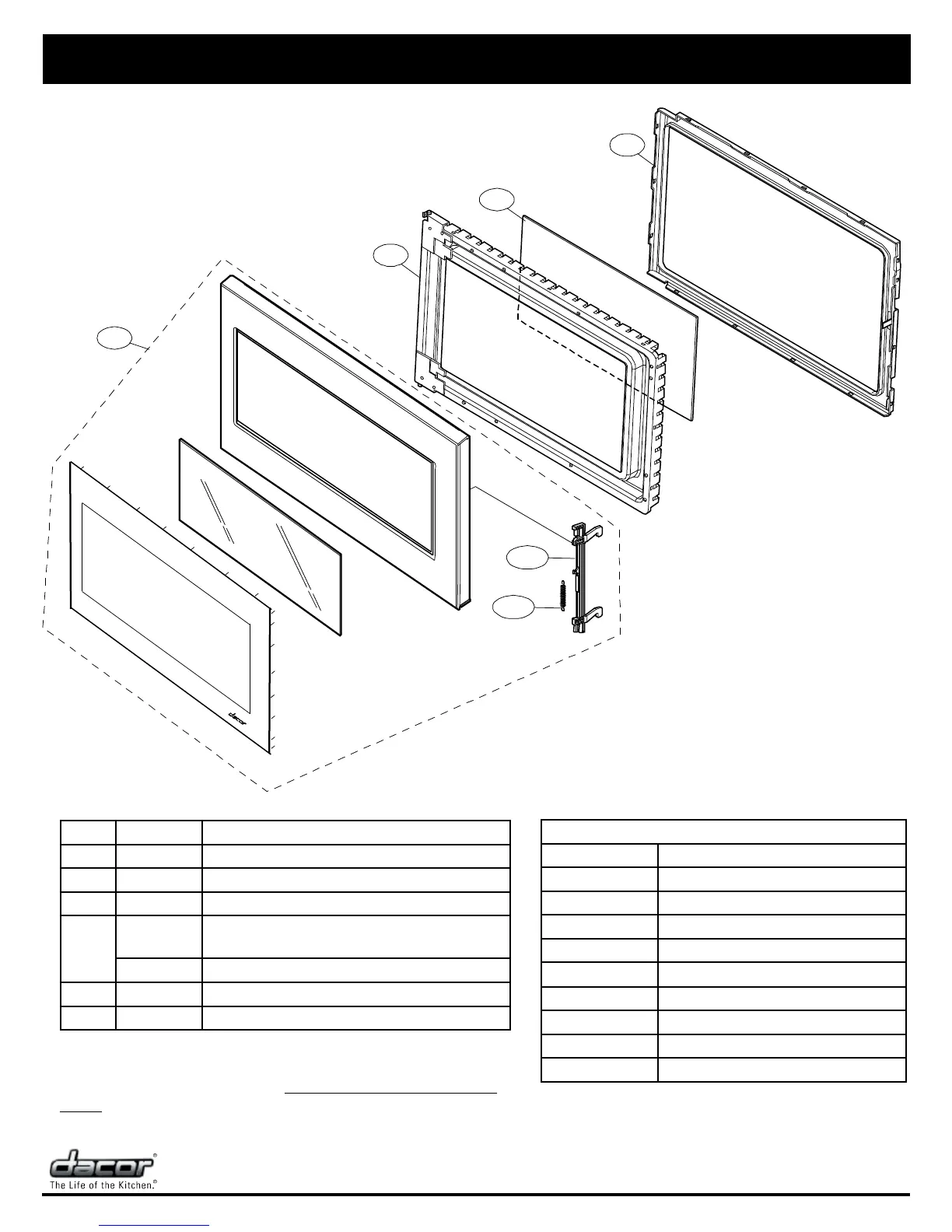

DMT2420 Microwave Door Assembly
Item Part # Description
5-1 See table* DOOR ASSEMBLY*
5-2 86785 LATCH HEAD
5-3 86786 LATCH SPRING
5-4
86783
DOOR PANEL, ALL MODELS EXCEPT
WHITE
66855
DOOR PANEL, WHITE
5-5 86788 SEALER FILM
5-6 86784 CHOKE COVER
* IMPORTANT: There are two different black styles and other
various color schemes. Be careful to match model number to the
correct part number in the table, otherwise the new part will not
match.
5-1
5-3
5-2
5-6
5-4
5-5
Door Style Table
Model Door Door Assembly Part #
DMT2420AG 86782AG
DMT2420B* 86782*
DMT2420BK* 86782BK*
DMT2420BU 86782BU
DMT2420GN
86782GN
DMT2420R 86782R
DMT2420S 86782
DMT2420SG 86782SG
DMT2420TS 86782TS
