Dacor DRT366S Installation Instructions

• Do not operate the cooktop without the knobs and trim rings in place.
• Non-stick coatings, when heated, can be harmful to birds. Remove birds to a separate, well-ventilated room during
cooking.
IMPORTANT - This appliance is equipped with a three-prong grounding plug for your protection against
possible electric shock hazards. Plug it only into a dedicated, grounded three-
prong electrical outlet. It is the responsibility of the customer to make sure the
proper type of outlet is installed. Do not under any circumstances:
• Cut or remove the third (ground) prong from the power cord.
• Use an adapter plug.
• Use an extension cord.
• Use a power cord that is frayed or damaged.
• Connect to an electrical outlet with a ground fault interrupter (GFI).

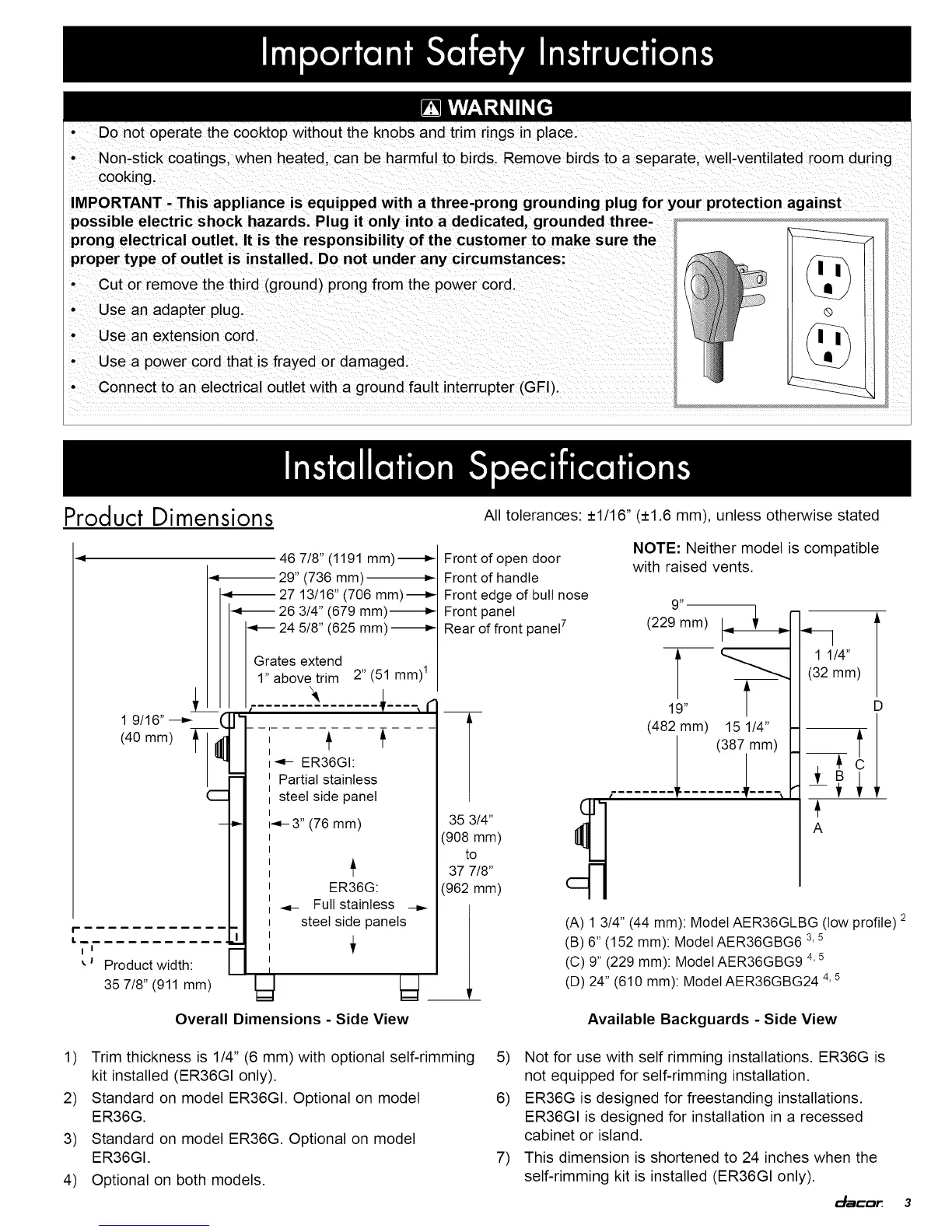

Product Dimensions All tolerances: _+1/16"(_+1.6mm), unless otherwise stated
I-
i ....
I I
L
1 9/16" ---_
(40 mm)
46 7/8" (1191 mm)---_
= 29" (736 mm) .=
-_--27 13/16" (706 mm)---_.-
_-- 26 3/4" (679 mm)---_
_-- 24 5/8" (625 mm) ---_
Grates extend 1
1" above trim 2" (51 mm)
;...... .......!----,r __
I
i_- ER36GI:
i Partial stainless
i
i steel side panel
I
I_q-3'' (76 mm)
Product width:
35 7/8" (911 mm)
t
ER36G:
_- Full stainless
steel side panels
Front of open door
Front of handle
Front edge of bull nose
Front panel
Rear of front panel 7
NOTE: Neither model is compatible
with raised vents.
9"
(229 mm)
t ""-
19" _--
(482 ram) 15 1/4"
(387 ram)
........ !
t
35 3/4" (_
(908 mm)
to
37 7/8"
(962 mm)
[. ....... -_r---.%
1 1/4"
(32 mm)
D
t
A
(A) 1 3/4" (44 mm): Model AER36GLBG (low profile) 2
(B) 6" (152 mm): Model AER36GBG6 3,5
(C) 9" (229 mm): Model AER36GBG9 4,5
(D) 24" (610 mm): Model AER36GBG24 4, 5
Overall Dimensions - Side View
Available Backguards - Side View
1) Trim thickness is 1/4" (6 mm) with optional self-rimming
kit installed (ER36GI only).
2) Standard on model ER36GI. Optional on model
ER36G.
3) Standard on model ER36G. Optional on model
ER36GI.
4) Optional on both models.
5) Not for use with self rimming installations. ER36G is
not equipped for self-rimming installation.
6) ER36G is designed for freestanding installations.
ER36GI is designed for installation in a recessed
cabinet or island.
7) This dimension is shortened to 24 inches when the
self-rimming kit is installed (ER36GI only).
I_BCD_
