5
in s T a l l a T i o n in s T R u C T i o n s

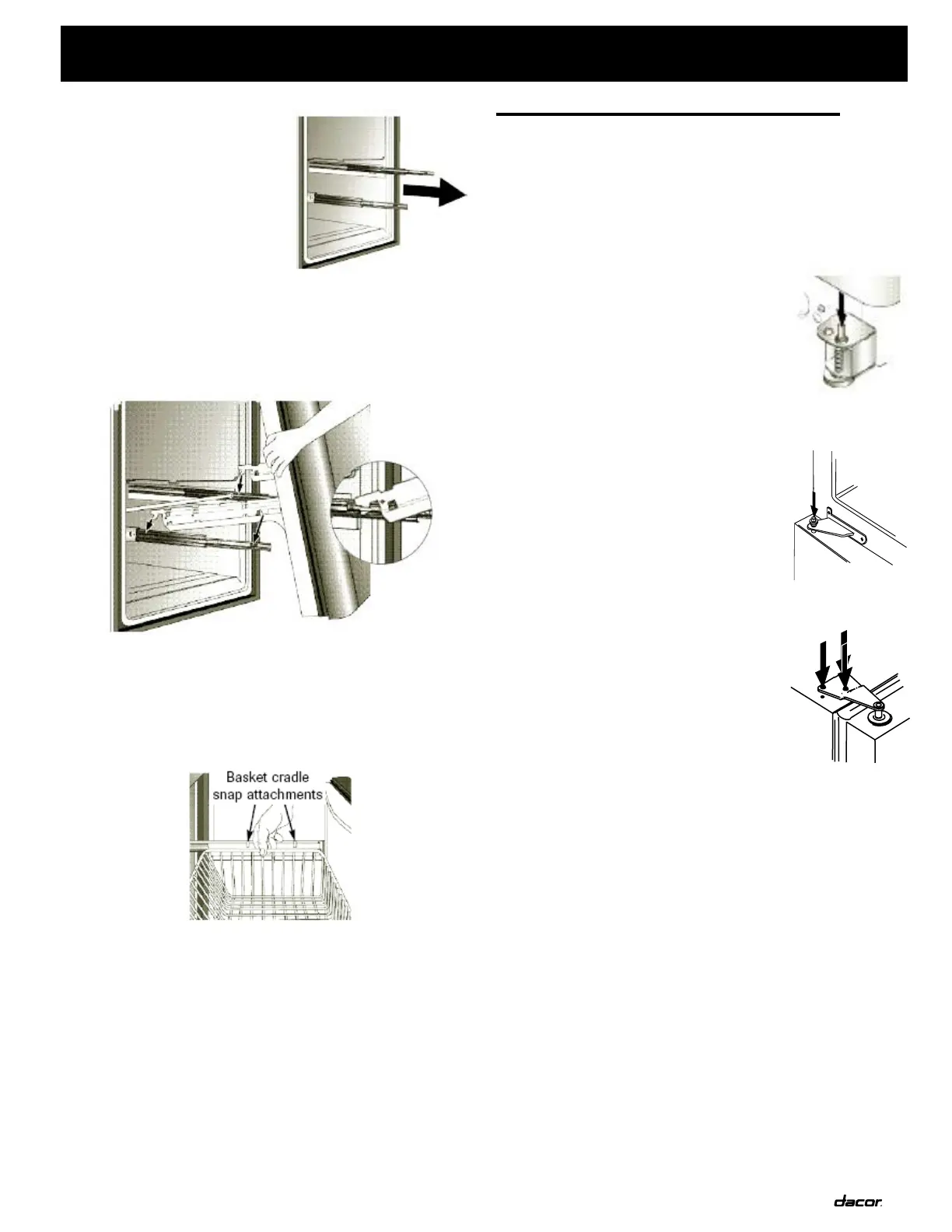

TO INSTALL:
1. Pull both rails out to full extension.
2. While supporting door front, hook
supports into slots located on inside
of each slide.
NOTE
•Allfourdrawerbracketsupportsmustbeintheproperslotsforthe
drawer to function properly.
3. Lower door front into final position.
4. Place the basket cradles back onto the drawer slides. Align basket
cradle snaps with the slots on the drawer brackets and press each
cradle toward the bracket until it clicks.
5. Tilt the lower basket front down and set it down into the basket cradles.
Re i n s T a l l a T i o n o f T h e do o R s
1. Install hinge assemblies:
• Installtophingelooselywith5/16”hex
headscrews.
• InstallcenterhingewithPhillipsscrews.
• Freezer door models: Install bottom hinge
with 3/8” hex head screws.
2. Freezer door models: Insert bottom hinge
pin.
• Locate bottom hinge hole closest to outside
edge of cabinet, and insert bottom hinge
pin. Replace any door shims, if present.
3. Freezer door models: Place hinge side of
freezer door on bottom hinge pin and hold
freezer door upright while installing center
hinge pin with 5/16” hex head driver.
• Replace plastic sleeve.
• Replace any applicable door shims.
• Make sure the hinge pin is installed tightly.
4. Place hinge side of refrigerator door on center
hinge pin.
5. While holding refrigerator door upright, tighten
down top hinge with 5/16” hex head driver
and replace hinge cover.
