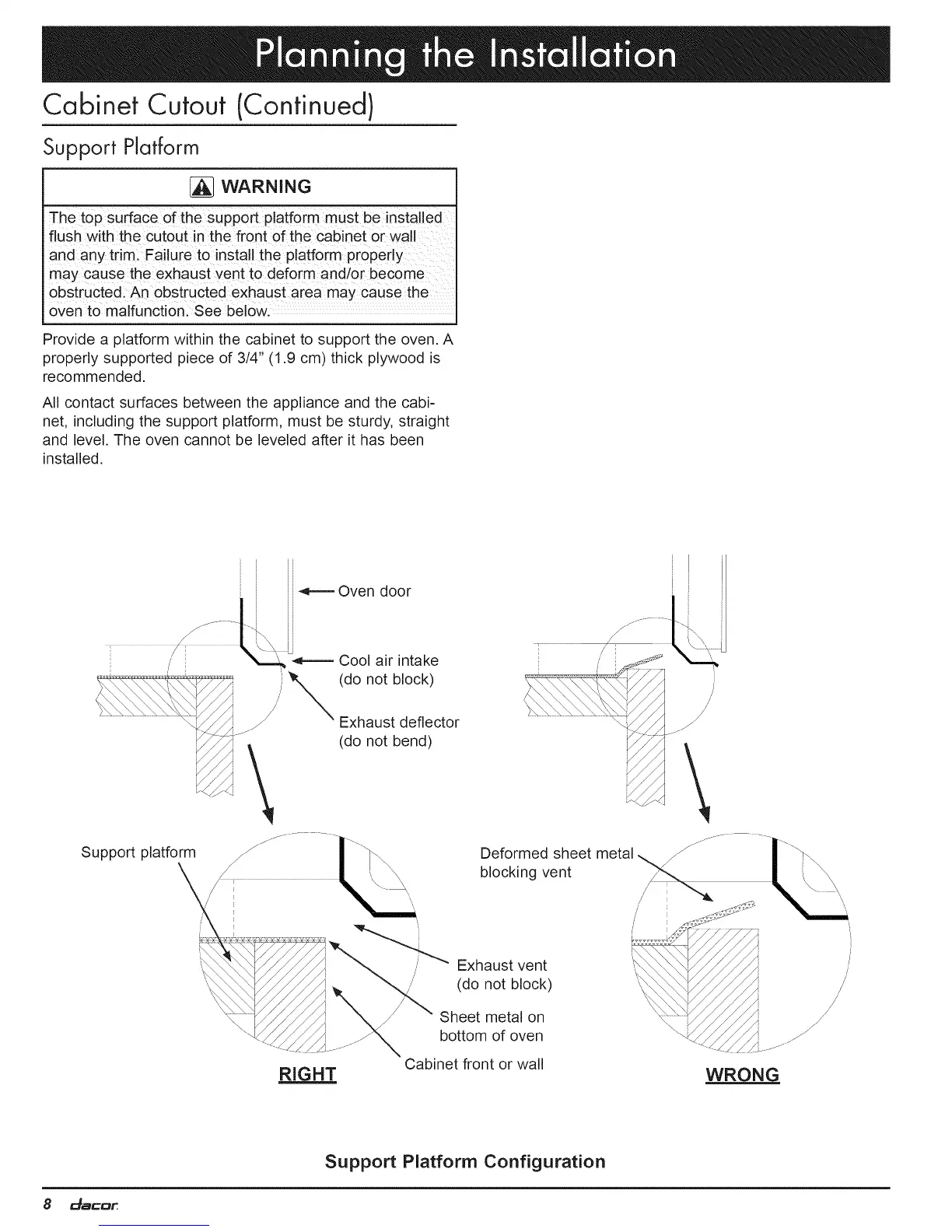

Cabinet Cutout (Continued)
Support Platform
[_ WARNING
The t0p sUrface 0fthe support platform must be !nstalle_
flush with the cutout in the front of the cabinet or wall
and any trim Failure tO install the platform prOperly
may Cause the exhaUst vent to defo[m and/or become
obstructed: An obstructed exhaust area may cause the
oven to malfunction. See below.
Provide a platform within the cabinet to support the oven. A
properly supported piece of 3/4" (1.9 cm) thick plywood is
recommended.
All contact surfaces between the appliance and the cabi-
net, including the support platform, must be sturdy, straight
and level. The oven cannot be leveled after it has been
installed.
_=== Oven door
-_-====Cool air intake
,,"_ (do not block)
/J
\
z Exhaust deflector
(do not bend)
/,
Support platform
RIGHT
blockingDef°rmedventSheetmetali,__:_:._,
xha stvent
(do not block) //"/
Sheet metal on
bottom of oven
j JJ
Cabinet front or wall
WRONG
Support Platform Configuration
8 L::_SCDtt,
