Dacor PCOR30B User Manual

28
PCOR30B
PCOR30R
PCOR30S
Water load cooking test
Make sure the oven has been plugged in at least five minutes before checking sensor cook operation.
The cabinet should be installed and screws tightened.
(1) Fill approximately 200 milliliters (7.2 oz) of tap water in a 1000 milliliter measuring cup.
(2) Place the container on the center of tray in the oven cavity.
(3) Close the door.
(4) Touch SENSOR COOK pad. And touch the number pad 1. And touch the start pad. The oven will
operate for the first 32 seconds, without generating microwave energy.
NOTE: ERROR will appear if the door is opend or STOP/CLEAR pad is touched during first stage of
sensor cooking.
(5) After approximately 32 seconds, microwave energy is produced, oven should turn off after water
is boiling (bubling).
If the oven does not turn off, replace the AH sensor or check the control unit, refer to explanation below.
TESTING METHOD FOR AH SENSOR AND/OR CONTROL UNIT
To determine if the sensor is defective, the simplest method is to replace it with a new replacement
sensor.
(1) Disconnect oven from power supply and remove outer case.
(2) Open the door and block it open.
(3) Discharge the high voltage capacitor.
(4) Remove the AH sensor.
(5) Install the new AH sensor.
(6) Reconnect all leads removed from the components during replacing.
(7) Re-install the outer case.
(8) Reconnect the oven to the power supply and check the sensor cook operation proceed as follows:
9-1. Fill approximately 200 milliliters (7.2 oz) of tap water in a 1000 milliliter measuring cup.
9-2. Place the container on the center of tray in the oven cavity.
9-3. Close the door.
9-4. Touch SENSOR COOK pad. And touch the number pad 1. And touch the start pad.
9-5. The oven will turn off automatically after the water is boiling (bubling).
If new sensor dose not operate properly, the problem is with the control unit.
CHECKING CONTROL UNIT
(1) Disconnect oven from power supply and remove outer case.
(2) Open the door and block it open.
(3) Discharge the high voltage capacitor.
(4) Disconnect the wire leads from the cook relay.
(5) Disconnect the sensor connector that is mounted to lower portion of control panel.
(6) Then connect the dummy resistor circuit (see fig.) to the sensor connector of control panel.
(7) Reconnect the oven to the power supply and check the sensor cook operation proceed as follows:
7-1. Touch SENSOR COOK pad. And touch the number pad 1. And touch the start pad.
7-2. The control panel is in the sensor cooking operation.
7-3. After approximately 32 seconds, push plunger of select switch. This condition is same as
judgement by AH sensor.
7-4. After approximately 3 seconds, cooking operation turns off, an audible signal will sound,
and the display will then revert to the time of day.
If the above is not the case, the control unit is probably defective.
If the above is proper, the AH sensor is probably defective.
TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST
R1,R2 : 22 ohm ± 1% 1/2W
R3 : 10k ohm ± 5% 1/4W
R4 : 1M ohm ± 5% 1/4W
Plunger
NC
NO
COM
COM
NO
NC
R3 R4
R1
R2
1
2
3
F-1
F-2
F-3
To connector (F)
on Control Unit.
CONNECTOR

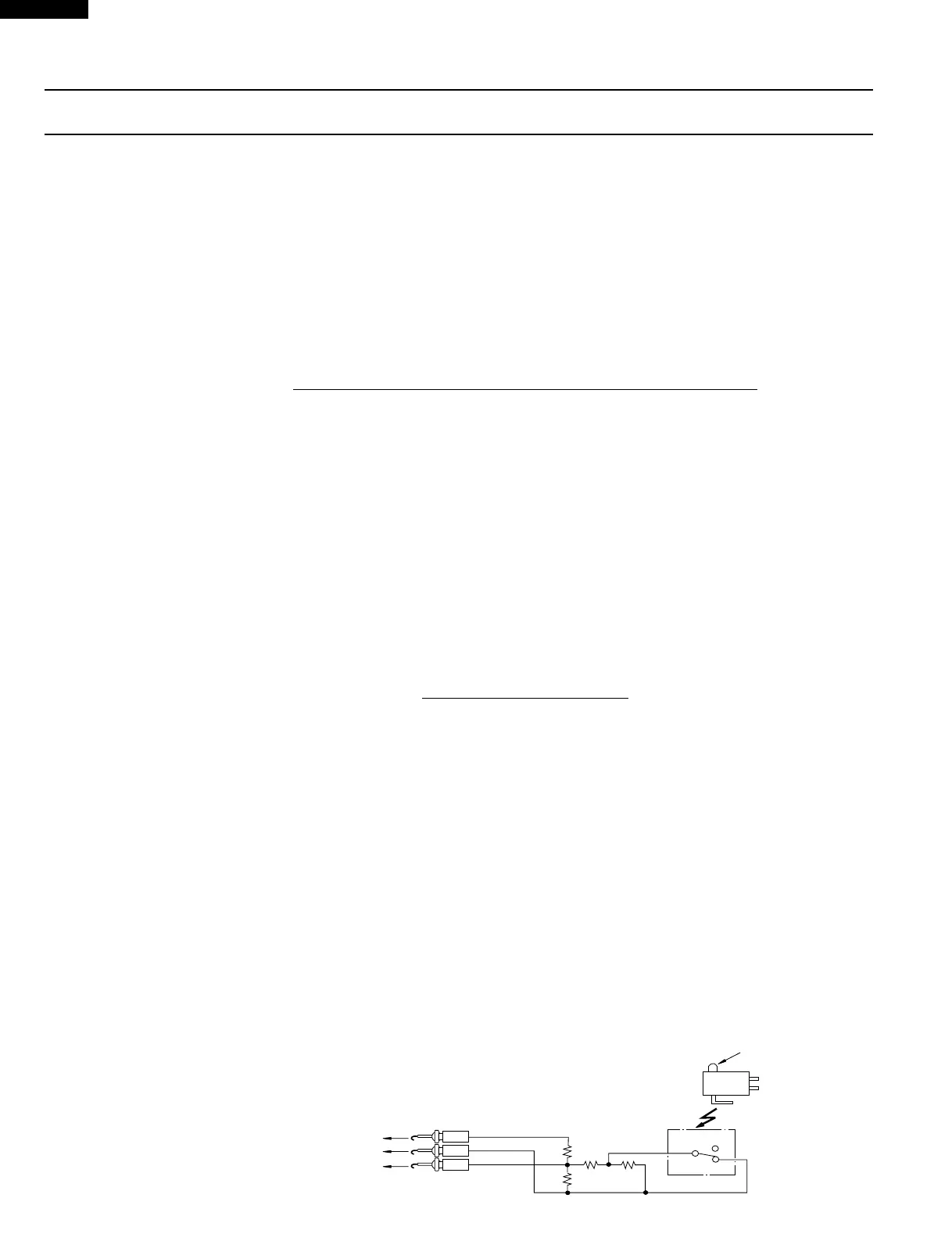

Sensor Dummy Resistor Circuit
