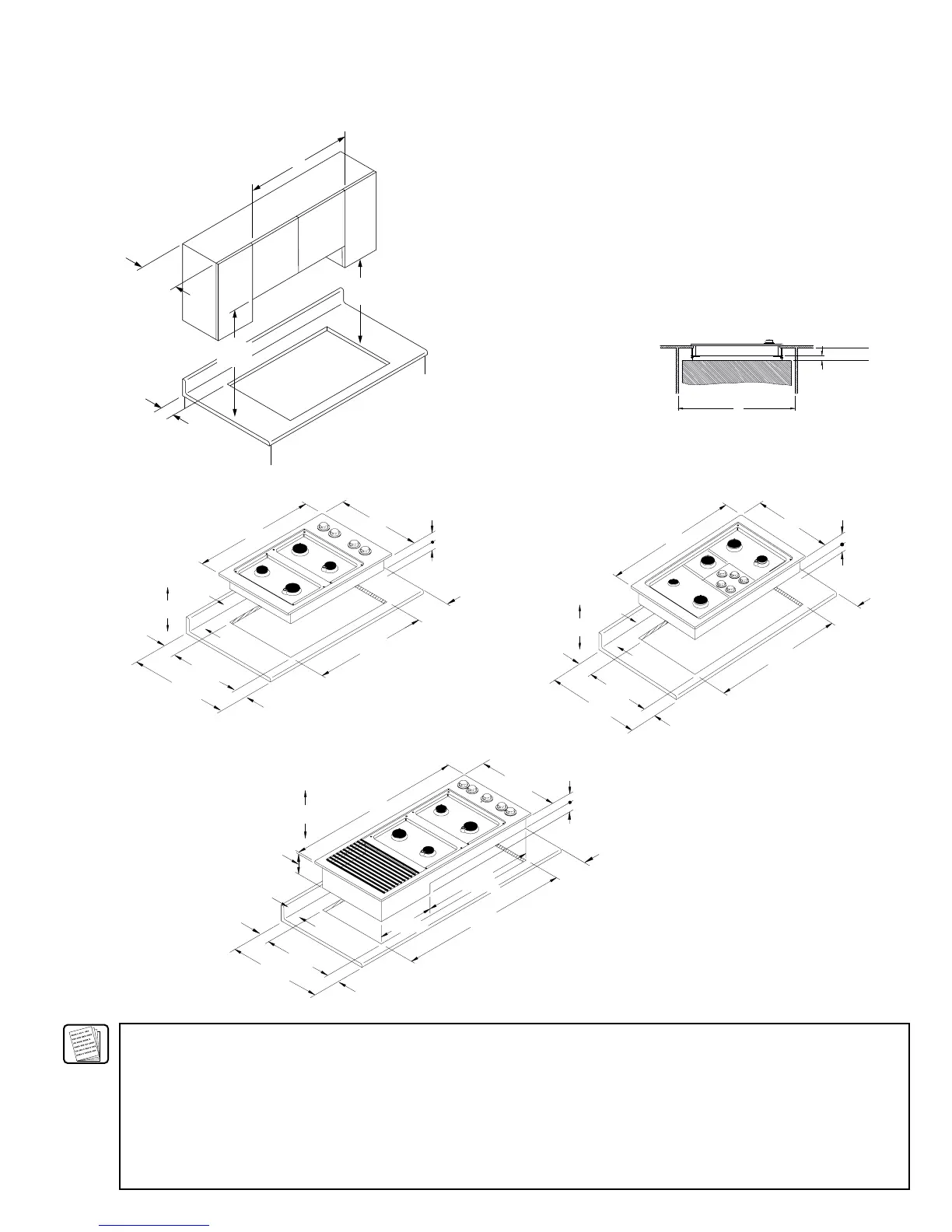

STEP 2
Planning the Installation
Cabinet and Countertop Preparation
Clearance to Combustibles
Cutout Dimensions for the
SGM304
Plan the installation so that the electrical connection, gas shut-off valve, and pressure regulator are accessible from the front of the cabinet.
1/4” (6mm) Minimum
clearance to combustible
surfaces
B
"B"
Model Minimum
SGM304 29" (737mm)
SGM364 35 1/4" (895mm)
SGM365 35 1/4" (895mm)
PGM365 35 1/4" (895mm)
SGM466 46" (1168mm)
SGM464GG 46" (1168mm)
Under Cabinet Clearances
Cutout Dimensions for the
SGM364, SGM365, and PGM365
(SGM365 shown)
Cutout Dimensions for the
SGM466 and SGM464GG
(SGM464GG shown)
NOTES:
1.The only downdraft approved for use with the SGM464GG is the Dacor ERV/PRV. Dacor
recommends a 54 inch wide hood with a minimum 1100 CFM blower.
2.The SGM464GG cooktop is approved for 2” (51mm) min. clearance to combustibles below the
chassis.
3.For the SGM464GG, a noncombustible material is to be installed on the underside of a cabinet
located above the grill section in accordance with local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
