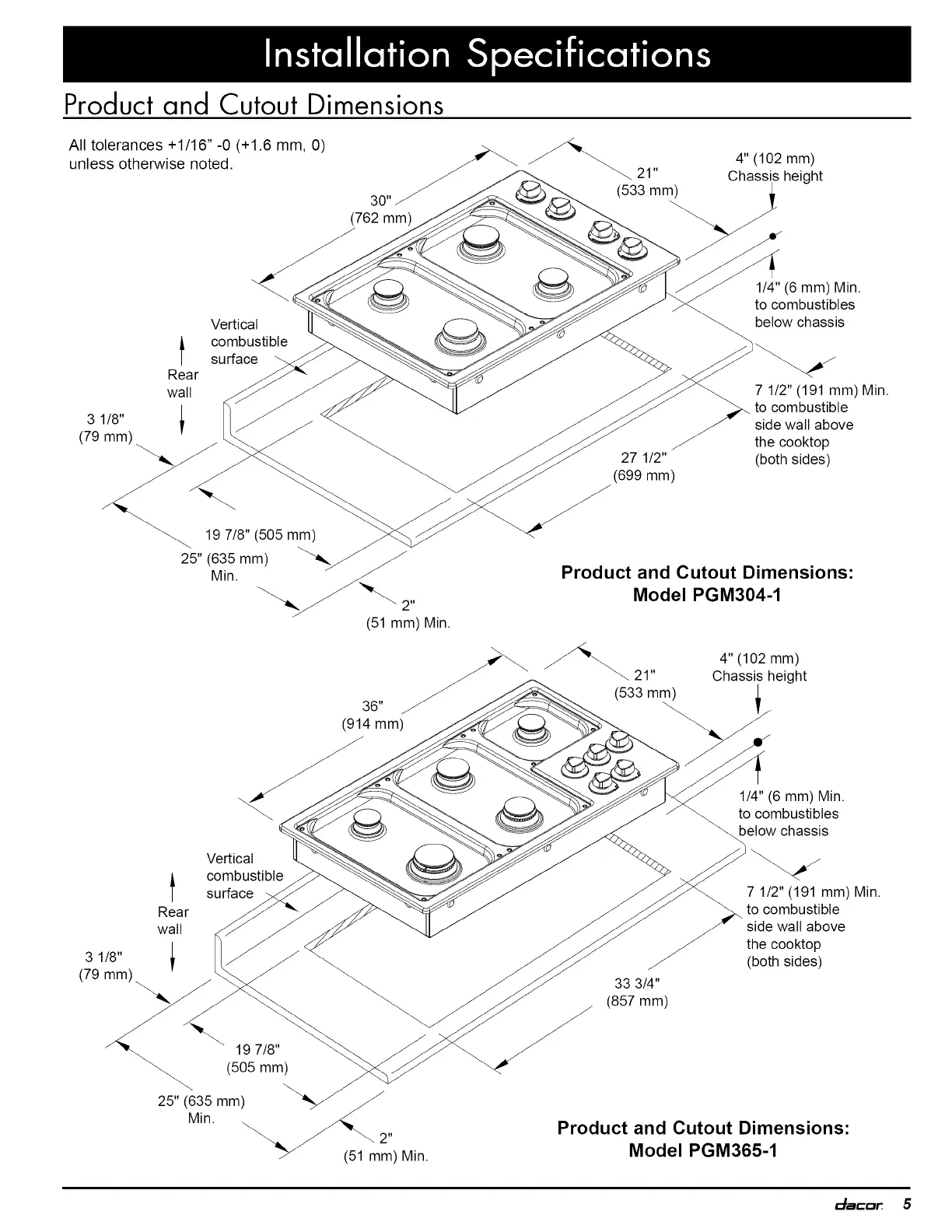

Product and Cutout Dimensions
All tolerances +1/16"-0 (+1.6 mm, 0)
unless otherwise noted.
30"
(762 mm)
4" (102 mm)
21"
\. Chassis height
(533 mm)
3 1/8"
(79 mm)
3 1/8"
(79 mm)-.
Vertical
I combustible
surface
Rear
wall
19 7/8" (505 mm)
(635 mm) _
25"
Min.
(51 mm) Min.
1/4" (6 mm) Min.
to combustibles
below chassis
7 1/2" (191 mm) Min.
to combustible
side wall above
the cooktop
27 1/2" (both sides)
(699 mm)
J
Product and Cutout Dimensions:
Model PGM304-1
t
Rear
wall
i
Vertical
combustible
surface
19 7/8"
(505 mm)
25" (635 mm) _ j/
Min. . //_ 2"
_ (51_mm) Min.
4" (102 mm)
21" Chassis height
(533 mm)
33 3/4"
(857 mm)
1/4" (6 mm) Min.
to combustibles
\ below chassis
7 1/2" (191 mm) Min.
to combustible
side wall above
the cooktop
(both sides)
Product and Cutout Dimensions:
Model PGM365-1
