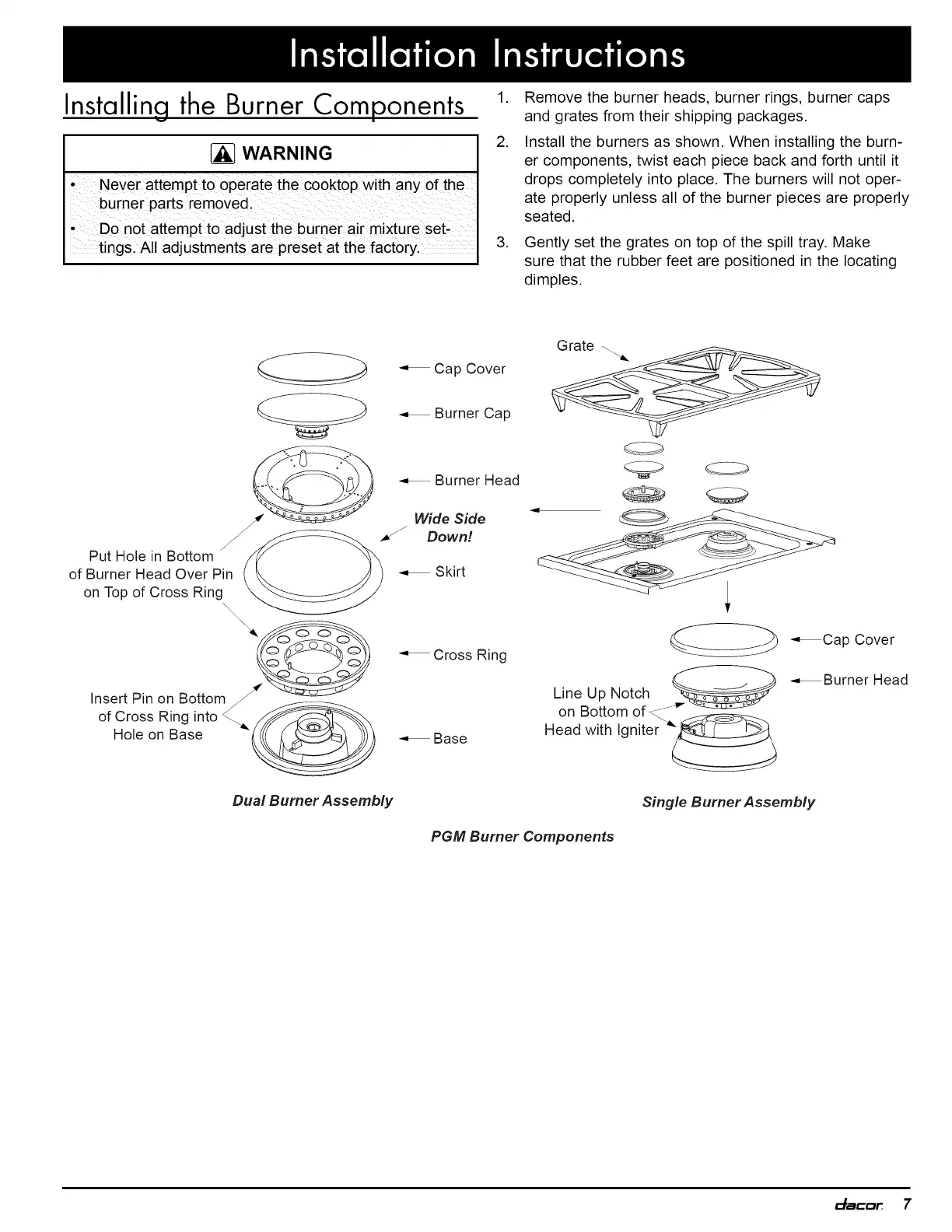

Installing the Burner Components
WARNING
Never attempt t0 operate the cooktop With anY of the
burner parts removed
, Do not attempt to adjust the burner air mixture set-
tingsl All adjustments are preset at the factorYl
,
,
,
Remove the burner heads, burner rings, burner caps
and grates from their shipping packages.
Install the burners as shown. When installing the burn-
er components, twist each piece back and forth until it
drops completely into place. The burners will not oper-
ate properly unless all of the burner pieces are properly
seated.
Gently set the grates on top of the spill tray. Make
sure that the rubber feet are positioned in the locating
dimples.
Put Hole in Bottom
of Burner Head Over Pin
on Top of Cross Ring
\
Ins;LtrP_nR_nB°tnttom__
Hole on Base "l ((( ( £_--W_ II1\
Dual Burner Assembly
Cap Cover
Grate -_
Burner Cap
Burner Head
Wide Side
Down!
Skirt
Cross Ring
Base
_Cap Cover
Line Up Notch
_Burner Head
on Bottom of __,__
Head with Igniter "_
Single Burner Assembly
PGM Burner Components
_mCD_ 7
