Dadant M00432 - Specifications



 

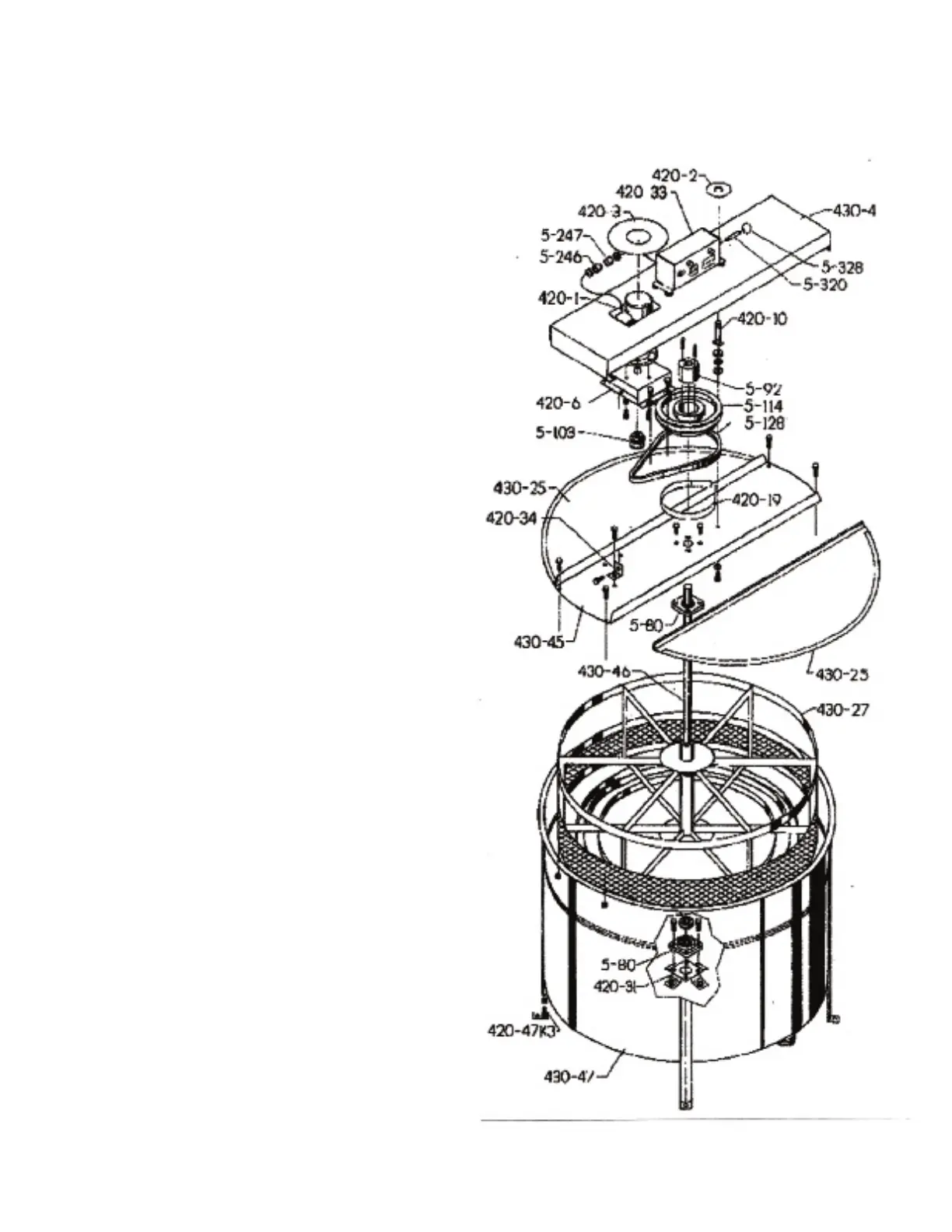

04-42001 1/2 HP Motor Assembly
04-42002 Brake Cover Washer
04-42003 Motor Cover Washer
04-42004 Belt Guard
04-42006 Motor Mount
04-42010 Brake Post
04-42019 Brake Band w/pin
04-43027 Smooth Replacement Reel, Smooth
04-43027 Replacement Reel, Segmented
04-42031 Boom Bearing Support (pre 2000)
04-43205 Boom Bearing Support (aer 2000)
M00443 Electronic Speed Control
04-42034 Tension Adjuster
04-43045 Top Channel
04-43025 Hinged Cover Assembly
04-43047 Replacement Tank
04-43048 Reel Sha 25’’
03-50080 1-3/16” Flanged Bearings Top & Boom
03-50089 1-3/16” Flanged Bearings (aer 2000)
03-50092 1 3/16’’ Taperlock Bushing
03-50103 Motor Pulley
03-50114 3-Groove Brake Pulley
03-50128 44’’ Belt
03-50246 Male Turnlock Connector
03-50247 Female Turnlock Connector
03-50320 Brake Post Handle
03-50328 Brake Knob
420-47K3 Adjustable Leg (2)

Tank Diameter 52’’ (1320.8mm)
Tank Height 36’’ (914.4mm)
Pipe Thread Outlet 3’’ (76.2mm)
Reel Diameter 48’’ (1219.2mm)
Reel Depth 16’’ (406.4mm)
Reel Axis, Sha Diameter 1 3/16’’ (30.2mm)
½ Horsepower—90 Volt DC Permanent Magnet Motor
Automac Advancing 0-90 Volt DC Output Speed Control
Plugs Into 120 Volt AC Outlet And Draws 7 Amps Maximum
