POSITION CONTROL LEVER

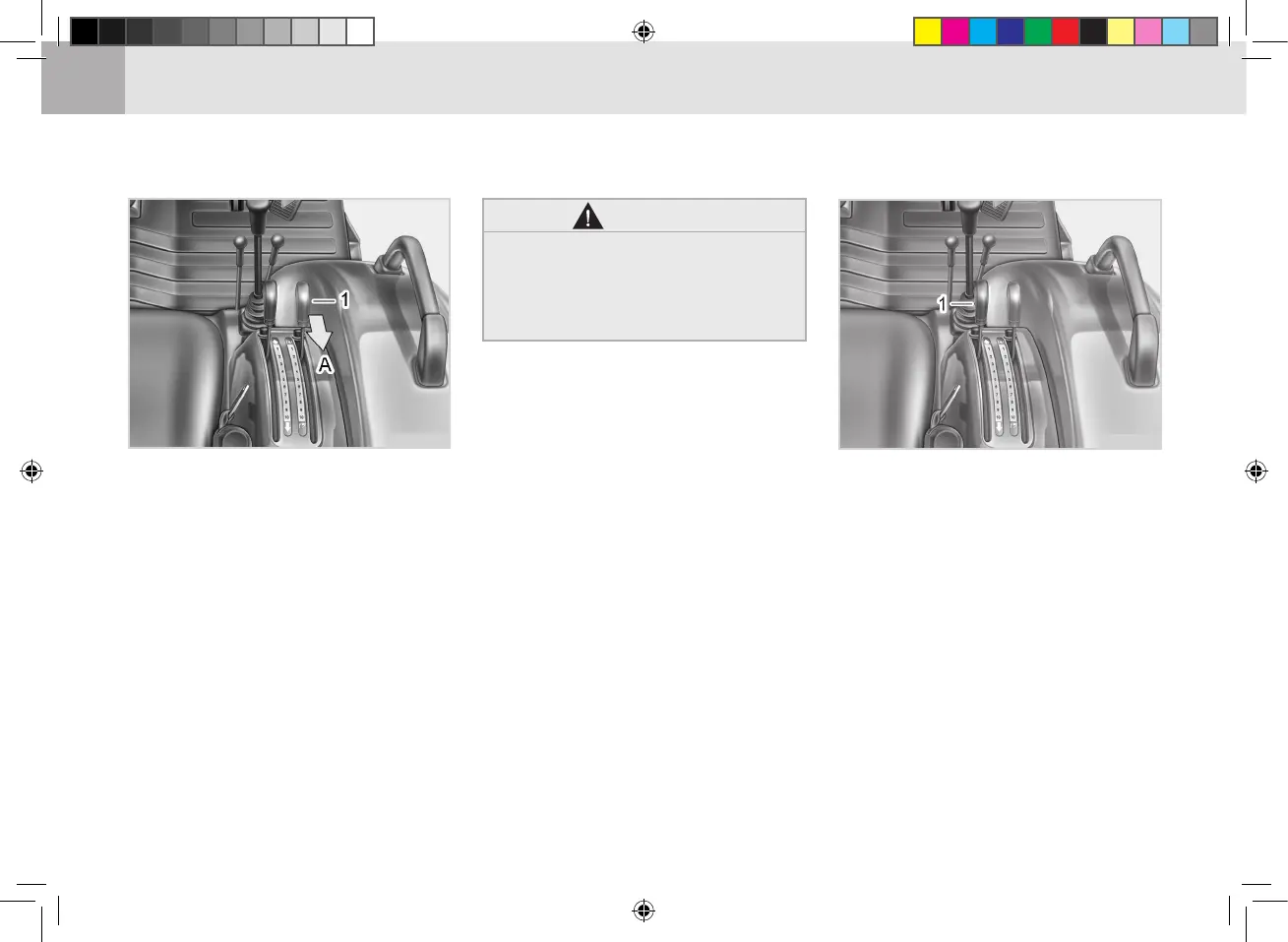

(1) Position Control Lever
(A) Lifting
t46O523a
The position control lever is used
to keep the plowing depth constant
during work.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to "Ini-
tial Operation" in Chapter 5.
• Make sure that there is no-
body or not obstacle around
the three-point linkage before
controlling position lever.
WARNING
DRAFT CONTROL LEVER
The draft function can be used for
the plow which is installed to the low-
er link. (Lifting arm)
(1) Draft Control Lever
t46O702a
