Do not hold the lever in the
“pull” or “push” position
once the remote cylinder has
reached the end of the stroke,
as this will cause oil to flow
through the relief valve.
•
To enlarge the front loader
output, when using the hy-
draulic system of the tractor,
do not operate the boom and
the bucket cylinder simultane-
ously
IMPORTANT
te7O443a

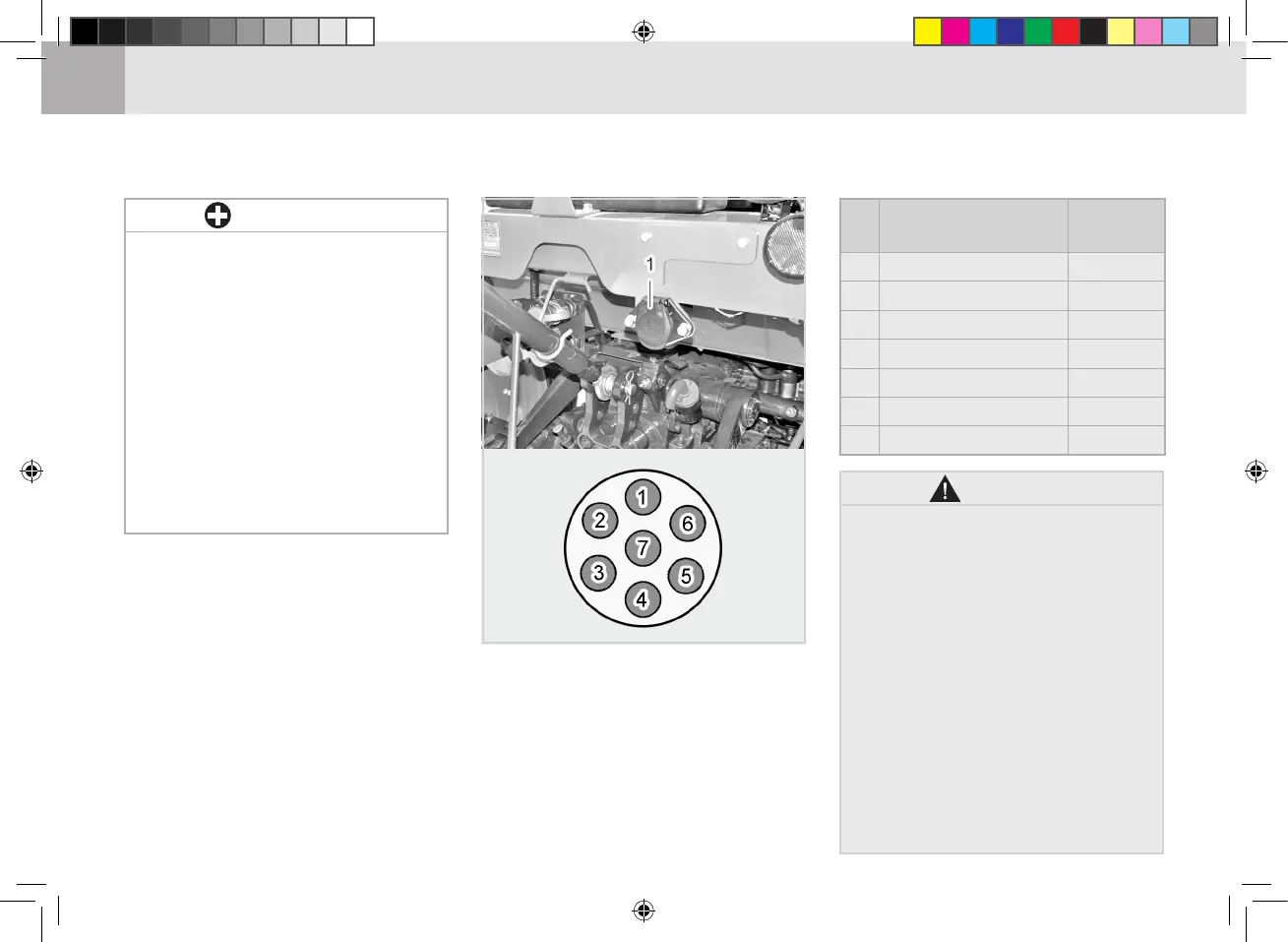

7-PIN POWER OUTPUT SOCKET (OPTION)
The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) Power Connector
• When driving on a road with
an implement which has ex-
terior lamps, such as a trailer,
make sure to turn on those
lamps by connecting them to
the 7-pin socket in order to
prevent an accident.
• Make sure to check for proper
operation after connecting the
7-pin socket to the trailer. It
may not operate depending on
the trailer specications. Con
-
sult your local KIOTI Dealer
for this issue.
WARNING
NO CIRCUIT
COLOR OF
WIRE
1 Earth L
2 Tail, Number plate Br
3 Left turn signal G
4 Stop R
5 Right turn signal Y
6 Sidelight B
7 Spare L
