The throttle lever is located beside the right-
handlebar grip and is operated by using the right-
hand thumb. The lever is spring loaded and will
return to the idle position when you remove your
thumb from the lever. To accelerate the unit,
simply press the lever forward to open the throttle
slide in the carburetor. To slow the unit, reduce the
pressure on the lever or remove your thumb and
the throttle will return to the idle position
automatically.

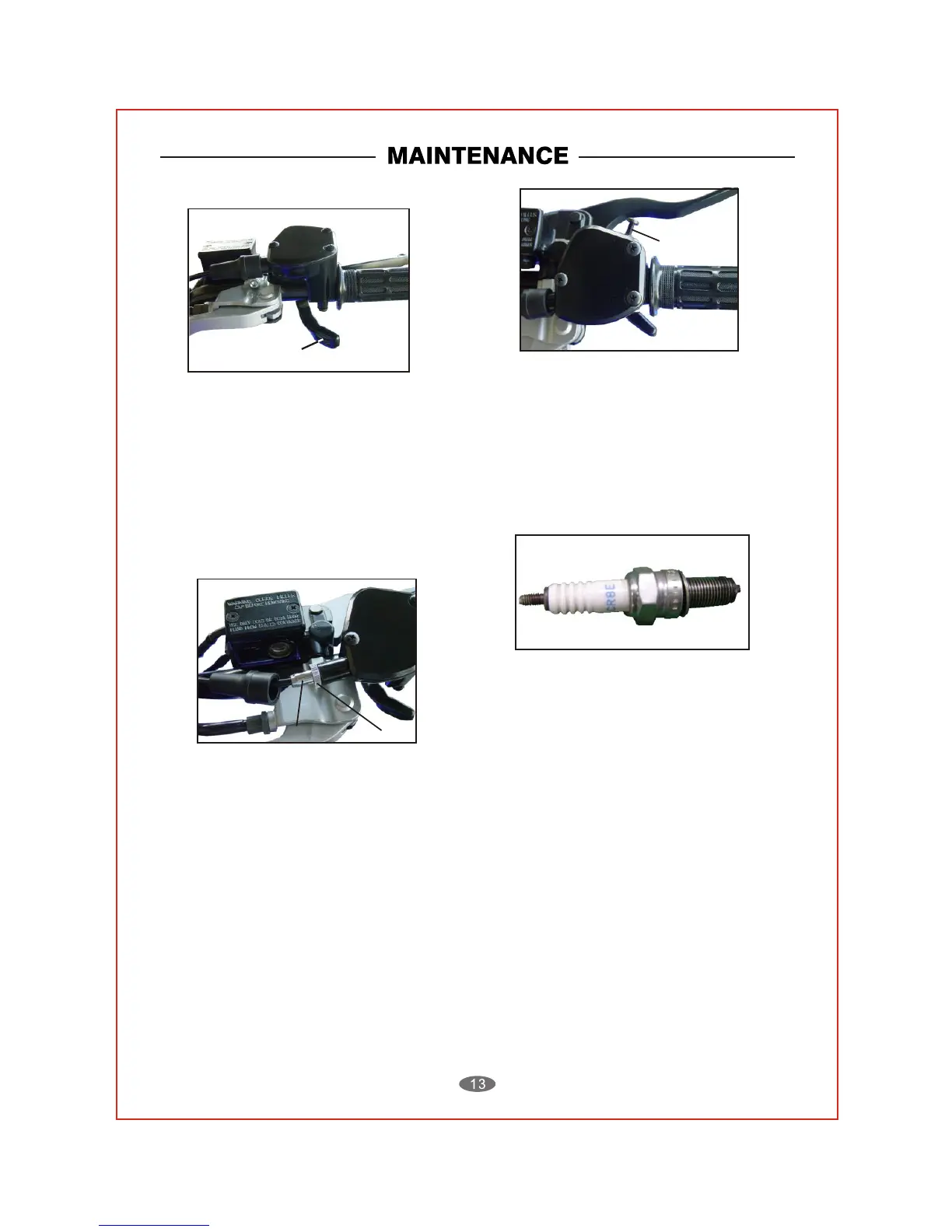

THROTTLE LEVERTHROTTLE LEVER
Adjusting the throttle cable
The cable should be adjusted to allow for " free
travel before the throttle engages the carburetor
throttle slide. Slide the adjuster cover down the
cable to uncover the adjuster assembly. To adjust
the cable's free travel, loosen the locking nut of
the cable adjuster, and turn the adjuster nut until
there is " free travel in the lever. Tighten the
locking nut to secure the adjusting nut. Slide the
cover back over the adjuster assembly.
1
/
8
1
/
8
Throttle
Locking Nut
Adjuster Nut
The speed of the unit can be adjusted by
adjusting the throttle stop screw to limit throttle
travel. Loosen the throttle stop screw locking nut
and turn the throttle stop screw clockwise to
reduce the throttle travel thus reducing the
maximum speed of the unit. Turning the stop
screw counter clockwise will increase the throttle
travel thus increasing the maximum speed of the
unit. Tighten the stop screw locking nut when the
desired throttle travel has been established.
Throttle Stop
Adjustment Boit
SPARK PLUGSPARK PLUG
Replace spark plug at the beginning of each
season with a replacement plug NGK-CR8E.
Disconnect spark plug wire.
Clean dirt from around spark plug base with
brush or compressed air.
Remove spark plug with spark plug wrench.
Set the spark plug gap on the new plug to
0.023"
Install the new plug screwing it in finger tight
and then use the plug wrench to screw the
plug in another turn.
Inspect the spark plug wire for cuts, nicks or
other damage. Replace as needed.
1
/
2
