5. To remove control panel parts.
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove two screws which secure the timer assembly.
3) Remove the timer assembly.
4) Pull out the timer knob from the control panel.
5) Pull out the timer couple from the timer.
6) Remove the screw which secure the V.P.C coupler.
7) Pull out the V.P.C coupler, V.P.C knob and flat spring from the control panel.
8) Remove two switches from the control panel.
9) Remove the decorator c-panel from the control panel.
10) Reverse the above steps for reassembly.
REF NO. PART CODE PART NAME DESCRIPTION Q'TY REMARK
B01 3513402650 KNOB VPC ABS XR-401, H-2938 1 KOG-57470S
B02 3511603930 DECORATOR C-PANEL STS T0.6 1
B03 3516003950 SPEICAL DOUBLE TAPE SI-161 T0.15 1
B04 3516719070 CONTROL-PANEL ABS XR-401, H-2938 1
B05 4415A66910 SW MICRO VP-531A-OF/SZM-V16-FA-61 1
B06 3515101600 SPRING FLAT SUS 301 T0.5 1
B07 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 1
B08 3518205100 TIMER KN60MKD 12E-P 1
B09 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 2
B10 3517400400 COUPLER TIMER POM 1
B11 3517400510 COUPLER VPC KNOB POM 1
B12 4415A17352 SW MICRO VP-533A-OF SPNO #187 200G 1
B13 3513402550 KNOB ABS XR-401, H-2938 1 KOG-57470S

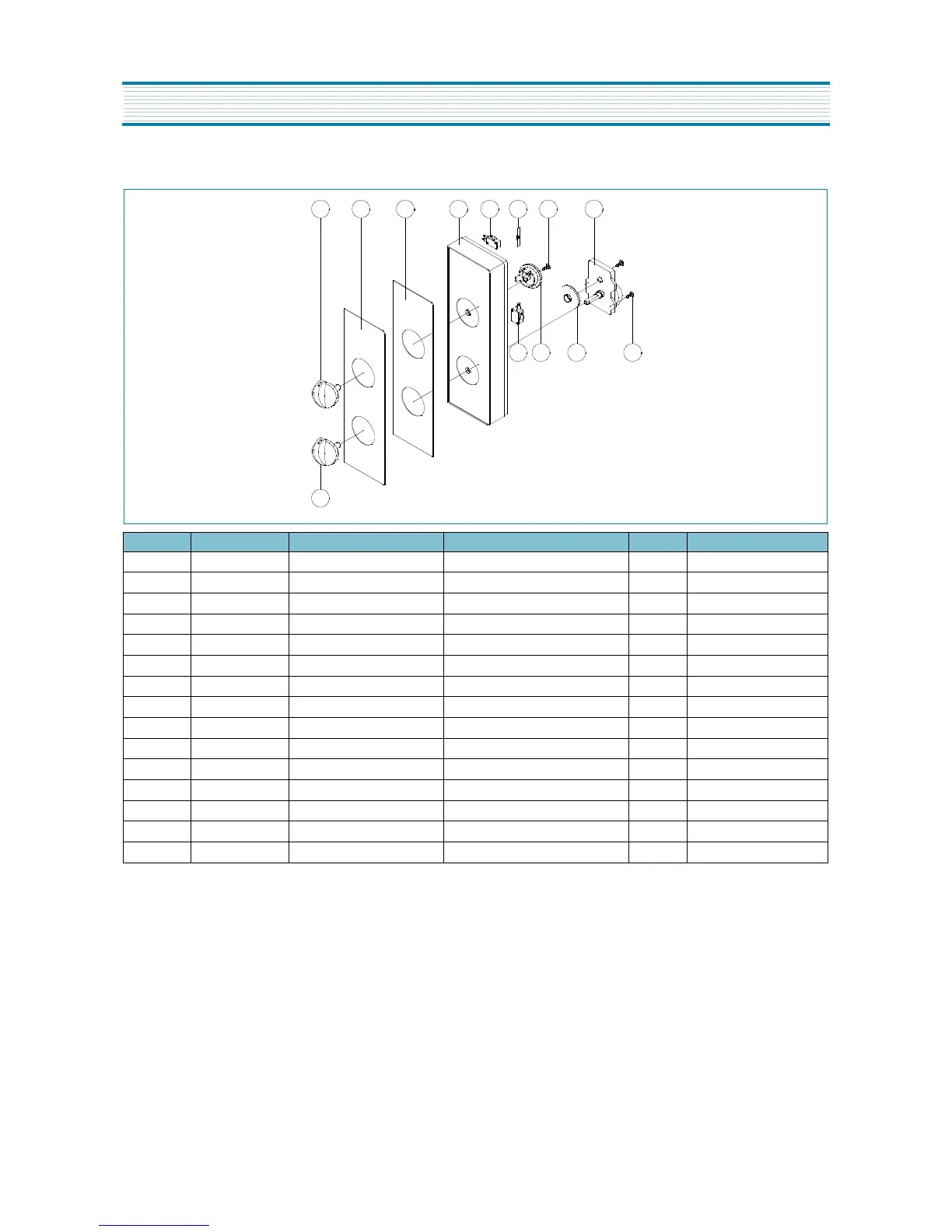

DISASSEMBLY AND ASSEMBLY
B08B07B05B04B02B01 B03 B06
B11 B10 B09
B13
B12
CONTROL-PANEL ASSEMBLY
KOG-57470S : 3516720350
