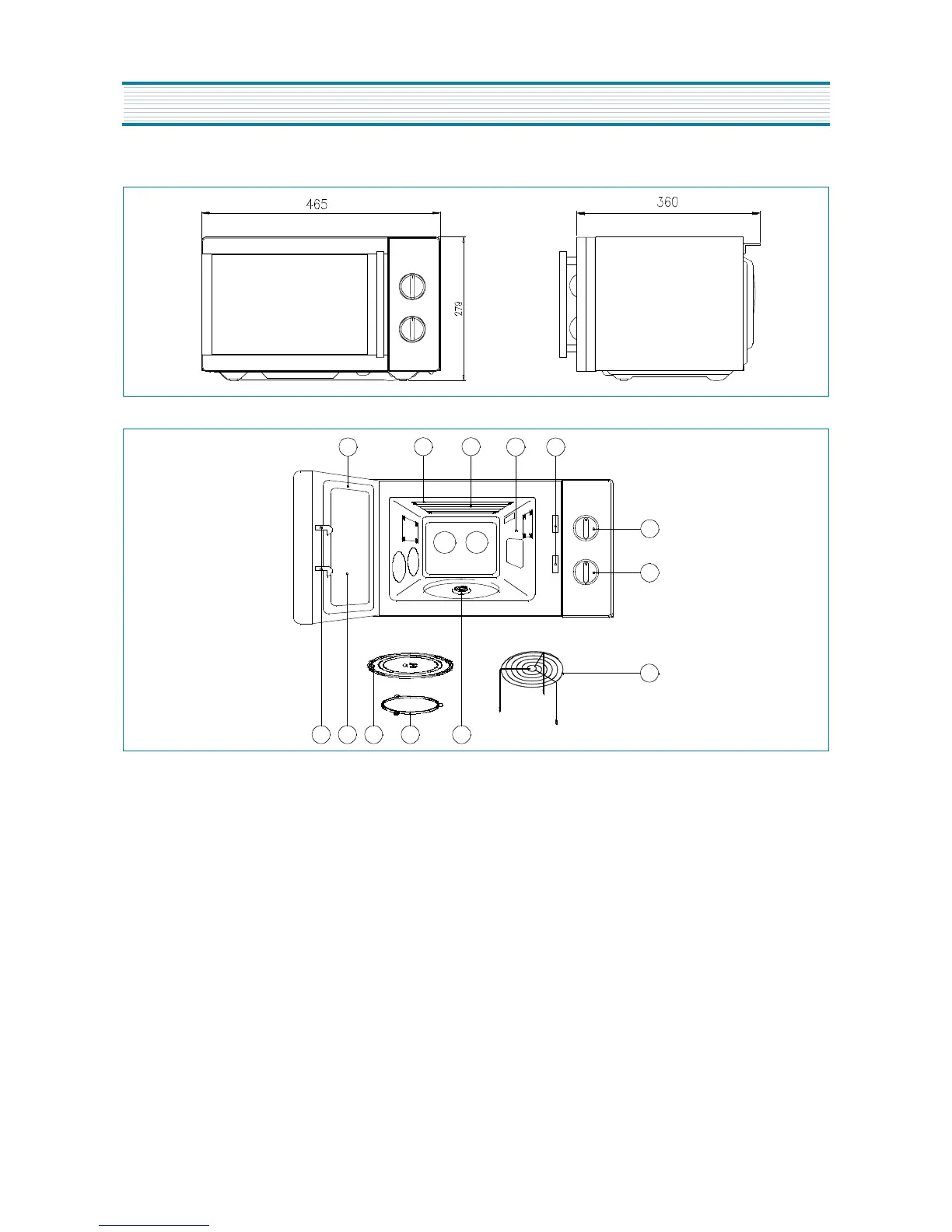

EXTERNAL VIEW
1. OUTER DIMENSION
2. FEATURE DIAGRAM
1) Door seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage.
2) Cover Heater
3) Heating Element
4) Oven cavity
5) Safety interlock system
6) Knob V.P.C - Used to select microwave poer level.
7) Knob timer - Used in setting cooking time for all functions.
8) Metal Rack
9) Coupler - This fits over the shaft in the center of the ovens cavity floor.
This is to remain in the oven for all cooking.
10) Roller guide - This must always be used for cooking together with the glass cooking tray.
11) Glass cooking tray - Made of special heat resistant glass.
Food in a proper receptacle is placed on this tray for cooking.
12) Door viewing screen - Allows viewing of food.
The screen is designed so that light can pass through, but not the microwave.
13) Door hook - When the door is closed, it will automatically shut off.
If the door is opened while the oven is operating, the magnetron will immediately stop operating.
7
6
8
910
111213
541
2
3
