Vehicle Systems Disassembly & Assembly
6.

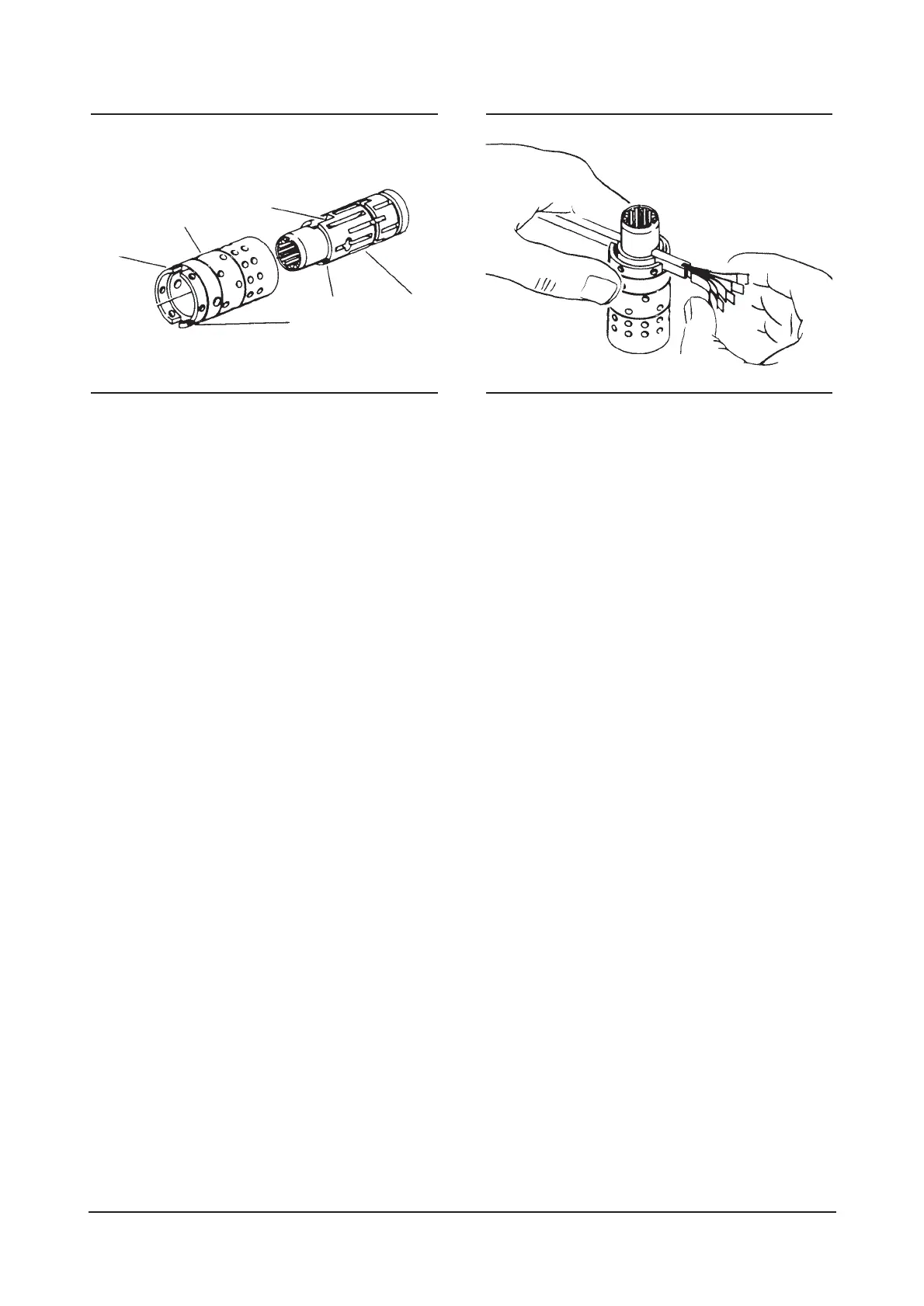

Assemble spool and sleeve carefully so that the
spring slots line up at the same end. Rotate spool
while sliding parts together. Some spool and
sleeve sets have identification marks, align these
marks. Test for free rotation. Spool should rotate
smoothly in sleeve with finger tip force applied at
splined end.
7. Bring spring slots of both parts in line and stand
parts on end of bench. Insert spring installation
tool through spring slots of both parts. Tool is.
Position 2 pairs of centering springs on bench so
that extended edge is down and arched center
section is together. In this position, insert one end
of entire spring set into spring installation tool, with
spring notches facing sleeve.
8. Compress extended end of centering spring set
and push into spool sleeve assembly withdrawing
installation tool at the same time.
9. Center the spring set in the parts so that they
push down evenly and flush with the upper sur-
face of the spool and sleeve.
10. Install pin through spool and sleeve assembly
until pin becomecs flush at both sides of sleeve.
51
Marks
Identification
Control
Spool
Spring Slot
Control Sleeve
Spring
Slot
IDCD291S
IDCD290S
