Vehicle Systems Disassembly & Assembly
Steering Cylinder

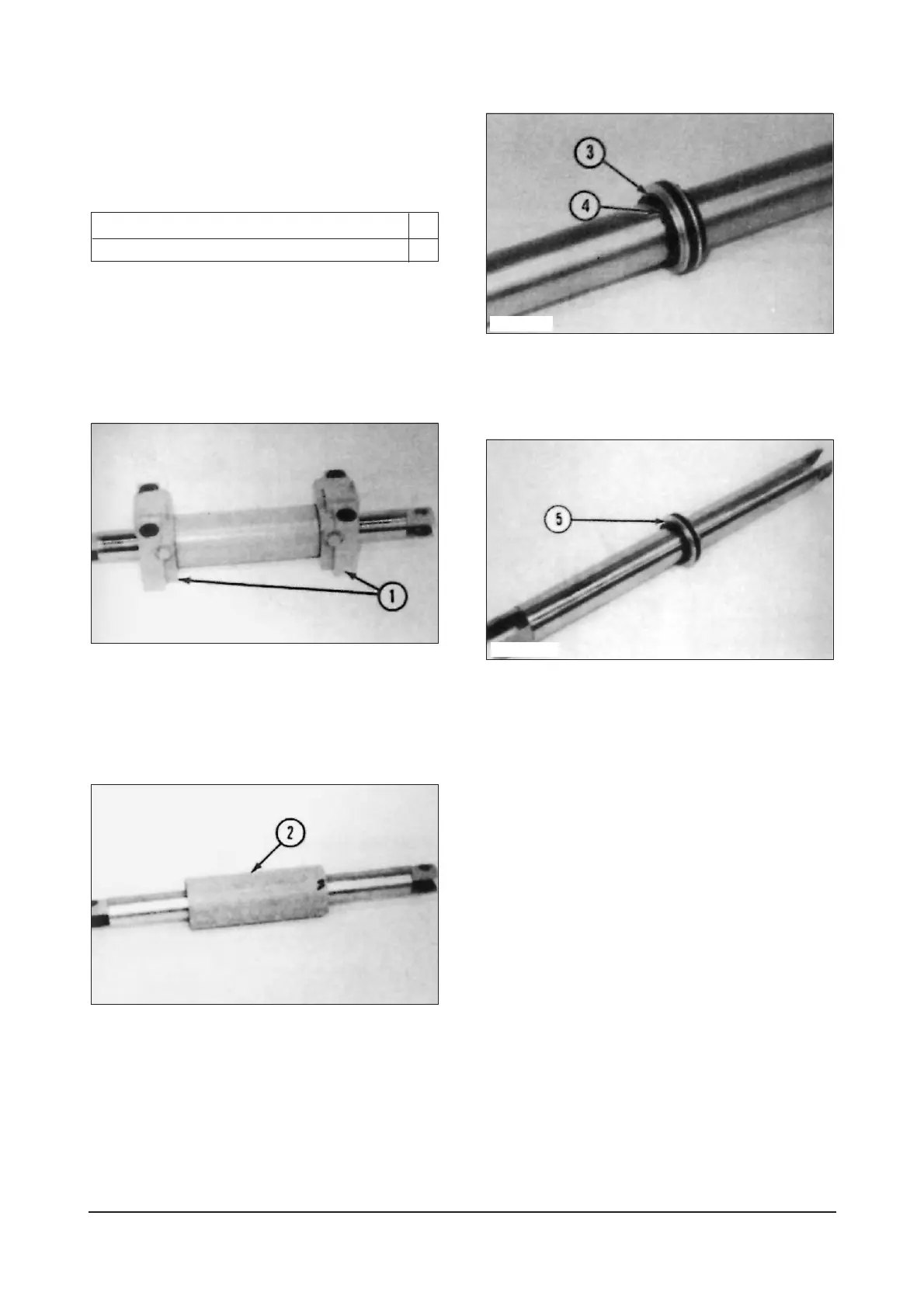

Disassemble Steering Cylinder
NOTE : Steering cylinder has two rods positioned
between the cylinder end caps. These rods are
attached to the cylinder end caps with nuts at each
end. Remove the nuts and rods (A) before removing
the cylinder end caps from the cylinder tube.
1. Put location marks on end caps (1) as to their
position on the steering cylinder tube.
2. Remove end caps (1) from the steering cylinder.
3. Remove cylinder tube (2) from the rod assembly.
4. Use tool (A) to remove retaining rings (4) and
rings (3) from the cylinder rod.
5. Remove piston (5) from the cylinder rod.
Tools Needed A
Pliers 1
39
IDCD264S
IDCD265S
IDCD266S
IDCD267S
