Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly

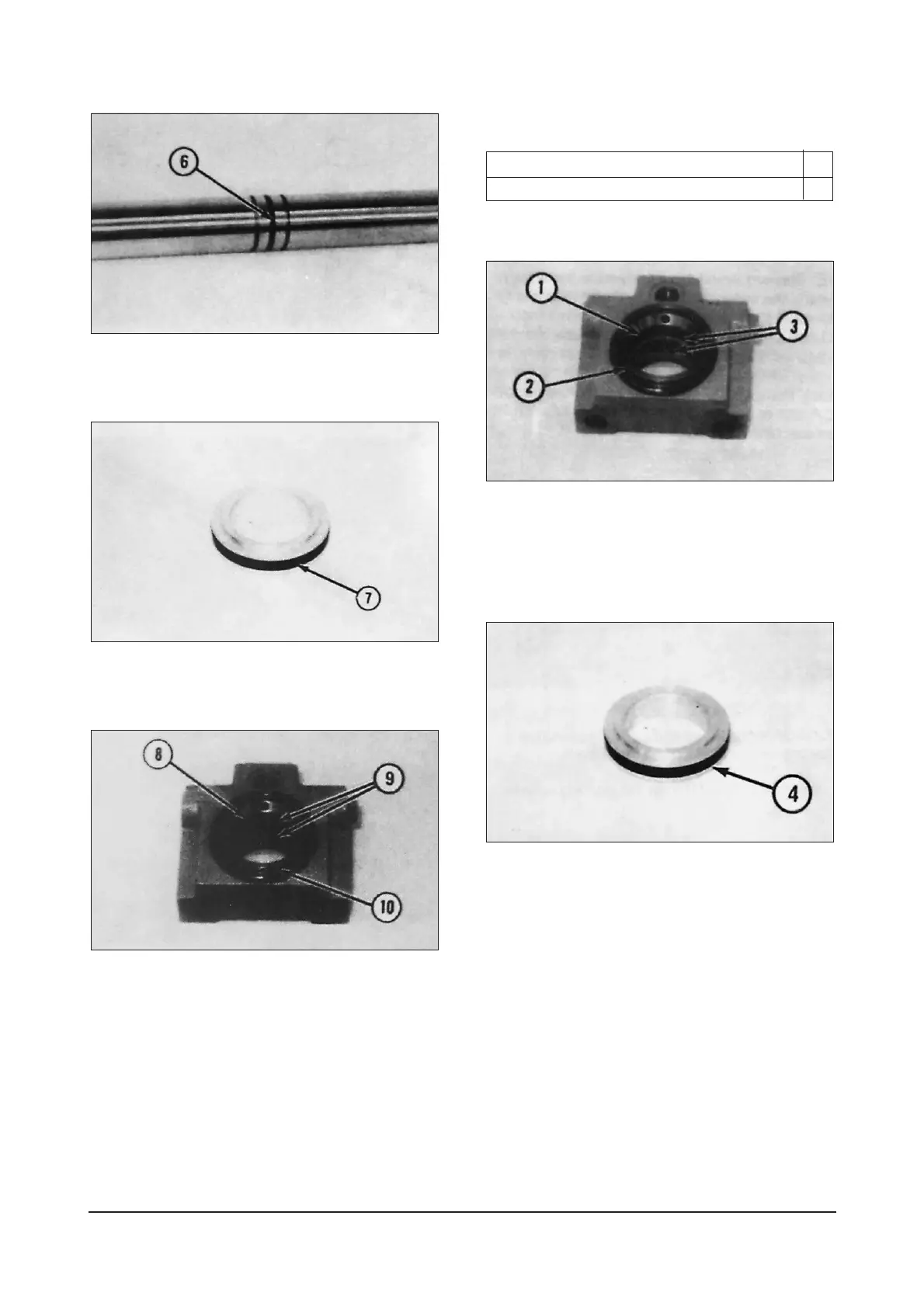

6.
Remove and inspect O-ring seal (6).
7. Remove seal (7) from the piston.
8. Disassemble each end cap as follows ;
a. Remove O-ring seal (10).
b. Remove wear ring (8).
c. Remove u-cup seal (9).
Assemble Steering Cylinder
1. Assemble each end cap as follows ;
a. Install O-ring seal (2).
b. Install wear ring (1).
c. Install u-cup seal (3).
2. Install seal (4) on the piston.
Tools Needed A
Pliers 1
40
IDCD268S
IDCD269S
IDCD270S
IDCD271S
IDCD272S
